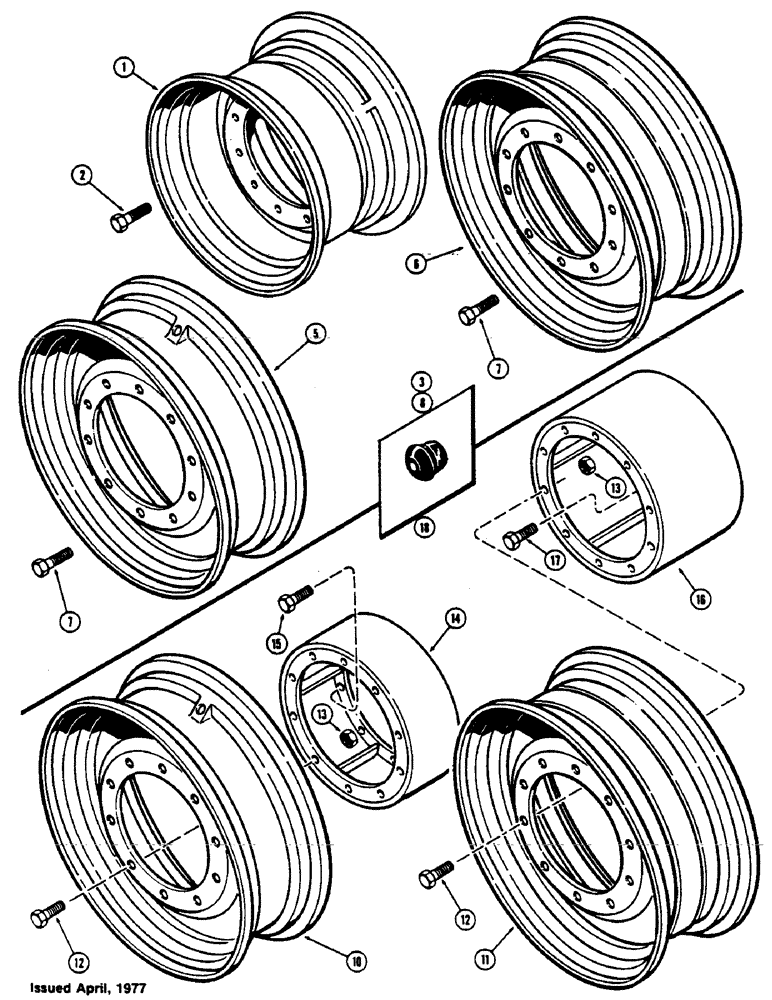

Запчасти Case IH 1175 (140) - REAR WHEELS, STEEL, 34 INCH INTEGRAL (06) - POWER TRAIN

1

A64713

WHEEL - rear, integral (for 23.1 x 34" tire)

2шт.

2

A64714

WHEEL BOLT

BOLT - wheel (3/4 x 1-5/8" N.C.)

20шт.

3

A145052

PLUG

- rim (Used w/tubeless tires)

2шт.

5

A64715

WHEEL - rear, integral (for 15.5 x 38" tire)

2шт.

5

A64716

WHEEL - rear, integral (for 18.4 x 38" tire)

2шт.

6

A64717

WHEEL - rear, integral (for 20.8 x 38" tire) Cannot be used w/dual wheel

2шт.

6

A64718

WHEEL - rear, integral (for 20.8 x 38" tire)

2шт.

7

A64714

WHEEL BOLT

BOLT - wheel (3/4 x 1-5/8" N.C.)

20шт.

8

A145052

PLUG

- rim (Used w/tubeless tires)

2шт.

10

A64715

WHEEL - rear, interal (for 15.5 x 38" tire), dual

2шт.

10

A64716

WHEEL - rear, integral (for 18.4 x 38" tire), dual

2шт.

11

A64718

WHEEL - integral (for 20.8 x 38" tire), dual rear

2шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- outer wheel to spacer, 3/4 x 2" N.C. hex, dual rear

20шт.

13

A141621

NUT

- lock, 3/4" N.C., dual rear wheels

20шт.

14

A64729

SPACER - (9-5/8" wide) (A64718 wheel to cast inner), dual rear

2шт.

14

A64719

COVER ASSY

SPACER - (11-3/8" wide) (A64715 wheel to cast inner or A64718 wheel to steel inner), dual rear

2шт.

14

A64723

SPACER - (12-13/16" wide) (A64716 wheel to cast inner), dual rear

2шт.

15

113-781

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

- 3/4 x 3-1/2" N.C. hex. (w/inner cast wheel), dual rear

20шт.

16

A64726

SPACER - (15-1/2" wide) (A64716 wheel to steel inner), dual rear

2шт.

17

113-747

X

BOLT - 3/4 x 2-1/4" N.C. hex. (w/inner steel wheel), dual rear

20шт.

18

A145052

PLUG

- rim (Used w/tubeless tires), dual rear wheels

4шт.
