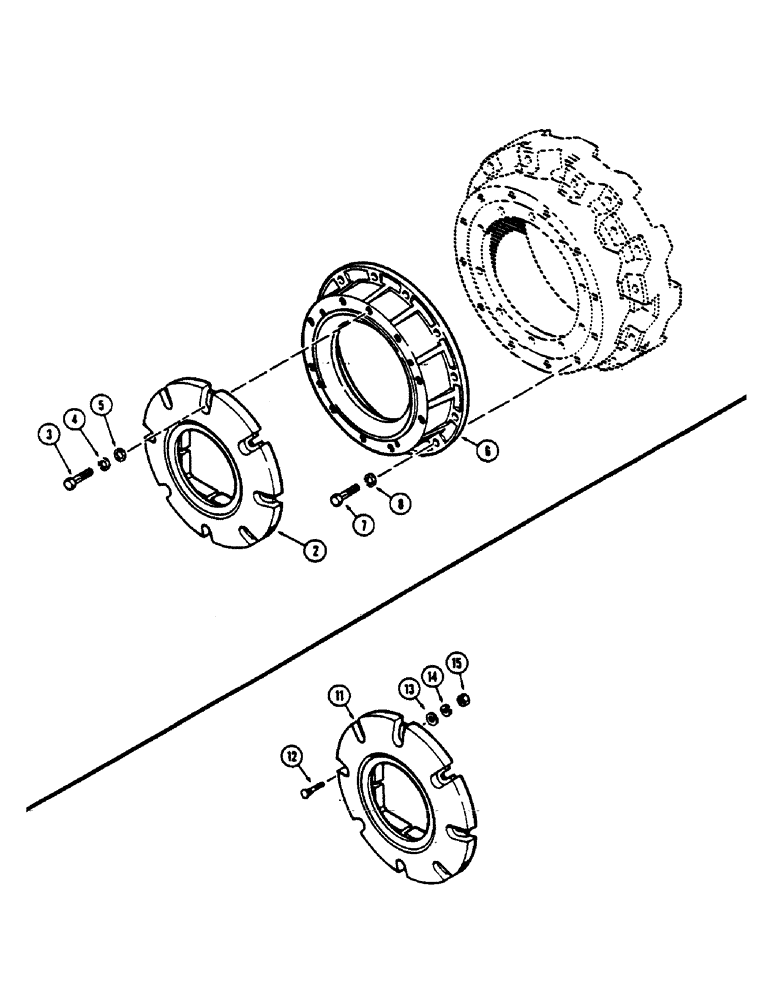

Запчасти Case IH 1175 (138) - REAR WHEEL WEIGHTS, FOR 38 INCH CAST WHEEL (06) - POWER TRAIN

A61651

ATTACHMENT - weight, 1st set (Mach. Item), Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT - (140 lbs.) (Order A61651)

2шт.

3

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8 x 3-1/2" N.C. hex.

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

95-10

WASHER,5/8"

- plain, 11/16 x 1-3/4 x 9/64"

8шт.

6

A61649

SPACER - weight attaching

2шт.

7

113-748

BOLT

- 3/4 x 2-1/2" N.C. hex.

24шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

A33258

BOLT

ATTACHMENT - weight, added set (Mach. Item), Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

WEIGHT - (140 lbs.) (Order A33258)

2шт.

12

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - 5/8 x 4" N.C. rd. hd. sq. nk.

8шт.

13

95-10

WASHER,5/8"

- plain, 11/16 x 1-3/4 x 9/64"

8шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

15

25-1010

NUT,5/8"-11, G5

8шт.
