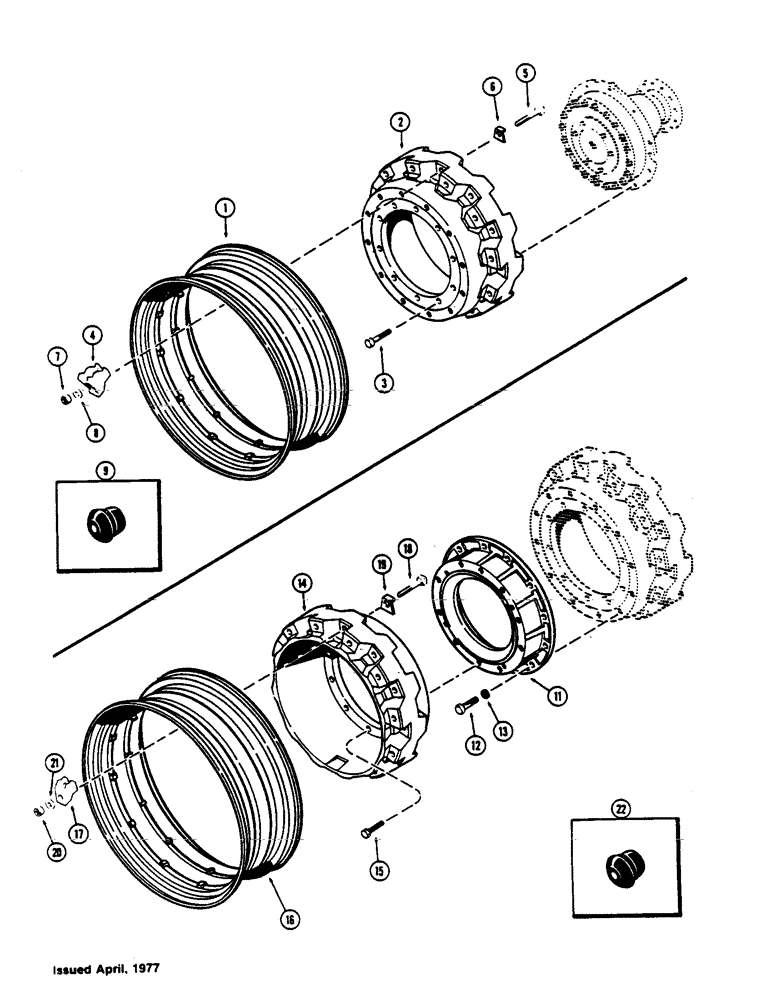

Запчасти Case IH 1175 (136) - REAR WHEELS, CAST, 38 INCH DEMOUNTABLE RIMS (06) - POWER TRAIN

1

A61576

RIM

- rear wheel (for 15.5 x 38" tire)

2шт.

1

A61577

RIM

- rear wheel (for 18.4 x 38" tire)

2шт.

1

A61578

RIM

- rear wheel (for 20.8 x 38" tire)

2шт.

2

A64711

WHEEL - rear

2шт.

3

113-754

BOLT

- wheel, 3/4 x 3" N.C. hex

20шт.

4

A64712

CLAMP

- double, Serial Range: rim-wheel

24шт.

5

A143725

SQUARE BOLT

- clamp, 3/4 x 7" N.C. sq. hd.

24шт.

6

A61974

LOCK WASHER

- lock, clamp bolt

24шт.

7

129-137

NUT,3/4"-10, G5

Clamp (Replaces A76331) 3/4"-10, G5

24шт.

8

A141125

WASHER

- 25/32 x 1-1/4 x 3/16"

24шт.

9

A145052

PLUG

- rim (used w/tubeless tires)

2шт.

11

A61649

SPACER - adapter, dual wheel

2шт.

12

113-748

BOLT

- adapter, 3/4 x 2-1/2" N.C. hex

24шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

14

A64711

WHEEL - rear, dual

2шт.

15

113-748

BOLT

- dual wheel, 3/4 x 2-1/2" N.C. hex

20шт.

16

A61576

RIM

- rear wheel (for 15.5 x 38" tire)

2шт.

16

A61577

RIM

- rear wheel (for 18.4 x 38" tire)

2шт.

16

A61578

RIM

- rear wheel (for 20.8 x 38" tire)

2шт.

17

A57654

CLAMP

- rim

24шт.

18

A143725

SQUARE BOLT

- clamp, 3/4 x 7" N.C. sq. hd.

24шт.

19

A61974

LOCK WASHER

- lock, clamp bolt

24шт.

20

129-137

NUT,3/4"-10, G5

Clamp (Replaces A76331) 3/4"-10, G5

24шт.

21

A141125

WASHER

- 25/32 x 1-1/4 x 3/16"

24шт.

22

A145052

PLUG

- rim (Used w/tubeless tires)

4шт.
