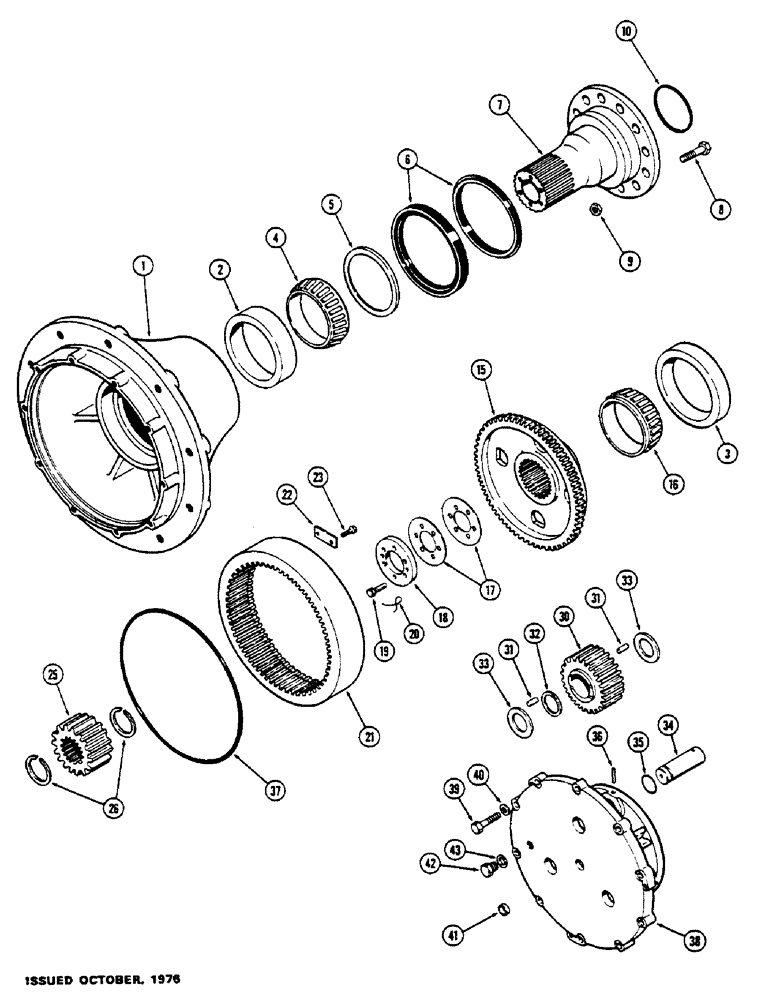

Запчасти Case IH 1175 (128) - PLANETARY ASSEMBLY, FIRST USED TRACTOR SERIAL NUMBER 8715247 (06) - POWER TRAIN

1

A65183

HUB

ASSY. - planetary drive, Includes: Ref. 2 and 3

2шт.

2

L31698

BEARING CUP

CUP - inner bearing (7-3/16" O.D. x 1-5/16" wide)

1шт.

3

A75262

CUP

- outer bearing (7-3/4" O.D. x 1-1/2" wide)

1шт.

4

L31699

TAPERED BEARING

CONE - bearing, hub spindle (1-1/2" wide)

2шт.

5

A75256

RING

- back-up, spindle bearing

2шт.

6

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

- oil spindle

2шт.

7

A65488

SPINDLE - wheel hub

2шт.

8

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- spindle, 3/4 x 2-3/4" N.C. hex.

24шт.

9

129-572

NUT,3/4"-10, G8

24шт.

10

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - spindle to axle housing (3-3/4 x 4 x 1/8")

2шт.

15

A66406

HOLDER

- ring gear, planetary, Includes: Ref. 16

2шт.

16

A75263

CONE

- bearing, ring gear holder (1-13/16" wide)

1шт.

17

A65491

SHIM,.003" Thk

Wheel hub bearing .003" Thk

1шт.

17

A65490

SHIM,.007" Thk

Wheel hub bearing .007" Thk

1шт.

17

A65489

SHIM,.020" Thk

Wheel hub bearing .020" Thk

1шт.

18

A65492

CAP - retainer, wheel hub bearing

2шт.

19

A75268

BOLT

- drilled, 3/8 x 1-1/4" N.C. hex.

12шт.

20

391-629

ELECTRICAL WIRE

WIRE - safety (#16 x 24")

2шт.

21

A65186

GEAR WHEEL

GEAR - ring, planetary (73T)

2шт.

22

A77291

PAWL

RETAINER - ring gear (Replaces A75270)

12шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- 3/8 x 1" N.C. hex

24шт.

25

A65486

GEAR

- sun (23T)

2шт.

26

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, sun gear

4шт.

30

A65187

GEAR

- planet (24T)

6шт.

31

A75274

ROLLER

BEARING - needle roller, planet gear

228шт.

32

A63227

SPACER

- roller bearing

6шт.

33

A63228

WASHER

- retainer, planet gear bearing

6шт.

34

A76344

PIN,40.31mm OD x 122.17mm L

- planet gear

6шт.

35

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - gear pin, 1-5/16 x 1-9/16 x 1/8"

6шт.

36

138-2033

PIN,6.35mm OD x 34.92mm L, Coiled

6шт.

37

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- rear axle housing

2шт.

38

A76342

COVER

CARRIER - planetary

2шт.

39

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- 1/2 x 1-7/8" N.C. hex.

20шт.

40

L30674

WASHER

- carrier bolt, 17/32 x 1 x 1/8"

20шт.

41

41-1016

PLUG,Cup, 1"

- dia. Cup, 1"

2шт.

42

A140222

PLUG

- fill or drain (Replaces A14280)

2шт.

43

A58608

GASKET

- plug

2шт.
