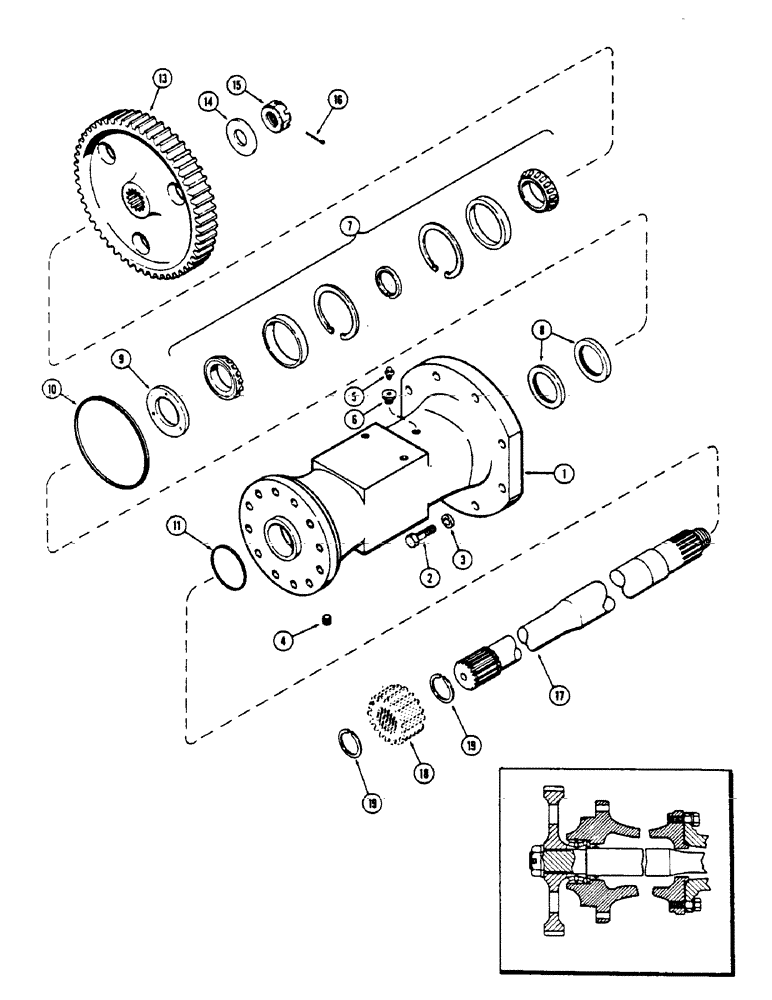

Запчасти Case IH 1175 (126) - REAR AXLE AND HOUSING, FIRST USED TRACTOR SERIAL NUMBER 8715247 (06) - POWER TRAIN

1

A65177

HOUSING - rear axle (Replaces A61607)

2шт.

2

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- 5/8 x 3-1/2" N.C. hex.

16шт.

3

A65165

WASHER - housing bolt, 21/32 x 1-1/8 x 1/4"

16шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- drain, 1/8" P.T. socket

2шт.

5

A12928

BREATHER

- oil, axle housing

2шт.

6

A61613

ADAPTER - breather, 3/4" N.F. x 1/8" P.T.

2шт.

7

A61610

BEARING ASSY. - axle shaft

2шт.

8

A20939

OIL SEAL

SEAL - oil, axle shaft

4шт.

9

A61608

GUIDE

- axle housing

2шт.

10

A61597

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

"O" RING - inner, 8-3/4 x 9 x 1/8"

2шт.

11

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - outer, 3-3/4 x 4 x 1/8"

2шт.

13

A61611

GEAR - final drive (74T)

2шт.

14

A38258

WASHER

- spacer, 1-25/32 x 3-1/4 x 1/4"

2шт.

15

A38259

NUT - slotted, axle shaft, 1-3/4" N.F. hex.

2шт.

16

132-187

COTTER PIN,5/16" x 3"

Pin, Split (Cotter), 5/16" x 3"

2шт.

17

A65485

SHAFT - rear axle

2шт.

18

A65486

GEAR

- sun, planetary (See Figure 128)

2шт.

19

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, sun gear

4шт.
