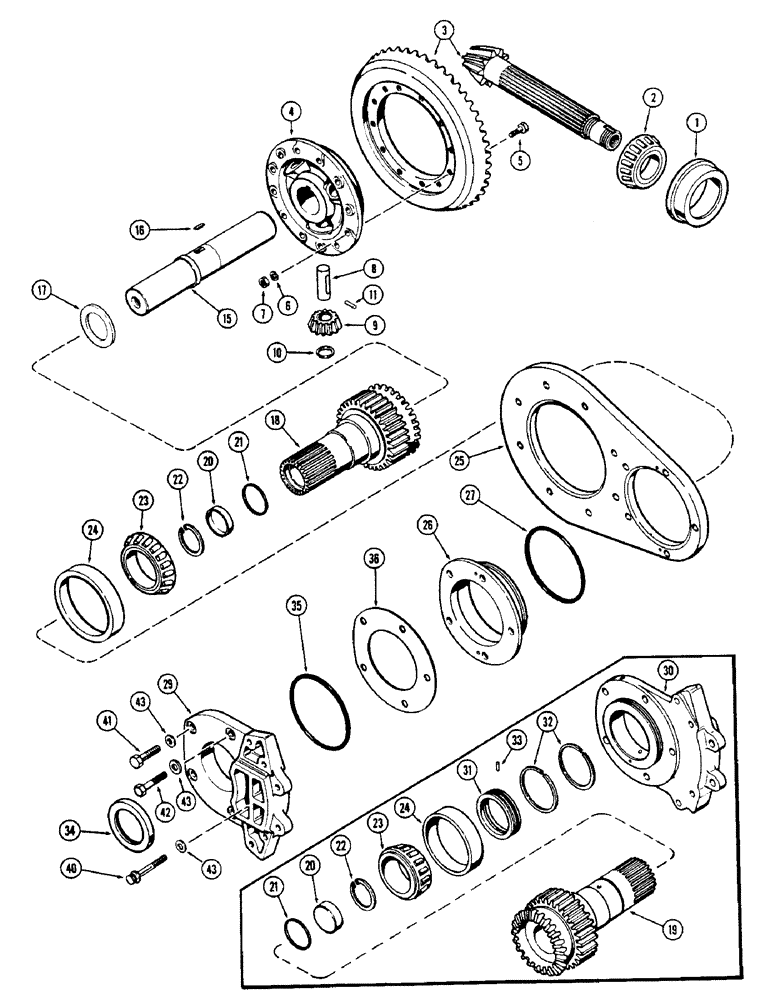

Запчасти Case IH 1175 (119A) - DIFFERENTIAL, USED PRIOR TO TRACTOR SERIAL NUMBER 8715247 (06) - POWER TRAIN

1

A32750

FLANGED BEARING,2.375" ID x 6.002" OD x 1.8125"

CUP - bearing, countershaft

1шт.

2

A32758

ROLLER BEARING,2.375" ID x 1.8125"

CONE - bearing, countershaft

1шт.

3

A62005

COUNTERSHAFT & RING GEAR - matched set

1шт.

4

A61591

WHEEL - center, ring gear

1шт.

5

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- 1/2 x 2-1/4" N.C. hex.

12шт.

6

A37029

WASHER

- 33/64 x 7/8 x 1/8"

12шт.

7

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex.

12шт.

8

A64747

PIN

- gear, differential pinion (bronze)

4шт.

9

A64746

GEAR

- pinion

4шт.

10

A33539

WASHER

- thrust, pinion gear

4шт.

11

138-2019

PIN,5/16" x 7/8", Coiled

4шт.

15

A64461

SHAFT

- differential cross

1шт.

16

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - center wheel, 3/8 x 2-3/4" Woodruff

1шт.

17

A62407

WASHER

- thrust, side gear

2шт.

18

A64750

GEAR

ASSY. - R.H. side (Includes: Ref. 20, 21 and 22)

1шт.

19

A64751

SHAFT ASSY.

GEAR ASSY. - L.H. side (Includes: Ref. 20, 21 and 22)

1шт.

20

41-1040

PLUG,Cup, 2 1/2"

- 2-1/2" cup type

1шт.

21

A61310

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

"O" RING - 2-1/2 ID x 1/16"

1шт.

22

70742

WASHER

2.50", Int, #250

1шт.

23

A28185

ROLLER BEARING,3.375" ID x 1.43"

CONE - bearing, side gear

2шт.

24

A28184

BEARING CUP

CUP - bearing, side gear

2шт.

25

A61598

PLATE - housing support

2шт.

26

A61594

SLEEVE - differential support

2шт.

27

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - sleeve, 6-1/4 x 6-1/2 x 1/8"

2шт.

29

A61311

ADAPTER - R.H. brake assy.

1шт.

30

A62455

ADAPTER - L.H. brake assy.

1шт.

31

A62362

ADAPTER - piston ring, L.H. brake

1шт.

32

A62361

RING

- seal, adapter

2шт.

33

A38-94

PIN - roll, 3/16 x 7/8"

1шт.

34

A57658

OIL SEAL

- brake

2шт.

35

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING - sleeve, 5-5/8 x 5-7/8 x 1/8"

2шт.

36

A60490

SHIM,.003" Thk

Brake housing .003" Thk

1шт.

36

A60491

SHIM,.005" Thk

Brake housing .005" Thk

1шт.

36

A60492

SHIM,.010" Thk

Brake housing .010" Thk

1шт.

40

166-120

SPECIAL BOLT,Flg, 5/8" - 11 x 3 1/4"

SCREW - cap, 5/8 x 3-1/4" N.C. ferry

2шт.

41

A61300

BOLT - 5/8 x 3-1/4" N.C. hex. (Jay-Loc)

1шт.

42

113-651

BOLT

- 5/8 x 3-1/4" N.C. hex.

4шт.

43

A29881

WASHER

- 41/64 x 1-1/16 x 1/16"

10шт.
