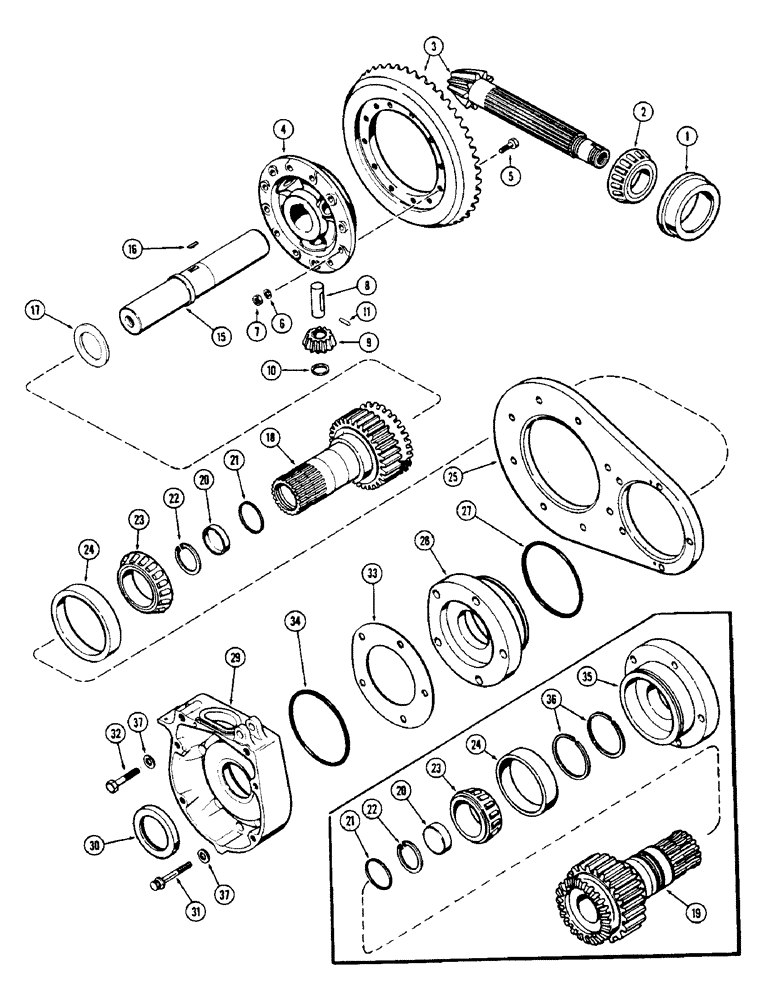

Запчасти Case IH 1175 (118) - DIFFERENTIAL, FIRST USED TRACTOR SERIAL NUMBER 8715247 (06) - POWER TRAIN

1

A32750

FLANGED BEARING,2.375" ID x 6.002" OD x 1.8125"

CUP - bearing, countershaft

1шт.

2

A32758

ROLLER BEARING,2.375" ID x 1.8125"

CONE - bearing, countershaft

1шт.

3

A62005

COUNTERSHAFT AND RING GEAR - matched set

1шт.

4

A61591

WHEEL - center, ring gear

1шт.

5

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- 1/2 x 2-1/4" N.C. hex.

12шт.

6

A37029

WASHER

- 33/64 x 7/8 x 1/8"

12шт.

7

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex

12шт.

8

A64747

PIN

- gear, differential pinion

4шт.

9

A64746

GEAR

- pinion

4шт.

10

A33539

WASHER

- thrust, pinion gear (1 x 2-3/16 x 3/64")

4шт.

11

138-2019

PIN,5/16" x 7/8", Coiled

4шт.

15

A64461

SHAFT

- cross, differential

1шт.

16

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - center wheel, 3/8 x 2-3/4" Woodruff

1шт.

17

A62407

WASHER

- thrust, side gear

2шт.

18

A65168

GEAR ASSY. - side, R.H. (Includes: Ref. 20, 21 and 22)

1шт.

19

A65169

GEAR ASSY. - side, L.H. (Includes: Ref. 20, 21 and 22)

1шт.

20

41-1040

PLUG,Cup, 2 1/2"

- 2-1/2" cup type

1шт.

21

A61310

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

"O" RING - 2-1/2 ID x 1/16"

1шт.

22

34039

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

1шт.

23

A28185

ROLLER BEARING,3.375" ID x 1.43"

CONE - bearing, side gear

2шт.

24

A28184

BEARING CUP

CUP - bearing, side gear

1шт.

25

A61598

PLATE - housing support

2шт.

26

A65172

SLEEVE - support, R.H. brake

1шт.

27

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - support sleeve (6-1/4 x 6-1/2 x 1/8")

2шт.

29

A58455

HOUSING

ASSY. - L.H. brake

1шт.

30

A57658

OIL SEAL

- oil, brake housing

2шт.

31

A65175

BOLT - front, brake housing (5/8 x 4" N.C.)

6шт.

32

A65176

BOLT

- rear, brake housing (5/8" x 4" N.C. w/Jay Lock)

4шт.

33

A60490

SHIM,.003" Thk

Brake housing .003" Thk

1шт.

33

A60491

SHIM,.005" Thk

Brake housing .005" Thk

1шт.

33

A60492

SHIM,.010" Thk

Brake housing .010" Thk

1шт.

34

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING - brake housing, 5-5/8 x 5-7/8 x 1/8"

2шт.

35

A65173

SLEEVE - support, L.H. brake

1шт.

36

A65174

RING

- seal, L.H. side gear

2шт.

37

A64303

WASHER

- housing bolt, 41/64 x 1-1/16 x 1/16"

10шт.
