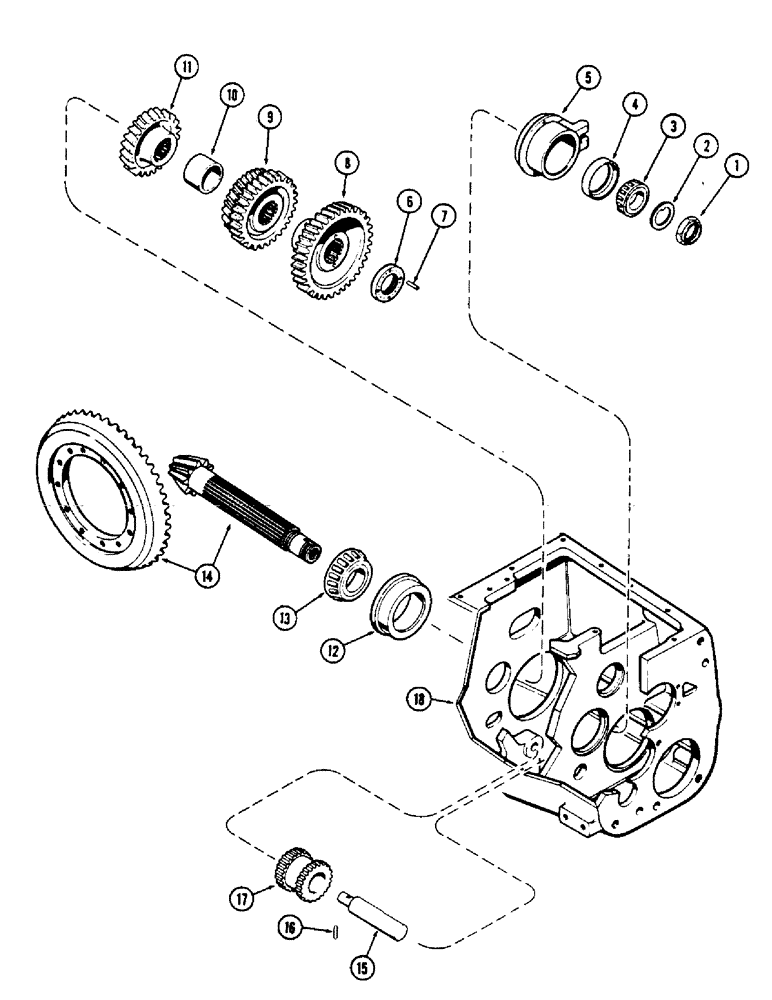

Запчасти Case IH 1175 (116) - COUNTER AND REVERSE IDLER SHAFTS (06) - POWER TRAIN

1

A60019

NUT

- lock, countershaft front bearing

1шт.

2

A28170

WASHER

- thrust, bearing

1шт.

3

A32764

ROLLER BEARING,1.875" ID x 1"

CONE - bearing, countershaft front

1шт.

4

A32763

CUP

- bearing, countershaft front

1шт.

5

A61820

CARRIER

- bearing

1шт.

6

A61115

NUT

- lock, countershaft gear (Replaces A22760)

1шт.

7

138-2053

PIN,1/4" x 1 1/4", Coiled

1шт.

8

A61893

GEAR

- driven, 1st and 5th speed (40T)

1шт.

9

A58146

GEAR

- cluster, 2nd-3rd and 6th-7th speeds

1шт.

10

A57651

BUSHING

SPACER - countershaft gear

1шт.

11

A57445

GEAR

- driven, 4th and 6th speeds (29T)

1шт.

12

A32750

FLANGED BEARING,2.375" ID x 6.002" OD x 1.8125"

CUP - bearing, rear

1шт.

13

A32758

ROLLER BEARING,2.375" ID x 1.8125"

CONE - bearing, rear

1шт.

14

A62005

COUNTERSHAFT AND RING GEAR - matched set

1шт.

15

A62910

SHAFT

- idler, reverse

1шт.

16

138-224

LOCK PIN,5/16" x 3/4", Slotted

PIN, 5/16" x 3/4", Slotted

1шт.

17

A58141

GEAR

ASSY. - reverse idler

1шт.

18

A58971

HOUSING - transmission

1шт.
