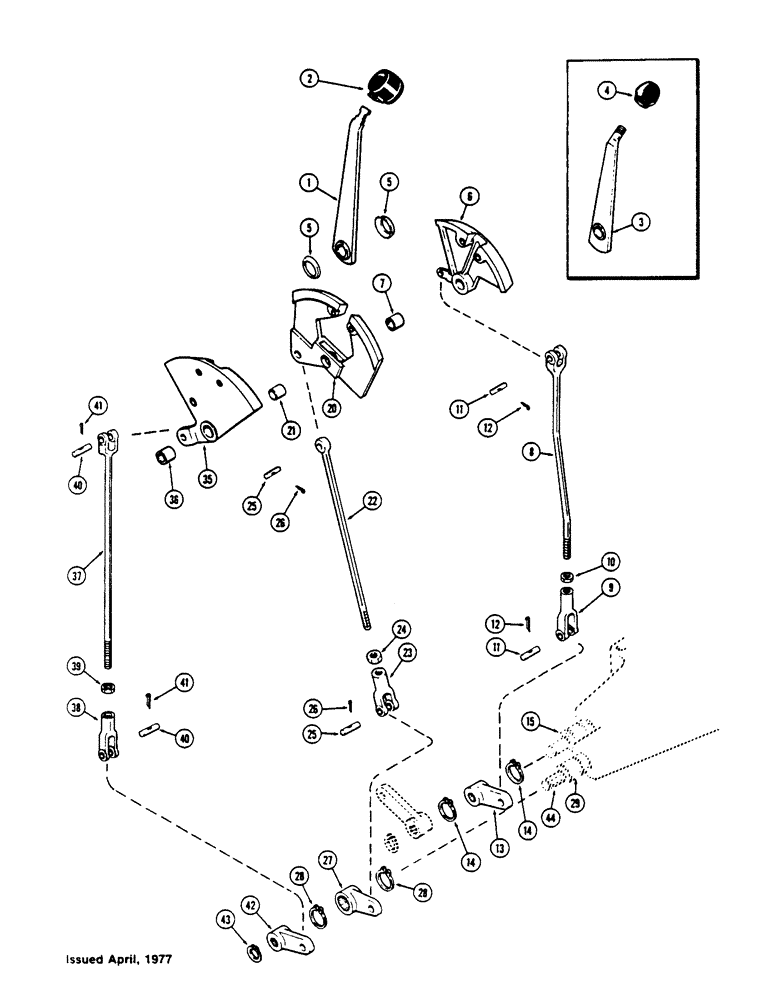

Запчасти Case IH 1175 (109A) - GEAR SHIFT LINKAGE (06) - POWER TRAIN

1

A137816

LEVER

- hand, gear shift

1шт.

2

A137806

KNOB

- hand lever (Rubber)

1шт.

3

A60360

LEVER

- hand, gear shift (Order A137816 lever and A137806 knob)

1шт.

4

A65699

KNOB

- hand lever (Plastic)

1шт.

5

A59662

WASHER

- cup, shift lever

2шт.

6

A61874

QUADRANT

- reverse gear shift, Includes: Ref. 7

1шт.

7

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

8

A60358

ROD

- reverse shift

1шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod, 3/8" N.F.

1шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

11

A59258

PIN

-, Serial Range: rod-quadrant

2шт.

12

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

13

A64936

LEVER

- reverse, cover shaft (Replaces A60369)

1шт.

14

B18208

SNAP RING,#100, Ext

reverse shift lever #100, Ext

1шт.

15

A59032

SHAFT

- external, gear shift

1шт.

20

A61869

QUADRANT

- shift, 1st and 2nd gear, Includes: Ref. 21

1шт.

21

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

- quadrant

1шт.

22

A60389

ROD

- shift, 1st and 2nd gear

1шт.

23

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - shift rod, 3/8" N.F.

1шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

25

A59258

PIN

-, Serial Range: yoke-lever

2шт.

26

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

27

A64936

LEVER

- shift shaft, 1st and 2nd gear (Replaces A60369)

1шт.

28

B18208

SNAP RING,#100, Ext

lever to shaft #100, Ext

2шт.

29

A58245

SHAFT

- external, gear shift lever

1шт.

35

A135170

QUADRANT

- shift lever, 3rd and 4th gear (Replaces A61864), Includes: Ref. 36

1шт.

36

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

37

A59775

ROD

- shift, 3rd and 4th gear

1шт.

38

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - shift rod, 3/8" N.F.

1шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

40

A59258

PIN

- shift rod

2шт.

41

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

42

A64935

LEVER

- cover shaft, 3rd and 4th gear (Replaces A60363)

1шт.

43

A59594

RING

- snap, Serial Range: lever-shaft

1шт.

44

A59591

SHAFT

- internal, gear shift lever

1шт.
