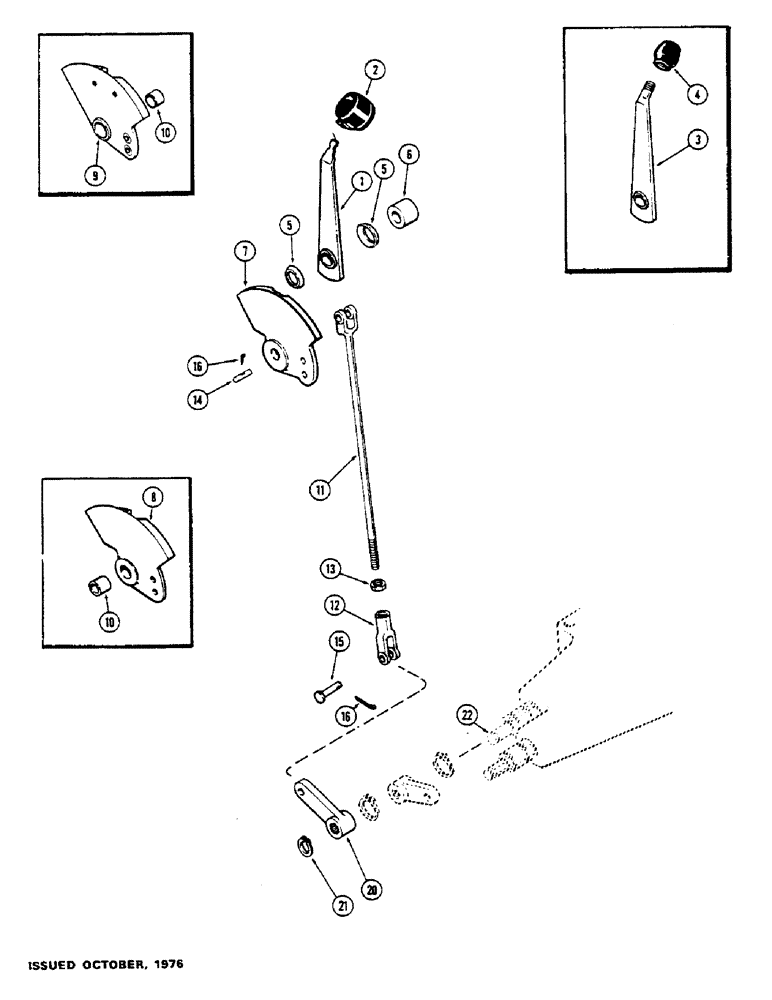

Запчасти Case IH 1175 (108) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A137815

LEVER

- hand, range shift

1шт.

2

A137806

KNOB

- hand lever (Rubber)

1шт.

3

A59661

LEVER

- hand, range shift (Order 1-A137815 lever and 1-A137806 knob)

1шт.

4

A65699

KNOB

- hand lever (Plastic)

1шт.

5

A59662

WASHER

- cup, shift lever

2шт.

6

A59664

SPACER

- range shift lever

1шт.

7

A143835

QUADRANT

- range shift lever (Replaces A135383 and A61862)

1шт.

8

A135383

QUADRANT

- range shift lever (Order A143835) (1st used trac. ser. no. 8753836)

1шт.

9

A61862

QUADRANT

- range shift lever (Order A143835) to trac., Includes: Ref. 10, Serial Range: -8753836

1шт.

10

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

11

A59775

ROD

- range shift

1шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - shift rod, 3/8" N.F.

1шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

14

A59258

PIN

-, Serial Range: rod-quadrant

1шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

16

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

20

A59666

LEVER

- shift, cover shaft

1шт.

21

D32101

SNAP RING,#62, Ext

Ring, Snap, , shaft lever (replaces A59594) #62, Ext

1шт.

22

A59592

SHAFT

- internal, range shift

1шт.
