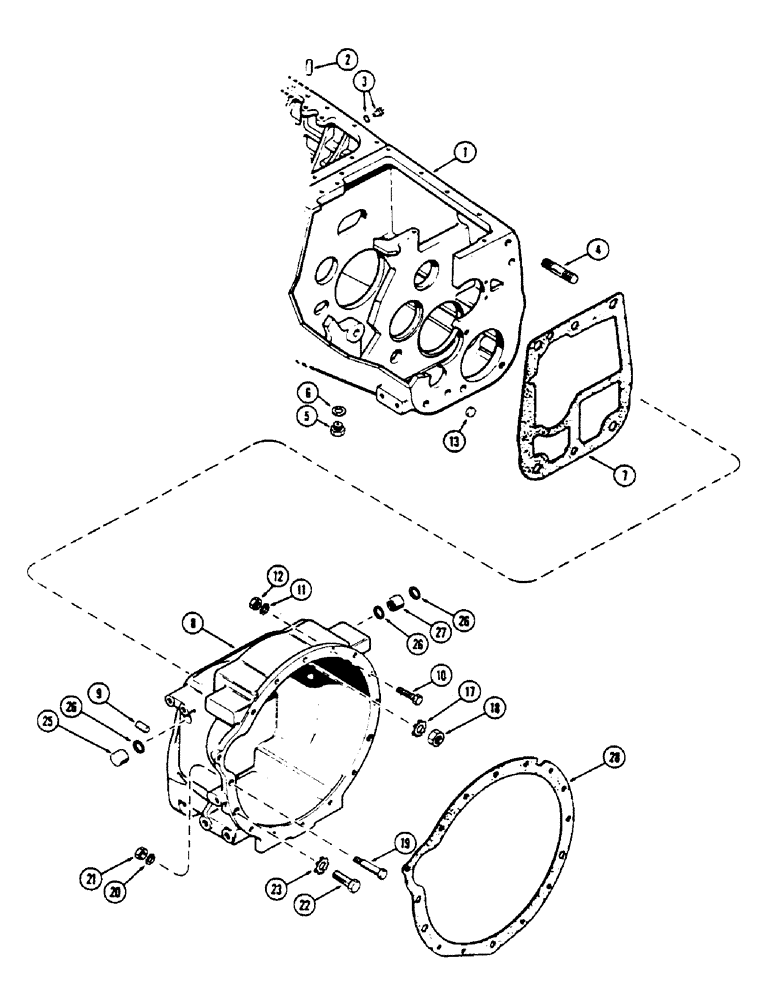

Запчасти Case IH 1175 (102) - CLUTCH AND TRANSMISSION HOUSINGS (06) - POWER TRAIN

1

A58971

HOUSING - transmission

1шт.

2

A7077

DOWEL

PIN - dowel (1/2" x 1-3/8")

2шт.

3

A58420

GAUGE

- sight, oil level

2шт.

4

A7073

STUD

- clutch to trans. housing (7/8" N.F. x 4")

4шт.

5

A140222

PLUG

- drain, trans. case (3/4" N.F.) (Replaces A14280)

3шт.

6

A58608

GASKET

- drain plug (49/64 x 1 x 1/16")

3шт.

7

A58973

GASKET

- clutch to trans. housing

1шт.

8

A62485

HOUSING - clutch

1шт.

9

A28269

PIN

- dowel (3/4" x 1-1/4")

2шт.

10

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

8шт.

10

113-465

BOLT

- 1/2 x 2" N.C. hex

2шт.

10

166-89

12 PT SCREW,1/2" - 13 x 2", Gr 8

BOLT - 1/2 x 2" N.C. ferry hd. cap (top 3 holes)

3шт.

10

113-2417

BOLT

- 1/2 x 2-1/2" N.C. hex

2шт.

11

A34650

LOCK WASHER

- lock (1/2" ext. Shakeproof)

1шт.

12

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex.

1шт.

13

A58620

PLUG,Cup, 3/4", Stainless

- cup (3/4" O.D.)

1шт.

17

A57961

LOCK WASHER

- lock (7/8" ext. Shakeproof)

4шт.

18

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex.

4шт.

19

A61040

STEP BOLT

BOLT - shoulder (1/2 x 3" N.C. hex.)

1шт.

19

A61041

STEP BOLT

BOLT - shoulder (1/2 x 2-3/16" N.C. hex.)

1шт.

20

A34650

LOCK WASHER

- lock (1/2" ext. Shakeproof)

2шт.

21

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex.

2шт.

22

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- 3/4 x 2-1/4" N.C. hex.

2шт.

23

A34651

LOCK WASHER

- lock (3/4" ext. Shakeproof)

2шт.

25

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle, throwout shaft (closed)

1шт.

26

A76307

OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk

- oil, throwout shaft (Replaces A28211)

3шт.

27

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle, throwout shaft

2шт.

28

A58139

GASKET

- clutch, Serial Range: housing-block

1шт.
