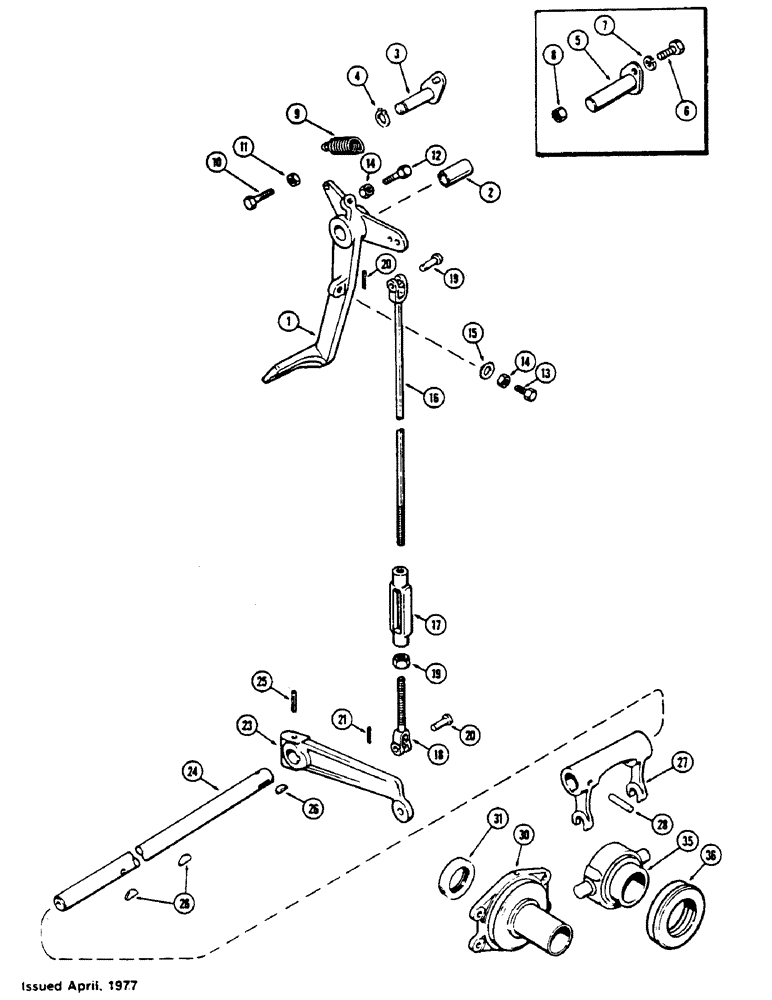

Запчасти Case IH 1175 (100) - CLUTCH PEDAL AND LINKAGE (06) - POWER TRAIN

1

A60300

PEDAL

ASSY. - foot clutch, Includes: Ref. 2

1шт.

2

A59475

BUSHING

- pedal

1шт.

3

A143472

SHAFT

- pivot, clutch pedal

1шт.

4

A33531

SNAP RING,#75, Ext

Ring, Snap, , pivot shaft #75, Ext

1шт.

5

A60305

SHAFT

- pivot, clutch pedal (Order 1-A143472 and 1-A33531)

1шт.

6

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

9

A59470

SPRING

- return, clutch pedal

1шт.

10

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Anchor Hex, 3/8"-16 x 1 3/4", G5

1шт.

11

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

2шт.

12

A59472

BOLT

- stop, clutch pedal

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex

2шт.

15

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

16

A60310

LINK

- upper, clutch control (Replaces A60312)

1шт.

17

A60303

TURNBUCKLE

- adjusting, clutch rod

1шт.

18

A60313

LINK

- lower, clutch adjusting

1шт.

19

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

20

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

21

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

23

A59191

LEVER

- release shaft

1шт.

24

A62484

SHAFT

- clutch release

1шт.

25

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

26

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Yoke and lever #15, 1/4" x 1"

3шт.

27

A58980

YOKE

- clutch release sleeve

1шт.

28

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

1шт.

30

A57698

CARRIER

ASSY. - bearing, drive shaft, Includes: Ref. 31

1шт.

31

A60076

OIL SEAL

- oil

1шт.

35

A57997

CARRIER

SLEEVE ASSY. - clutch release, Includes: Ref. 36

1шт.

36

A58982

BALL BEARING,2.5" ID x 4.062" OD x 0.885"

BEARING - clutch release

1шт.
