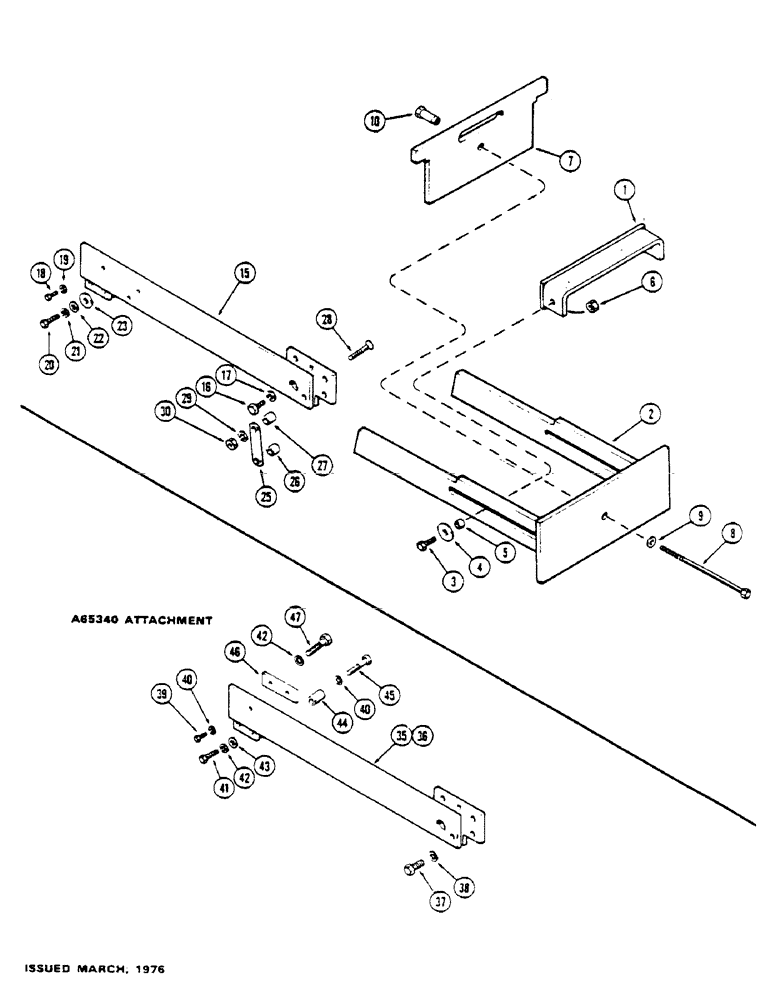

Запчасти Case IH 1175 (098) - FRONT END WEIGHT AND SIDE RAILS (06) - POWER TRAIN

1

A64944

BRACE

FRAME - adapter

1шт.

2

A61331

FRAME - front weight mounting

1шт.

3

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

4

A61334

WASHER - weight frame bolt

2шт.

5

A61567

SPACER

- guide, weight frame (Replaces A62109)

2шт.

6

25-1012

NUT,3/4"-10, G5

2шт.

7

A61345

WEIGHT - front, add on (75 lbs. each) (Mach. Item)

1шт.

8

A61342

BOLT - 1/2 x 5" N.C. hex. (for 1 - 7 wghts.)

1шт.

9

A61341

WASHER

- front weight clamp

1шт.

10

A61338

NUT

- tube, weight bolt

1шт.

15

A61346

RAIL - side, R.H. (3/4" thick)

1шт.

15

A61347

RAIL - side, L.H. (3/4" thick)

1шт.

16

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Side rails Hex, 3/4"-10 x 2", G5

8шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Side rails 3/4"

8шт.

18

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Side rails Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

side rails 1/2"

2шт.

20

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Side rails Hex, 5/8"-11 x 3", G5

4шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Side rails 5/8"

4шт.

22

195-2097

WASHER,15/16" x 1 3/4" x .083"

- 15/16 x 1-3/4" x 14 ga., side rails

4шт.

23

195-541

WASHER,5/8", SAE

- 21/32 x 1-5/16 x 3/32", side rails

4шт.

25

A61336

STRAP

- clamp, front weight frame, side rails

2шт.

26

A61567

SPACER

- guide (13/16" high) (Replaces A62109), side rails

2шт.

27

A61566

SPACER - guide (1-1/2" high) (Replaces A62110), side rails

2шт.

28

19-1264

PLOW BOLT

BOLT - plow, 3/4 x 4" N.C. sq. neck, side rails

4шт.

29

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Side rails 3/4"

4шт.

30

25-1012

NUT,3/4"-10, G5

Side rails 3/4"-10, G5

4шт.

A65340

ATTACHMENT - side rail (1/2" thick rails) (Mach. Item), Includes: Ref. 35 - 47

1шт.

35

NSS

NOT SOLD SEPARAT

RAIL - side, R.H. (1/2" thick)

1шт.

36

NSS

NOT SOLD SEPARAT

RAIL - side, L.H. (1/2" thick)

1шт.

37

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Side rails Hex, 3/4"-10 x 2", G5

8шт.

38

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Side rails 3/4"

4шт.

39

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Side rails Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Side rails 1/2"

2шт.

41

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Side rails Hex, 5/8"-11 x 2 1/2", G5

4шт.

42

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Side rails 5/8"

4шт.

43

A64699

SPACER - strap, step adaptor, side rails

2шт.

44

A64735

SPACER - upper, step adaptor (11/16" I.D. x 1-1/8" O.D. x 1-1/2" high), side rails

2шт.

45

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- 1/2 x 3-1/4" N.C. hex. (L.H. side w/step), rails

2шт.

46

A64699

SPACER - strap, step adaptor, side rails

1шт.

47

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(LH side w/step), rails Hex, 5/8"-11 x 3 1/4", G5

4шт.
