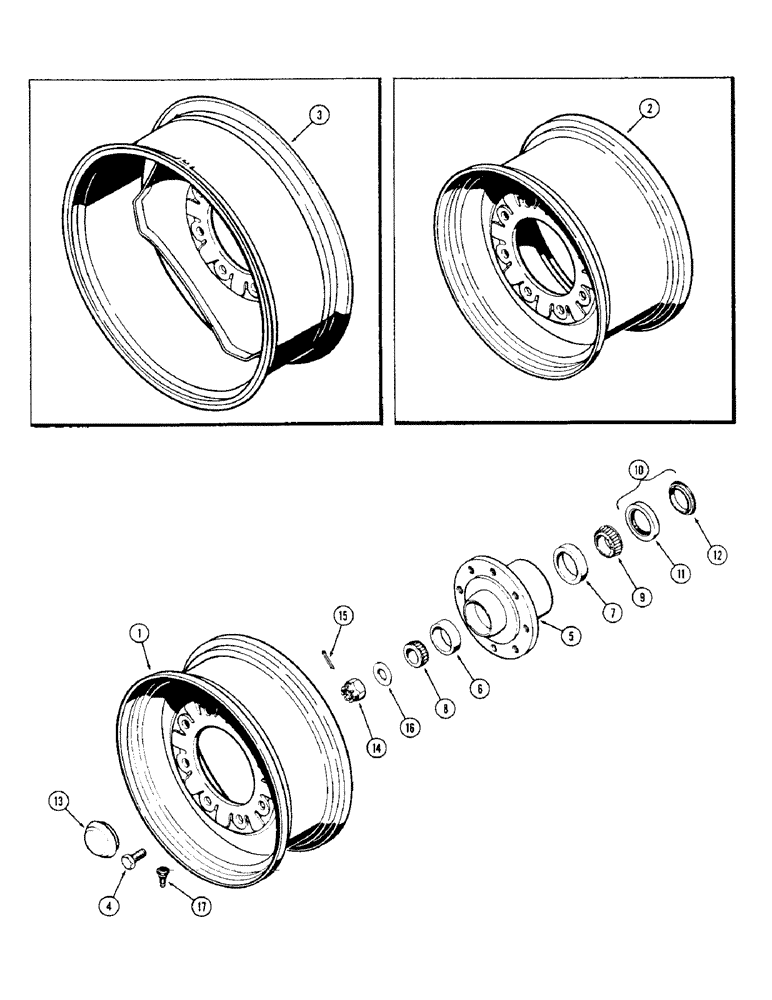

Запчасти Case IH 1175 (096) - FRONT WHEEL AND HUB, 8 BOLT HUB (06) - POWER TRAIN

1

A61571

WHEEL

- front (5.50 x 16 rim 1-1/4" offset) (Order A39117)

2шт.

2

A61570

WHEEL

- front (W 8 L-16 rim 1-1/4" offset)

2шт.

3

A61574

WHEEL

- front (W7 L-20 rim 1-1/4" offset)

2шт.

4

A62567

WHEEL BOLT

BOLT - wheel to hub (5/8" N.F. x 1-3/8")

16шт.

5

A51157

HUB

- front wheel

2шт.

6

A27631

CUP

- outer bearing

2шт.

7

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing

2шт.

8

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing

2шт.

9

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing

2шт.

10

A57250

OIL SEAL

KIT - oil, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - inner

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - outer

1шт.

13

A29425

CAP

- hub

2шт.

14

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - slotted, 1-1/8" N.F. hex.

2шт.

15

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

16

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- spindle (1-1/8 x 2 x 3/16")

2шт.

17

A38261

VALVE

- tubeless tire

2шт.
