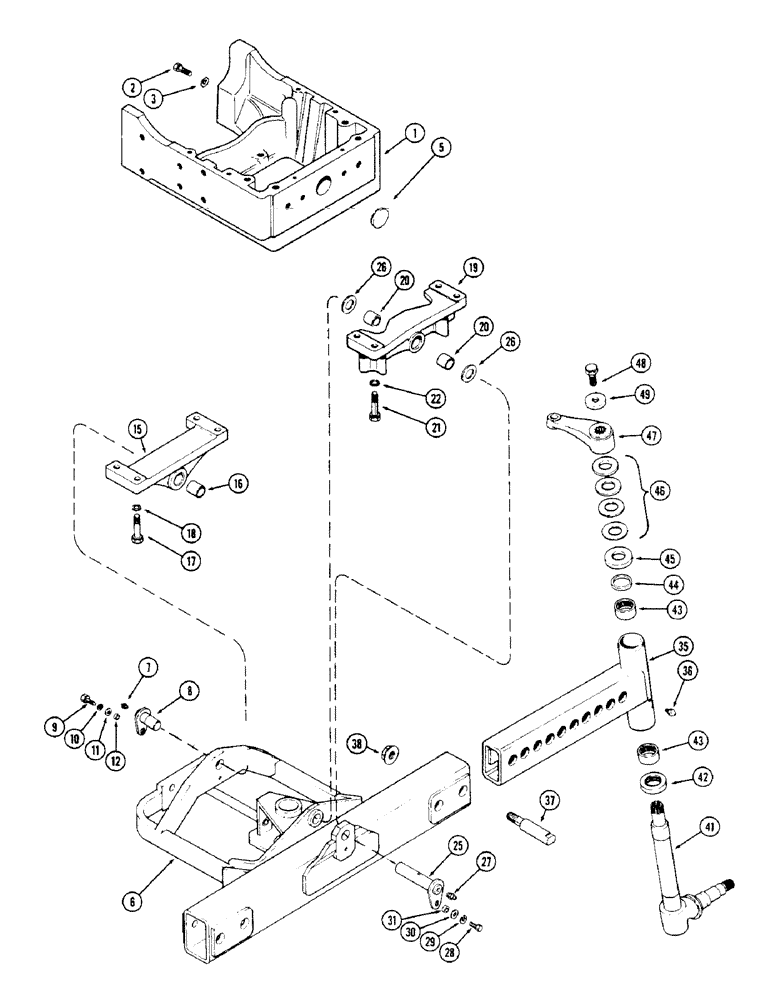

Запчасти Case IH 1175 (091A) - ADJUSTABLE FRONT AXLE, USED TRACTOR SERIAL NUMBERS 8727601 TO 8736747 (06) - POWER TRAIN

1

A59158

SUPPORT

- front axle

1шт.

2

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

3

A34651

LOCK WASHER

- lock, 3/4"

4шт.

5

205-69

PLUG - button, 2-1/4" dia.

1шт.

6

A65675

AXLE

ASSY. - center section, Includes: Ref. 7 - 12

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

8

A59628

PIN

- pivot, rear support

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

A37627

WASHER

- 13/32 x 1-1/2 x 3/16"

1шт.

12

A59660

SPACER

- pivot pin

1шт.

15

A59614

SUPPORT

ASSY. - rear, axle pivot, Includes: Ref. 16

1шт.

16

A59615

BUSHING,31.81mm ID x 38.2mm OD x 38.3mm L

- pivot

1шт.

17

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

18

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

19

A66039

SUPPORT

ASSY. - front, axle pivot (Replaces A62028), Includes: Ref. 20

1шт.

20

A59613

BUSHING,31.7mm ID x 38.18mm OD x 32mm L

- pivot

1шт.

21

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

22

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

25

A64571

PIN ASSY.

PIN - pivot, front axle

1шт.

26

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- thrust, pivot pin (1-1/4 x 2-3/16 x 1/8")

2шт.

27

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

A37627

WASHER

- 13/32 x 1-1/2 x 3/16"

1шт.

31

A59660

SPACER

- pivot pin

1шт.

35

A65652

SHAFT

AXLE - end section, R.H. (10 holes)

1шт.

35

A65653

SHAFT

AXLE - end section, L.H. (10 holes)

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

37

A65651

STEP BOLT

BOLT - shoulder, end to center section

4шт.

38

A65435

LOCK NUT

- 7/8" hex., flanged

4шт.

41

A62915

SPINDLE

- front wheel

2шт.

42

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, spindle lower

2шт.

43

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, spindle

4шт.

44

A57273

OIL SEAL

- oil, upper

2шт.

45

A7849

GUARD

SHIELD - dust, spindle upper

2шт.

46

A24639

SHIM,.1345" Thk

Spindle (#10 gauge) .1345" Thk

1шт.

46

A24642

SHIM,.0598" Thk

Spindle (#16 gauge) .0598" Thk

1шт.

46

A24643

SHIM,.0359" Thk

Spindle (#20 gauge) .0359" Thk

1шт.

46

A24645

SHIM,.0149" Thk

Spindle (#28 gauge) .0149" Thk

1шт.

47

A64574

ARM

- steering, R.H.

1шт.

47

A64575

ARM

- steering, L.H.

1шт.

48

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- 3/4 x 1-3/4" N.C. hex.

1шт.

49

A65598

WASHER

- spindle, 25/32 x 2-1/2 x 5/16"

2шт.
