Запчасти Case IH 1170 (120) - POWER BRAKE VALVE (07) - BRAKES

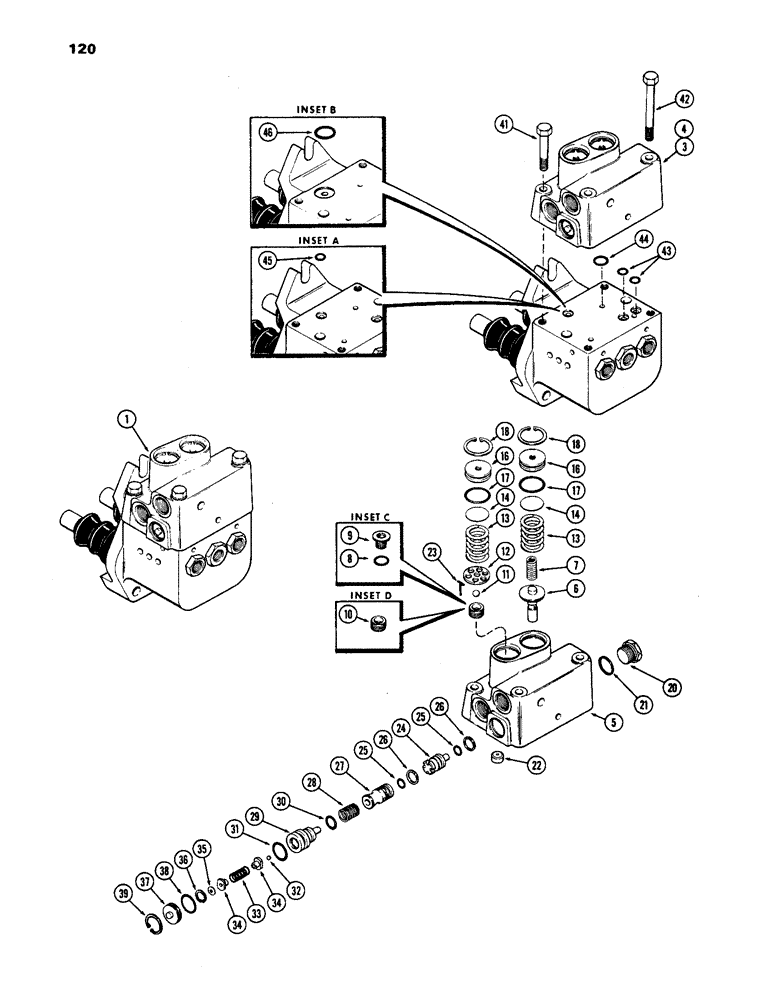

Схема запчастей Case IH 1170 - (120) - POWER BRAKE VALVE (07) - BRAKES
6
31
7
21
20
22
3
42
44
13
12
4
16
14
30
43
37
9
17
27
39
10
1
32
33
8
18
34
25
24
11
23
34
45
41
35
26
17
28
36
25
29
26
38
5
14
16
46
18
13

Артикул

Название

Примечание

Количество

1

A62076

SPARE PART

VALVE ASSY. - brake, Includes: Ref. 2 - 46

1шт.

2

A62075

VALVE

ASSY. - master cylinder (See figure 122) (See ref. nos. 43 thru 46)

1шт.

3

A62431

COVER

ASSY. - power brake valve (see inset C) (w/9/16" N.F. relief valve seat)

1шт.

4

A62021

COVER

ASSY. - power brake valve (see inset D) (w/5/8" N.F. relief valve seat), Includes: Ref. 5 - 39

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - valve cover (Order A62021 or A62431)

1шт.

6

A62837

SPOOL

- pressure influx (Replaces A62020)

1шт.

7

A62019

SPRING - nest pressure influx

1шт.

8

A62433

SEAT

- pressure relief valve (See Inset C) (9/16" - 18 N.f. threads)(used w/A62431 cover)

1шт.

9

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

"O" RING - 1/2 x 5/8 x 1/16" (See inset C) (used w/A62433 relief valve seat)

1шт.

10

A59978

SEAT - pressure relief valve (see inset D) (5/8" - 18 N.F. threads)(used w/A62021 cover)

1шт.

11

211-9

BALL,5/16" Dia

- steel, 5/16"

1шт.

12

A59979

WASHER

- relief valve

1шт.

13

A59980

SPRING

- pressure

2шт.

14

A60655

SHIM,.010" Thk

Relief valve .010" Thk

1шт.

16

A59981

PLUG

- pressure

2шт.

17

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - 15/16 x 1-1/8 x 3/32"

2шт.

Part of power brake valve repair kit P/N A43709

1шт.

18

A36277

SNAP RING,1.125", Int, #112

2шт.

20

A61801

PLUG ASSY. - pressure regulator, Includes: Ref. 21

1шт.

22

A59969

PLUG

- orifice

1шт.

23

A62903

ELECTRICAL WIRE

WIRE - orifice reducing

1шт.

24

A59977

PISTON

- power assist

1шт.

25

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

26

A59951

RING

- seal

2шт.

Part of power brake valve repair kit P/N A43709

1шт.

27

A62833

SPOOL

- pressure regulating (Replaces A61800)

1шт.

28

A59975

SPRING

- spool, 43/64" free length

1шт.

29

A61514

SPOOL

- pressure release

1шт.

30

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - 7/16 x 5/8 x 3/32"

1шт.

Part of power brake valve repair kit P/N A43709

1шт.

31

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - 11/16 x 7/8 x 3/32"

1шт.

Part of power brake valve repair kit P/N A43709

1шт.

32

211-4

BALL

- pressure control, 5/32"

1шт.

33

A61515

SPRING - pressure control

1шт.

34

A61516

WASHER - spring

2шт.

35

A61517

SHIM - pressure relief, 1/8 x 15/32 x 1/64"

1шт.

36

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

1шт.

37

A60652

PLUG

- pressure control

1шт.

38

D32114

O-RING,0.75" ID x 0.875" OD

"O" RING - 3/4 x 7/8 x 1/16"

1шт.

Part of power brake valve repair kit P/N A43709

1шт.

39

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , plug 0.875", Int, #87

1шт.

41

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

42

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16 x 3-1/4" N.C. hex.

2шт.

43

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of power brake valve repair kit P/N A43709

1шт.

44

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

"O" RING - 1/2 X 5/8 X 1/16"

1шт.

Part of power brake valve repair kit P/N A43709

1шт.

45

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk (See inset A & Ref 46 before ordering)

1шт.

Part of power brake valve repair kit P/N A43709

1шт.

46

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

"O" RING 3/4 x 7/8 x 1/16" (see inset B & ref. 45 before ordering)

1шт.

Part of power brake valve repair kit P/N A43709

1шт.

A43709

SEAL

REPAIR KIT - power brake valve cover, Includes: Ref. 17, 21, 25, 26, 30, 31, 38, 43 thru 46

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 3/32"

1шт.

Part of power brake valve repair kit P/N A43709

1шт.
