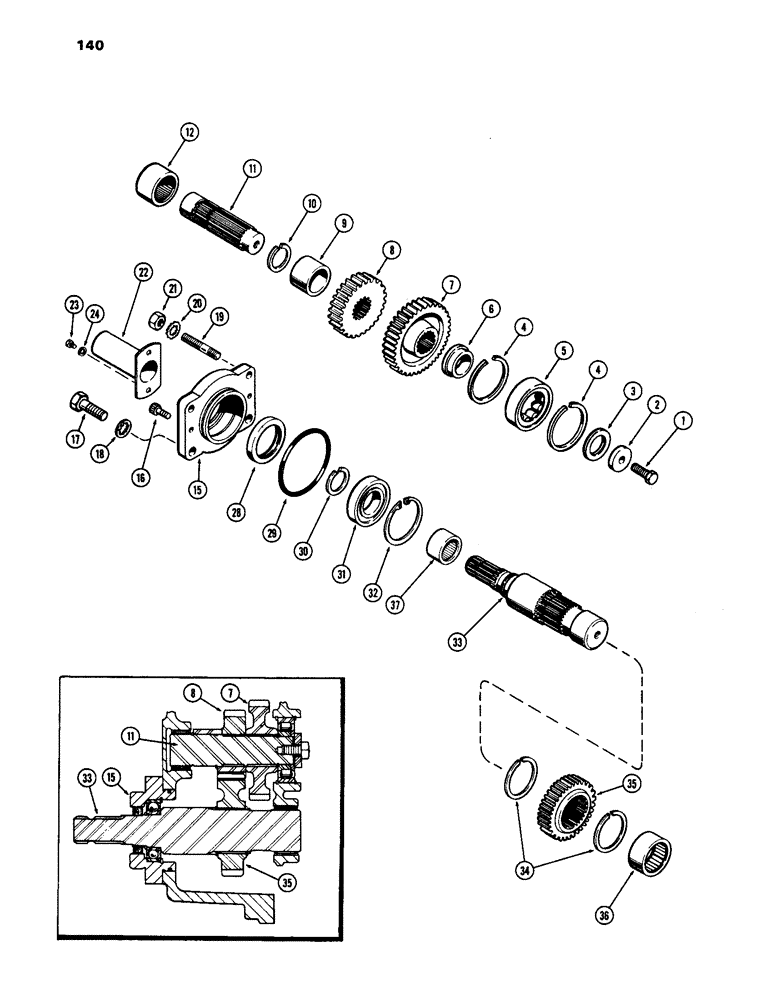

Запчасти Case IH 1170 (140) - P.T.O. OUTPUT AND IDLER SHAFTS, SINGLE SPEED (06) - POWER TRAIN

1

121-415

BOLT,Hex, 1/2" x 1"

- 1/2 x 1" N.C. hex., Jay-lok

1шт.

2

A57462

WASHER

- retaining, 2nd idler shaft

1шт.

3

A57509

PLATE

- inner race

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

NAP RING - 2nd idler gear

2шт.

5

A32423

BEARING ASSY

BEARING - outer race, front

1шт.

6

A57510

BEARING CONE,1.5748" ID x 2.245" OD x 0.74"

BEARING - single rib inner race

1шт.

7

A32408

GEAR

- driven, 2nd idler (36 teeth)

1шт.

8

A58986

GEAR

- driver, 2nd idler (28 teeth)

1шт.

9

58207

SPACER - idler; shaft

1шт.

10

A7339

RING

SNAP RING - idler shaft, external

1шт.

11

A58203

SHAFT

- 2nd idler

1шт.

12

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, idler shaft, 1-3/4 x 2-1/8 x 1"

1шт.

15

A62389

CARRIER - bearing, output shaft (Replaces A59000)

1шт.

16

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - 3/8 x 1" N.C. ferry hd. cap

2шт.

17

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex.

2шт.

18

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

19

A58195

STUD

- 5/8" N.C. x 3-1/2"

2шт.

20

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

21

25-1010

NUT,5/8"-11, G5

2шт.

22

A32456

GUARD - output shaft

1шт.

23

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

28

A57708

SEAL

- oil, output shaft (1-3/4 x 2-1/2 x 1/2")

1шт.

29

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - carrier, 4 x 4-1/4 x 1/8"

1шт.

30

A27085

RING

SNAP RING - rear, external

1шт.

31

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, rear, 1-49/64 x 3-11/32 x 3/4"

1шт.

32

A57921

SNAP RING,3.346", Int, #334

Ring, Snap, , carrier 3.346", Int, #334

1шт.

33

A59026

SHAFT

- output

1шт.

34

A58234

SNAP RING,#237, 2.295", Ext

- shaft

2шт.

35

A59021

GEAR - output (32 teeth)

1шт.

36

A58197

NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"

BEARING - needle, output shaft

1шт.

37

A32419

SLEEVE CYLINDER

SLEEVE - oil seal, 1-5/8 x 1-3/4 x 5/8"

1шт.
