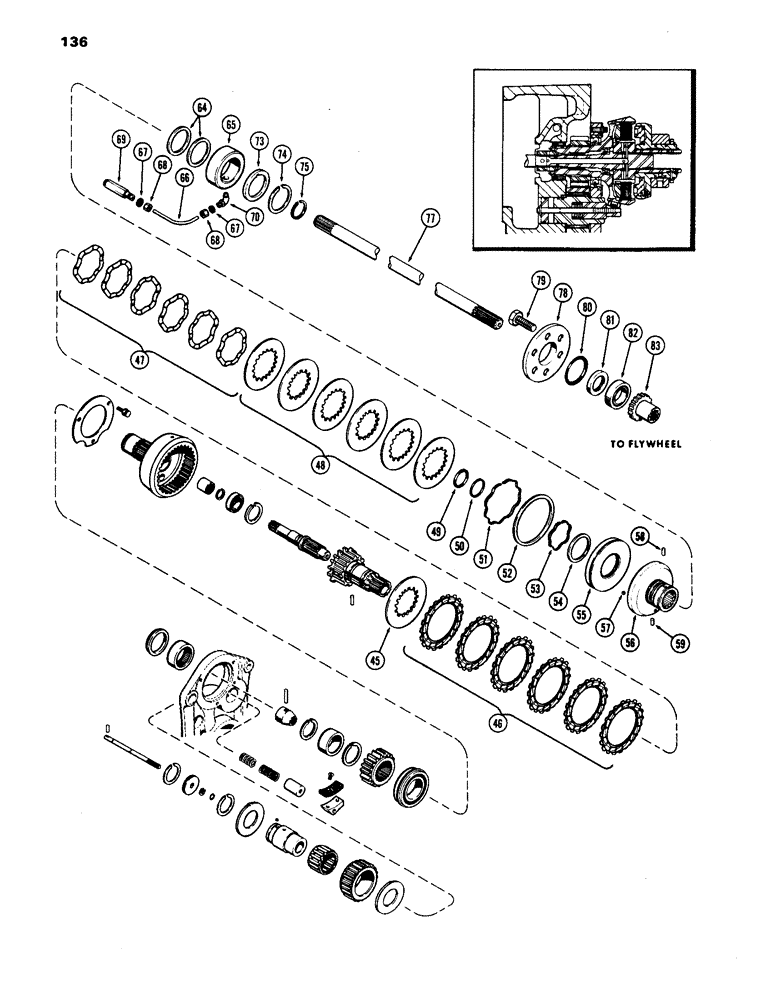

Запчасти Case IH 1170 (136) - P.T.O. DRIVE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
45
A61618
PLATE
- backing, clutch
1шт.
46
A59231
PLATE
- drive, sintered
6шт.
47
A59013
SPRING
- clutch separator
6шт.
48
A65425
PLATE
- driven, steel (Replaces A57170)
6шт.
49
A62194
O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro
"O" RING - 1-1/2 x 1-11/16 x 3/32"
1шт.
50
A62193
O-RING,1.424" ID x 1.63" OD
"O" RING - 1-7/16 x 1-5/8 x 1/4"
1шт.
51
A59012
SPRING
- expander, piston (large)
1шт.
52
A59011
RING
- seal, piston (large)
1шт.
53
A59010
SPRING
- expander, piston (small)
1шт.
54
A59009
RING
- sealing, piston (small)
1шт.
55
A59008
PISTON
- clutch
1шт.
56
A62200
CARRIER
- piston
1шт.
57
211-6
BALL,7/32" Dia
steel 7/32" Dia
1шт.
58
135-138
GROOVED PIN,3/16" x 5/8", Type A, Hardened
Pin, Grooved, , shearproof 3/16" x 5/8", Type A, Hardened
1шт.
59
138-2044
PIN,1/16" x 1/2", Coiled
- roll,, 1/16 x 1/2" spiral
1шт.
64
A59005
SEAL
RING - seal, piston carrier
2шт.
65
A59006
COLLAR
- clutch
1шт.
66
A62355
TUBE
ASSY. - clutch feed (Replaces A59014), Includes: Ref. 67 and 68
1шт.
67
222-104
SLEEVE,3/8" Tube
- for 3/8" Tube
2шт.
68
222-114
NUT,5/8"-24
NUT - for 3/8" tube
2шт.
69
A59015
CONNECTOR, ELEC
CONNECTOR - (in P.T.O. housing)
1шт.
70
222-4047
ELBOW
- 1/4" P.T., 3/8" tube
1шт.
73
A62849
WASHER,58.67mm ID x 76.2mm OD x 6.35mm Thk
- retaining, collar (Replaces A59007)
1шт.
74
A32300
SNAP RING,#225, 2.174", Ext
- piston carrier (large)
1шт.
75
A62195
SNAP RING,#156K, 1.453", Ext, Spiral
- piston carrier (small)
1шт.
77
A34435
SHAFT
- drive, P.T.O. & hyd. pump
1шт.
78
A7145
RETAINER
- oil seal, front
1шт.
79
114-622
X
BOLT - 5/8 x 2" N.C. hex
6шт.
80
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
"O" RING - 2-1/2 x 2-3/4 x 1/8"
1шт.
81
A57479
OIL SEAL
- oil, front, 1-1/2 x 2-1/8 x 7/16"
1шт.
82
A60023
BEARING ASSY,34.99mm ID x 62mm OD x 14mm W
BEARING - pilot, front, 1-3/8 x 2-7/16 x 35/64"
1шт.
83
A34522
SLEEVE
- drive shaft, front
1шт.
Выбрано товаров: 32
