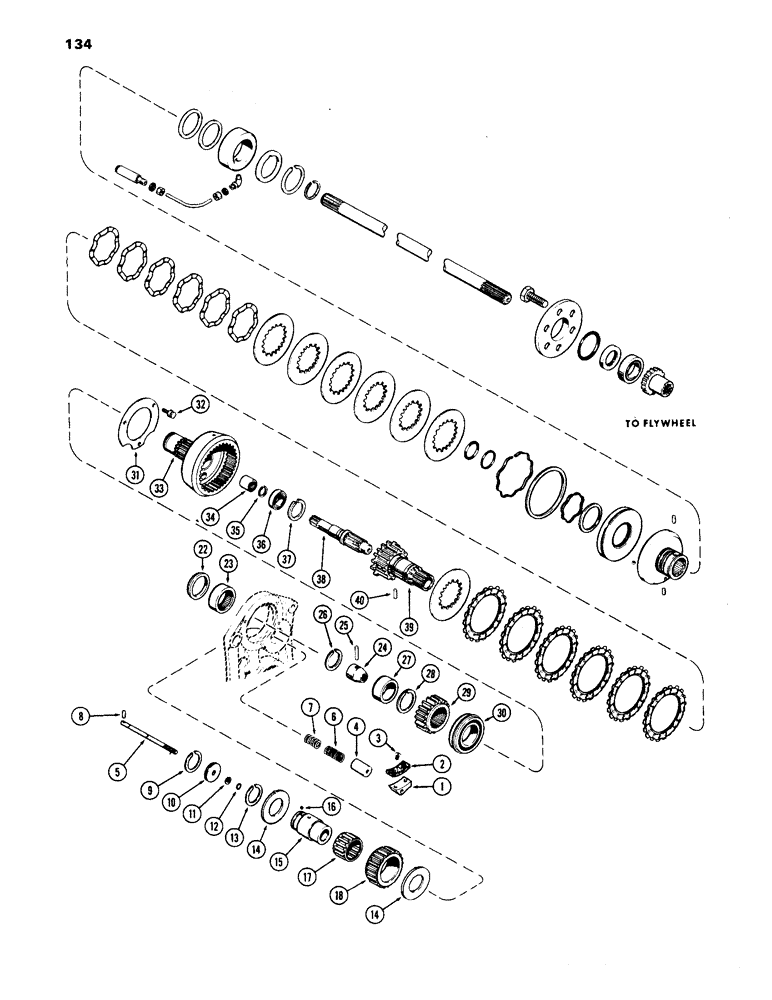

Запчасти Case IH 1170 (134) - P.T.O. DRIVE (06) - POWER TRAIN

A58990

SHOE

ASSY. - P.T.O. brake (Not illust.), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHOE - P.T.0. brake (Order A58990)

1шт.

2

A25599

FACING

- P.T.O. brake

1шт.

3

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - #10 x 3/8" N.C. self tapping

2шт.

4

NSS

NOT SOLD SEPARAT

PISTON - P.T.O. brake (Order A58990)

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - connecting, P.T.O. brake (Order A58990)

1шт.

6

A32451

SPRING

- actuating, brake (1-3/16" free length)

1шт.

7

D38446

SPRING

- actuating, brake (1-1/4" free length)

1шт.

8

138-2037

PIN,1/8" x 3/4", Coiled

1шт.

9

A58989

RING

- seal, brake release piston

1шт.

10

A58994

PISTON

- P.T.O. brake release

1шт.

11

G46146

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - 1/4 x 3/8 x 1-16"

1шт.

13

A58989

RING

- seal, 1st idler shaft

1шт.

14

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- 1st idler shaft

2шт.

15

A58988

SHAFT

- 1st idler

1шт.

16

211-7

BALL,1/4" Dia

steel 1/4" Dia

1шт.

17

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - roller, 2 x 2-3/8 x 1-1/2"

1шт.

18

A34136

GEAR

- 1st idler (25 teeth)

1шт.

22

A33007

RING

- oil restrictor, drum

1шт.

23

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING - needle, drum, 2-1/16 x 2-17/32 x 3/4"

1шт.

24

A32097

COUPLING, BREAK AWAY

COUPLING - hydraulic pump shaft

1шт.

25

138-2011

PIN,1/8" x 1 1/4", Coiled

1шт.

26

A33323

RING

SNAP RING - drum bearing race

1шт.

27

A33320

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.01"

RACE - inner, drum bearing

1шт.

28

A32413

SNAP RING,#212, 1.997", Ext

- pinion retaining

1шт.

29

A32435

GEAR

PINION - P.T.O. driver (33 teeth)

1шт.

30

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING - ball, drum outer, 2-5/32 x 3-36/64 x 45/64"

1шт.

31

A59019

RING

- bearing retaining

1шт.

32

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - 5/16 x 3/4" N.c. Ferry, cap

3шт.

33

A62890

CLUTCH

DRUM ASSY. - P.T.O. clutch (Replaces A61615), Includes: Ref. 34

1шт.

34

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, drum inner, 7/8 x 1-1/8 x 1"

1шт.

35

A32438

SNAP RING

SNAP RING - bearing retaining

1шт.

36

A32437

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - ball, drum inner, 63/64 x 1-55/64 x 15/32"

1шт.

37

A32439

RING

SNAP RING - bearing retaining

1шт.

38

A59020

SHAFT

- drive, hydraulic pump

1шт.

39

A62199

HUB

- P.T.O. clutch

1шт.

40

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, 1/8" x 13/16", Slotted

1шт.
