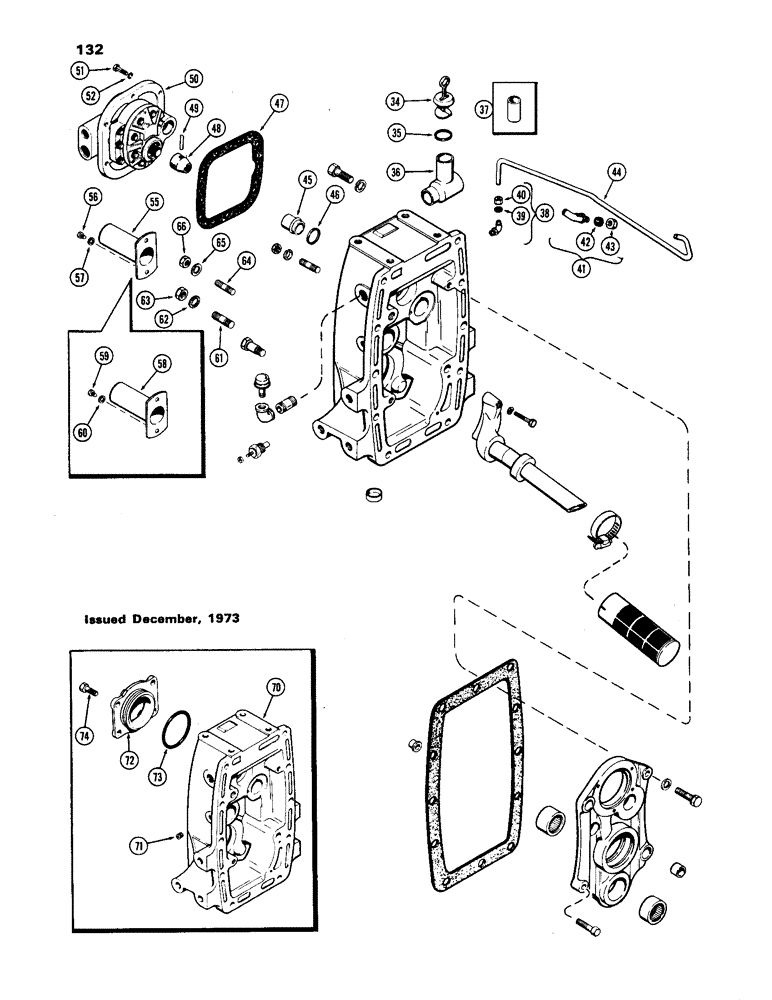

Запчасти Case IH 1170 (132) - P.T.O. HOUSING (06) - POWER TRAIN

34

A64404

BREATHER

BREATHER ASSY. - oil (Replaces A59123), Includes: Ref. 35

1шт.

35

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - 1 x 1-1/4 x 1/8"

1шт.

36

A62172

TUBE

TUBE - oil filler (later models)

1шт.

37

A59122

SPARE PART TUBE - oil filler (early models)

1шт.

38

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

ELBOW ASSY. - 3/8" P.T., 3/8" tube, Includes: Ref. 39

1шт.

39

222-104

SLEEVE,3/8" Tube

SLEEVE - for 3/8" Tube

1шт.

40

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

41

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ELBOW ASSY. - 1/4" P.T., 3/8" tube, Includes: Ref. 42 and 43

1шт.

42

222-104

SLEEVE,3/8" Tube

SLEEVE - for 3/8" Tube

1шт.

43

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

44

A59299

TUBE

TUBE - P.T.O. clutch lubrication

1шт.

45

A58983

TUBE

TUBE - hydraulic pump inlet

1шт.

46

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1-3/8 x 1-5/8 x 1/8"

1шт.

47

A32096

GASKET

GASKET - hydraulic pump

1шт.

48

A32097

COUPLING, BREAK AWAY

COUPLING - hydraulic pump shaft

1шт.

49

138-2011

PIN,1/8" x 1 1/4", Coiled

Pin, 1/8" x 1 1/4", Coiled

1шт.

50

A62051

PUMP

PUMP ASSY. - hydraulic (See Figure 154)

1шт.

50

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

50

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

51

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

52

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

55

A32456

SPARE PART GUARD ASSY. - output shaft (Single Speed)

1шт.

56

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

57

92-5

LOCK WASHER,5/16"

WASHER - lock, 1/4"

2шт.

58

A58238

GUARD

SPARE PART GUARD - output shaft (Dual Speed)

1шт.

59

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

60

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

61

A58195

STUD

STUD - 5/8" N.C. x 3-1/2"

2шт.

62

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

63

25-1010

NUT,5/8"-11, G5

NUT, 5/8"-11, G5

2шт.

64

A58194

STUD - 1/2" N.C. x 3-1/8"

2шт.

65

A58194

WASHER - shakeproof, 1/2" int.

2шт.

66

25-108

NUT,1/2"-13, G5

NUT - 1/2" N.C. hex.

2шт.

70

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. & hyd. pump (Order A62190 from Figure 130), w/o PTO

1шт.

71

221-841

PLUG

PLUG - 1/4" hex. sckt. hd., pipe, PTO housing w/o PTO

1шт.

72

A58193

SPARE PART COVER - output shaft opening, PTO housing w/o PTO

1шт.

73

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 1/8", PTO housing w/o PTO

1шт.

74

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

BOLT, , PTO housing w/o PTO Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

74

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

BOLT, , PTO housing w/o PTO Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.
