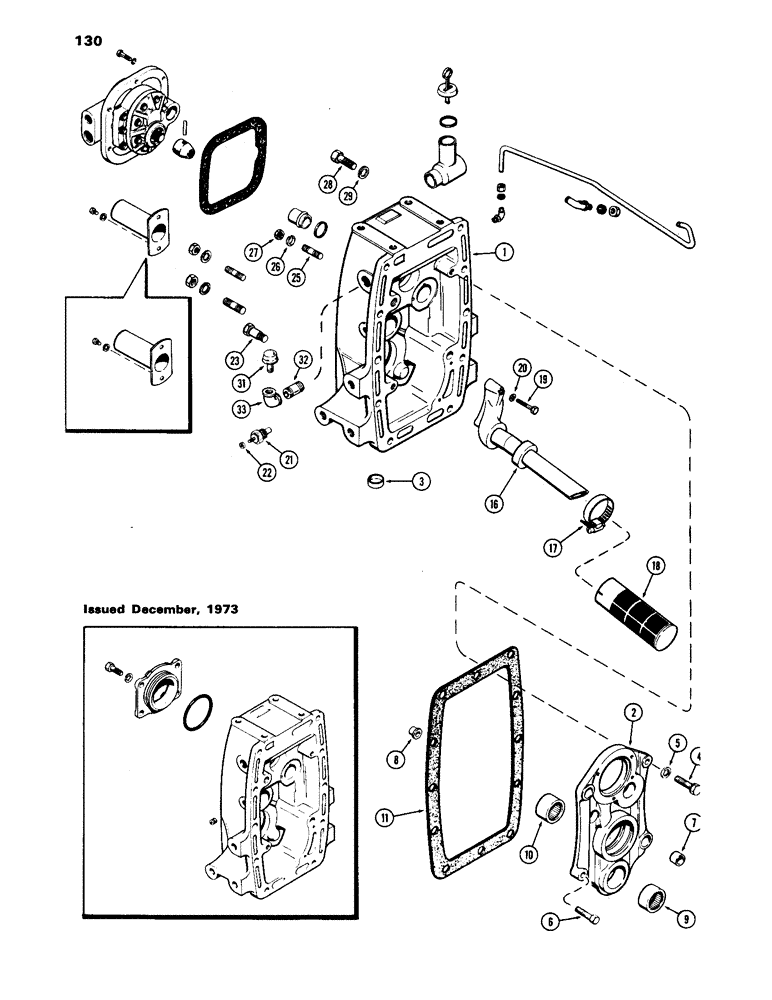

Запчасти Case IH 1170 (130) - P.T.O. HOUSING (06) - POWER TRAIN

A62190

HOUSING

ASSY. - P.T.O. & hyd. pump (Not Illust.), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. & hyd. pump (Order A62190)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. bearing carrier (Order A62190)

1шт.

3

41-1020

PLUG,Cup, 1 1/4"

- 1-17/64" cup

1шт.

4

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 2" N.C. hex.

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

7

A50011

SLEEVE

- dowel, bearing carrier, Serial Range: -housing

2шт.

8

A32426

BUSHING

SPACER - bearing, Serial Range: carrier-sleeve

2шт.

9

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, 2nd idler shaft (1-3/4 x 2-1/8 x 1")

1шт.

10

A58197

NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"

BEARING - needle, output sleeve (2-1/4 x 2-5/8 x 1-1/4")

1шт.

11

A32461

GASKET

- P.T.O. housing to trans. case

1шт.

A61057

TUBE

SCREEN ASSY. - hyd. pump oil suction (Not Illust.), Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

TUBE - oil suction (Order A61057)

1шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

18

A60299

FILTER STRAINER

SCREEN - oil suction

1шт.

19

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

A21462

SENDER UNIT

UNIT - sending, transmission temperature

1шт.

22

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. Keps, w/ext. skpf. washer

1шт.

23

A61670

STEP BOLT

- 5/8 x 1-13/16" N.C. hex., shoulder

2шт.

25

A29396

STUD

- 5/8" N.C./N.F. x 2-7/8"

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

2шт.

28

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

A64934

KIT

- breather, housing oil, Includes: Ref. 31 - 33

1шт.

31

A27173

BREATHER

- oil

1шт.

32

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - breather, 3/4" P.T. x 1-3/8"

1шт.

33

221-395

FITTING

ELBOW - reducing, 3/4" P.T. x 1/4" P.T. 90deg.

1шт.
