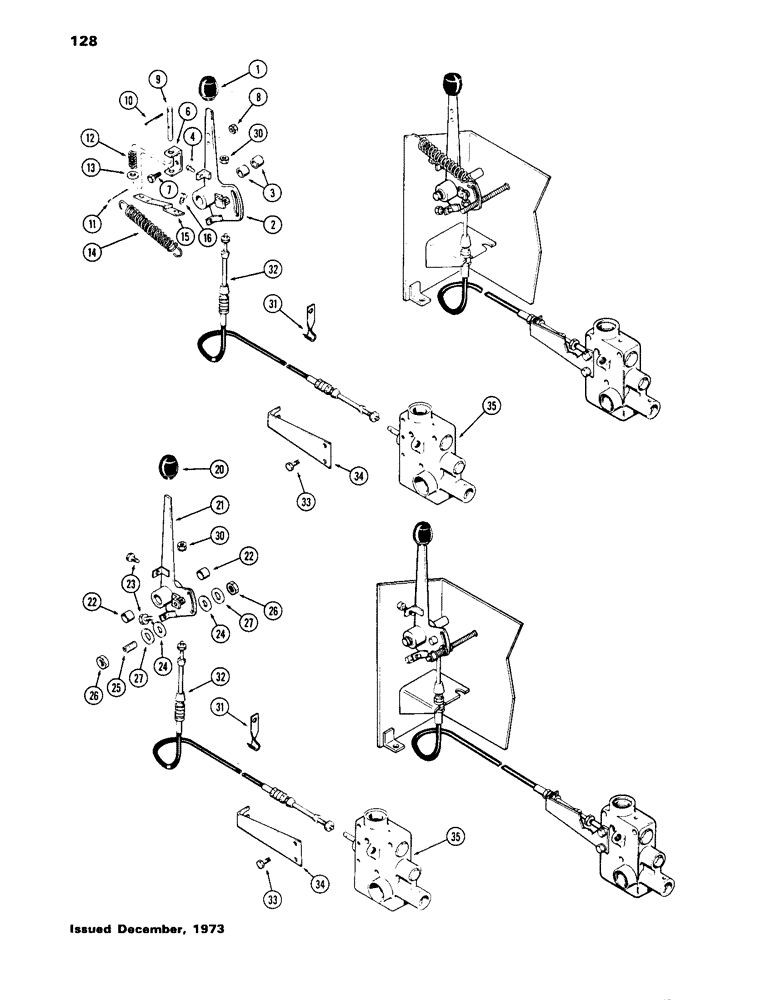

Запчасти Case IH 1170 (128) - P.T.O. CONTROL LINKAGE, W/POSITIVE ON-OFF (06) - POWER TRAIN

1

A65699

KNOB

ATTACHMENT - weights (set of 2) (Mach. Item)

1шт.

2

A65574

LEVER

ASSY - PTO hand, Includes Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Lever

2шт.

4

A59463

BOLT

1/4 x 5/8" N.C. hex., nylon

2шт.

A65481

KIT

Positive on & off, Includes Ref. 6 - 16

1шт.

6

A65478

BRACKET

Hand lever

1шт.

7

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

8

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

9

A65479

PIN

Hand lever

1шт.

10

138-94

LOCK PIN,3/16" x 7/8", Slotted

1шт.

11

138-104

LOCK PIN,3/16" x 2", Slotted

1шт.

12

A22712

SPRING

Pin

1шт.

13

195-529

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

1шт.

14

A35789

SPRING

Return

1шт.

15

A66387

LOCK

Lever position

1шт.

16

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

SPARE PART Self-tapping

2шт.

A65476

GAUGE

TEMPLATE - hand lever hole guide

1шт.

A65477

GAUGE

TEMPLATE - console cover hole guide

1шт.

20

A65699

KNOB

PTO - hand lever (replaces A65541)

1шт.

21

A61072

LEVER

ASSY - PTO hand, Includes Ref. 22

1шт.

22

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Lever

2шт.

23

A59463

BOLT

1/4 x 5/8" N.C. hex., nylon

2шт.

24

A61069

DISC

Friction, 25/64 x 1-1/4 x 14 ga.

2шт.

25

A65583

SPRING

Compression, friction disc

1шт.

26

131-1306

JAM NUT,Jam, 3/8"-16

Top face lock

2шт.

27

195-2172

WASHER,7/16" x 1 1/4" x .083"

2шт.

30

193-1000

NUT,Keps, w/LW,#10-32

w/ext. skpf. washer

1шт.

31

A59467

SPARE PART Cable

1шт.

32

A59466

CABLE

PTO control

1шт.

33

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

34

A60267

BRACKET

PTO cable

1шт.

35

REF

INSTRUCTION

VALVE ASSY. - flow divider & PTO control (See Figure 152)

1шт.
