Запчасти Case IH 1170 (124) - REAR WHEELS, SINGLE (06) - POWER TRAIN

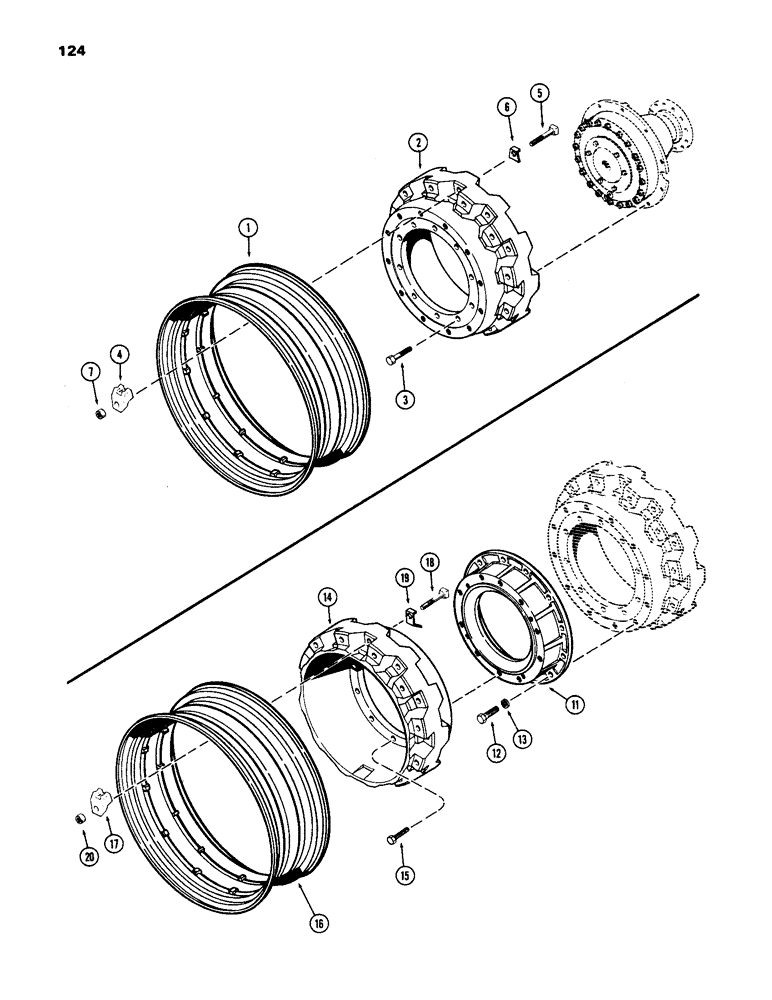

Схема запчастей Case IH 1170 - (124) - REAR WHEELS, SINGLE (06) - POWER TRAIN
16
17
6
1
3
2
4
14
15
11
18
5
20
13
18
7
12

Артикул

Название

Примечание

Количество

1

A61576

RIM

- rear wheel (Takes 15.5 x 38 tire)

2шт.

1

A61577

RIM

- rear wheel (Takes 18.4 x 38 tire)

2шт.

1

A61578

RIM

- rear wheel (Takes 20.8 x 38 tire)

2шт.

2

A61647

WHEEL - rear

2шт.

3

113-754

BOLT

- 3/4 x 3" N.C. hex.

20шт.

4

A57654

CLAMP

- double ramp type, Serial Range: rim-wheel

24шт.

5

A143725

SQUARE BOLT

- 3/4 x 7" N.C. sq. hd.

24шт.

6

A61974

LOCK WASHER

- bolt clamp lock

24шт.

7

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex.

24шт.

11

A61649

SPACER - dual wheel adapter

2шт.

12

113-748

BOLT

- 3/4 x 2-1/2" N.C. hex., dual

24шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Dual 3/4"

24шт.

14

A61647

WHEEL - rear, dual

2шт.

15

113-748

BOLT

- 3/4 x 2-1/2" N.C. hex., dual

20шт.

16

A61576

RIM

- rear wheel (Takes 15.5 x 38 tire), dual

2шт.

16

A61577

RIM

- rear wheel (Takes 20.8 x 38 tire), dual

2шт.

16

A61578

RIM

- rear wheel (Takes 20.8 x 38 tire), dual

2шт.

17

A57654

CLAMP

- double ramp, dual

24шт.

18

117-605

BOLT,Sq Hd, 3/4" - 10 x 6-1/2", Gr 5

- 3/4 x 6-1/2" N.C. sq. hd., dual

24шт.

19

A61974

LOCK WASHER

- bolt clamp lock, dual

24шт.

20

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex., dual

24шт.

Выбрано товаров: 21
