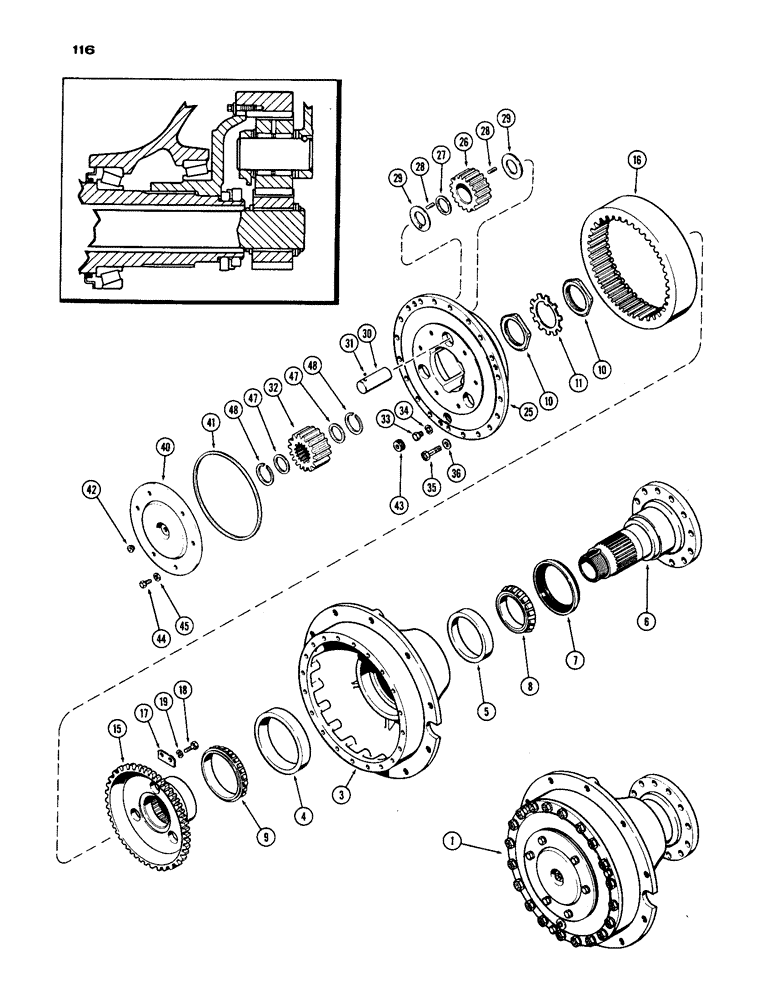

Запчасти Case IH 1170 (116) - PLANETARY DRIVE (06) - POWER TRAIN

1

A61612

PLANETARY ASSY. - wheel end, Includes: Ref. 2 - 45

2шт.

A43236

HUB ASSY. - w/cups, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

HUB - w/o cups (Order A43236)

1шт.

4

A43238

CUP

- hub, outer

1шт.

5

A43239

CUP

- hub, inner

1шт.

6

A43241

SPINDLE - end

1шт.

7

A43243

OIL SEAL

SEAL - oil, hub

1шт.

8

F13248

CUP ASSY.

CONE - bearing, hub inner

1шт.

9

A43244

ROLLER BEARING,5.375" ID x 1.5625"

CONE - bearing, hub outer

1шт.

10

A43245

NUT - spindle lock

2шт.

11

A43246

LOCK

- spindle nut

1шт.

15

A43232

HUB - internal gear

1шт.

16

A43234

GEAR

- hub internal

1шт.

17

A43364

RETAINER

PLATE - gear retainer (Replaces A43233)

6шт.

18

A43235

BOLT -, Serial Range: gear-hub

12шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

25

A43225

CARRIER - planetary

1шт.

26

A43226

PINION

- planetary

3шт.

27

A43227

SPACER

- pinion roller

3шт.

28

NSS

NOT SOLD SEPARAT

ROLLER - pinion (Order A43362)

150шт.

29

A43229

RETAINER

WASHER - pinion thrust

6шт.

30

A43230

SHAFT

- pinion

3шт.

31

211-11

BALL,3/8" Dia

- ., chrome steel 3/8" Dia

3шт.

32

A43242

GEAR

- sun, 16 teeth

1шт.

33

113-506

BOLT - 9/16 x 1/2" N.C. hex. Hex, 9/16"-12 x 1/2", G5, Full Thd

3шт.

34

192-64

WASHER - lock, 9/16"

3шт.

35

A43247

SCREW - planetary carrier, 1/2 x 2" N.C. hex., cap.

20шт.

36

A43248

WASHER

- planetary carrier, 37/64 x 1 x 3/32"

20шт.

40

A43240

BLOCK DRIVER

COVER - planetary end

1шт.

41

A43249

SEALING RING

RING - seal, cover

1шт.

42

A43250

BREATHER

- relief valve

1шт.

43

221-1025

PLUG

- pipe, 3/4" sq. sckt. hdless.

1шт.

44

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

6шт.

45

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- 29/64 x 3/4 x 1/16"

6шт.

A43362

KIT - pinion roller (Set of 50)(50 rollers used per pinion)

6шт.

47

A62080

SPACER - sun gear (.0279")

1шт.

47

A62081

SPACER - sun gear (.0478")

1шт.

47

A62082

SPACER - sun gear (.1196")

1шт.

48

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, spacer & sun gear retaining

4шт.
