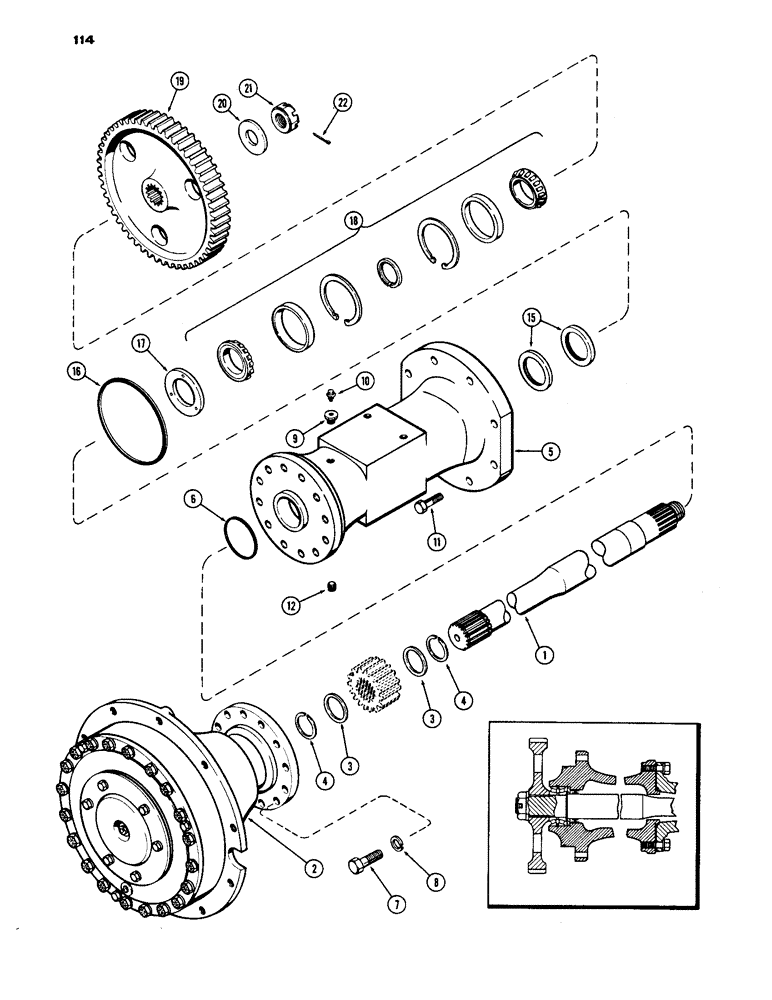

Запчасти Case IH 1170 (114) - REAR AXLE (06) - POWER TRAIN

1

A61609

SHAFT - rear axle

2шт.

2

A61612

PLANETARY ASSEMBLY - wheel (See Figure 116)

2шт.

3

A62080

SPACER - sun gear (.0279")

1шт.

3

A62081

SPACER - sun gear (.0478")

1шт.

3

A62082

SPACER - sun gear (.1196)"

1шт.

4

A32300

SNAP RING,#225, 2.174", Ext

RING - retainer

4шт.

5

A61607

HOUSING

- axle, rear

2шт.

6

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - planetary hsg., 3-3/4 x 4 x 1/8"

2шт.

7

113-722

X

BOLT - 3/4 x 2-1/2" N.C. hex.

24шт.

8

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

9

A61613

ADAPTER - vent

2шт.

10

A12928

BREATHER

- oil

2шт.

11

A62956

BOLT - 5/8 x 3-1/4" N.C. hex.

16шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

- oil drain, 1/8" P.T. hex. sckt. hd.

2шт.

15

A20939

OIL SEAL

SEAL - oil, axle shaft

4шт.

16

A61597

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

"O" RING - axle hsg. to trans hsg., 8-3/4 x 9 x 1/8"

2шт.

17

A61608

GUIDE

- housing

2шт.

18

A61610

BEARING ASSY. - housing

2шт.

19

A61611

GEAR - final drive

2шт.

20

A38258

WASHER

- 1-25/32 x 3-1/4 x 1/4"

2шт.

21

A38259

NUT - 1-3/4" N.F. hex., slotted

2шт.

22

132-187

COTTER PIN,5/16" x 3"

Pin, Split (Cotter), 5/16" x 3"

2шт.
