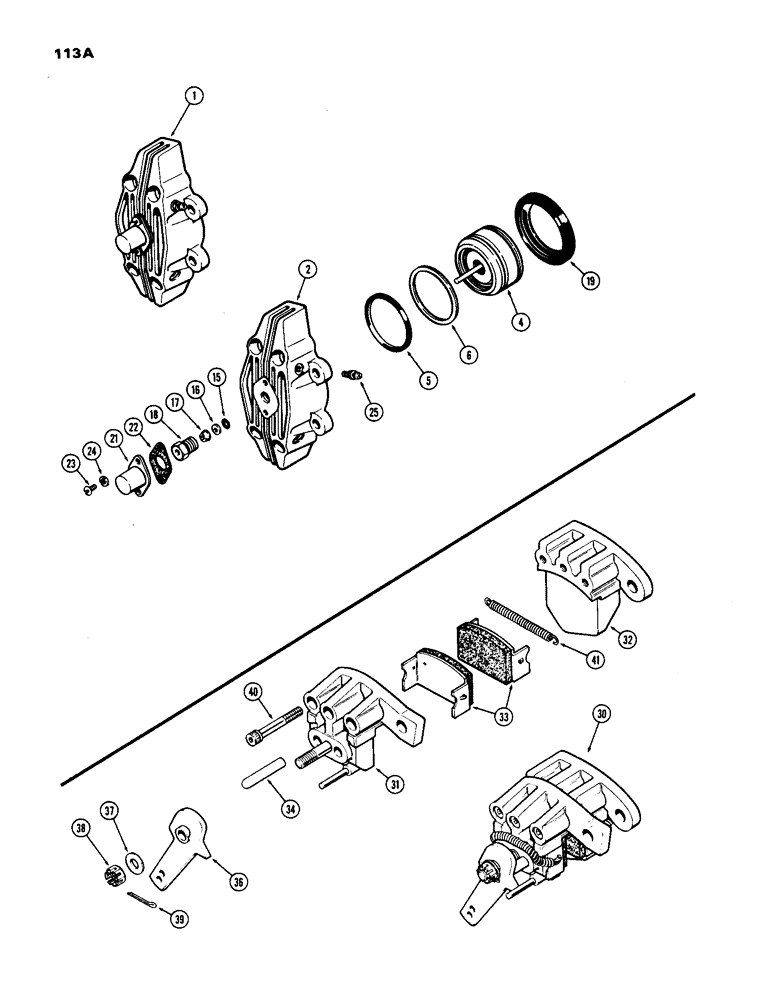

Запчасти Case IH 1170 (113A[1]) - PARKING BRAKE (06) - POWER TRAIN

1

A65338

BRAKE ASSY.

- R.H.

1шт.

1

A65339

BRAKE

ASSY. - L.H.

1шт.

2

A43310

HOUSING

- brake, R.H.

1шт.

2

A43311

HOUSING

- brake, L.H.

1шт.

4

A43312

PISTON

ASSY. - brake

1шт.

5

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston outer seal

1шт.

6

A23535

OIL SEAL

RING - "O" ring back-up

1шт.

15

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - brake pin

1шт.

16

A43314

WASHER

- spacer

1шт.

17

A43315

COLLAR

COLLET - brake

1шт.

18

A43316

NUT

- collet torque

1шт.

19

A43313

BOOT

- piston dust

1шт.

21

A43318

COVER

- brake

1шт.

22

A43317

GASKET

- cover

1шт.

23

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd., sltd.

2шт.

24

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

25

A43319

BLEEDER,Bleeder, 5/16" - 24 x 0.64"

- brake

1шт.

30

A61304

BRAKE ASSY. - parking, R.H.

1шт.

30

A61305

BRAKE ASSY. - parking, L.H.

1шт.

31

A43306

HOUSING - w/stop & stud, R.H., parking brake

1шт.

31

A43302

HOUSING - w/stop pin & stud, L.H., parking brake

1шт.

32

A43303

HOUSING - carrier, L.H., parking brake

1шт.

32

A43307

HOUSING - carrier, R.H., parking brake

1шт.

32

A43307

HOUSING - carrier, L.H., parking brake

1шт.

33

A43864

BRAKE PAD

LINER - brake (Replaces A43299), parking brake

2шт.

34

A43301

PIN

- brake thrust, parking brake

2шт.

36

A43304

LEVER - cam, R.H., parking brake

1шт.

36

A43308

LEVER - cam, L.H., parking brake

1шт.

37

195-533

WASHER,1/2", SAE

- 17-32 x 1-1/16 x 3/32", parking brake

1шт.

38

A43305

LOCKNUT - cam retainer, parking brake

1шт.

39

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), , Parking brake 5/32" x 1"

2шт.

40

61-644

SCREW

- 3/8 x 2-3/4"N.C. sckt. hd., cap, parking brake

3шт.

41

A43300

SPRING

- liner retaining, parking brake

2шт.
