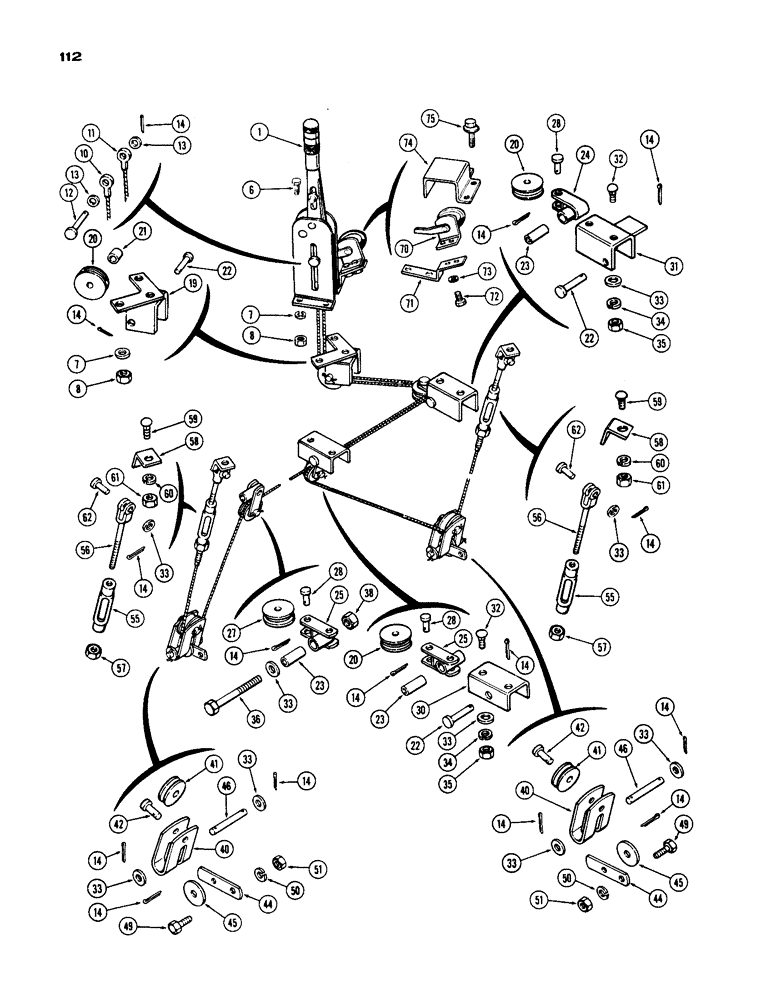

Запчасти Case IH 1170 (112) - PARKING BRAKE CONTROLS (06) - POWER TRAIN

1

A59410

LEVER

- hand brake

1шт.

A42204

PIN

- lever

1шт.

D47261

WASHER

- spring

1шт.

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 16 ga.

1шт.

C14652

RING

- pin retaining

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

10

A62222

CABLE

- brake (45")

1шт.

11

A62223

CABLE

- brake (64")

1шт.

12

A59153

CLEVIS PIN

PIN - clevis, 7/16 x 2-1/4"

1шт.

13

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16"

2шт.

14

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

15шт.

19

A62219

SUPPORT - pulley

1шт.

20

A62224

PULLEY - brake, upper

3шт.

21

A61496

SPACER - pulley

1шт.

22

A61495

PIN - clevis, 7/16 x 1-31/32"

3шт.

23

A62120

BUSHING - spacer support

3шт.

24

A62466

SUPPORT - pulley (L.H. platform)

1шт.

25

A62117

SUPPORT - pulley

2шт.

27

A59416

SHEAVE

PULLEY - brake, upper

1шт.

28

A59419

PIN,7.9mm OD x 30.96mm L

- clevis, 7/16 x 1-1/8"

3шт.

30

A62025

CHANNEL - pulley support

1шт.

31

A62480

CHANNEL

- pulley support (replaces A62221)

1шт.

32

111-236

BOLT - 5/16 x 7/8" N.C. carr.

4шт.

33

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 3/32"

11шт.

34

92-5

LOCK WASHER,5/16"

4шт.

35

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

36

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- 5/16 x 3-3/4" N.C. hex

1шт.

38

131-173

NUT,5/16"-18, GA

- 5/16" N.C. hex.

1шт.

40

A62373

SUPPORT - pulley, lower

2шт.

41

A59416

SHEAVE

PULLEY - brake, lower

2шт.

42

A59419

PIN,7.9mm OD x 30.96mm L

- clevis, 7/16 x 1-1/8"

2шт.

44

A62374

SUPPORT - pulley, lower

2шт.

45

A62375

SPACER - support

2шт.

46

A62376

PIN

- support pulley

2шт.

49

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

50

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

51

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

55

49785

TURNBUCKLE

- cable

2шт.

56

A61501

ROD

END - brake cable

2шт.

57

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

58

A61498

SUPPORT - rod end

2шт.

59

111-236

BOLT - 5/16 x 7/8" N.C. carr.

2шт.

60

92-5

LOCK WASHER,5/16"

2шт.

61

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

62

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Brake rod end 5/16" x .940"

2шт.

70

A33977

SWITCH

- brake light

1шт.

71

A60542

BRACKET - switch

1шт.

72

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10 x 3/8" N.F. rd. hd. mach.

2шт.

73

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

74

A59422

COVER - light switch

1шт.

75

187-1053

SELF-TAP SCREW,Truss Hd, #10 x 1/2"

SCREW - #10 x 1/2" truss hd., self tapping

3шт.
