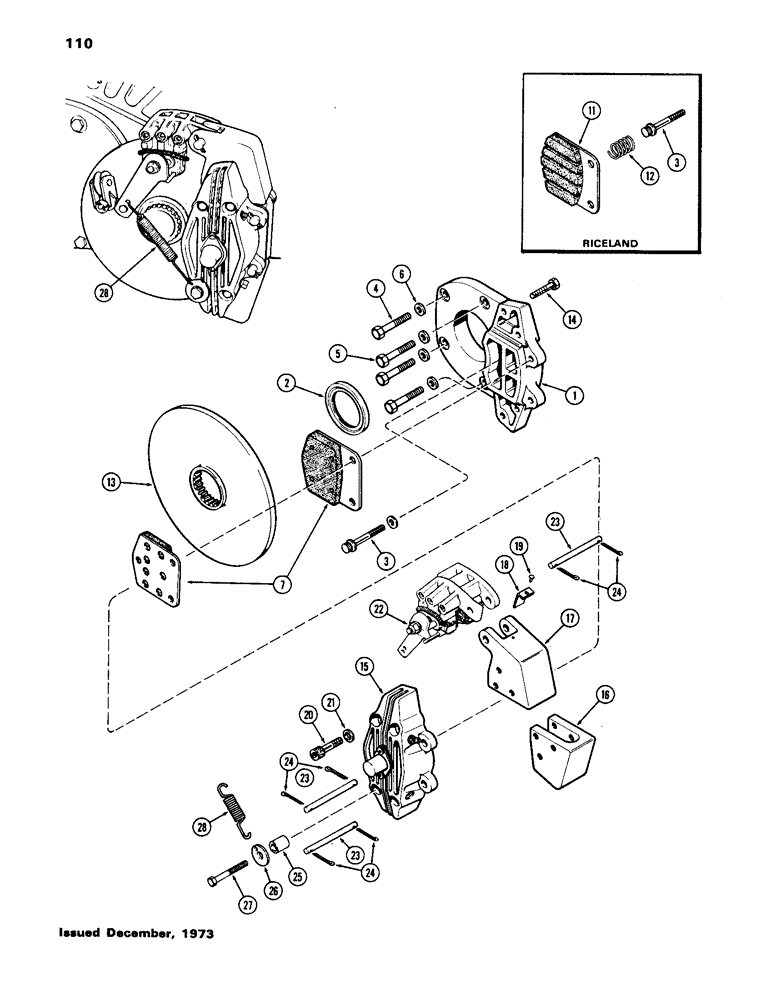

Запчасти Case IH 1170 (110) - BRAKES (06) - POWER TRAIN

1

A61311

ADAPTER - brake, right hand

1шт.

1

A62455

ADAPTER - brake, left hand

1шт.

2

A57658

OIL SEAL

- adapter

1шт.

3

166-120

SPECIAL BOLT,Flg, 5/8" - 11 x 3 1/4"

SCREW - 5/8 x 3-1/4" N.C. ferry cap

2шт.

4

A61300

BOLT - 5/8 x 3-1/4" N.C. hex. (Jay-Lok)

4шт.

5

113-651

BOLT

- 5/8 x 3-1/4" N.C. hex.

4шт.

6

A29881

WASHER

- 41/64 x 1-1/16 x 1/16"

10шт.

7

A42994

PAD

- brake (original equip.)(solid lining)

4шт.

11

A43363

LINING

PAD - brake (Riceland)(slotted lining)

4шт.

12

A27877

SPRING

- for Riceland brake pad (fits over cap screw 166-120)

2шт.

13

A61301

DISC

- brake caliper

2шт.

14

113-470

X

BOLT - 1/2 x 2-1/4 " N.C. hex.

8шт.

15

A65339

BRAKE

ASSY. - caliper, self-adjusting, left hand (See Figure 113A)(Replaces A62127)

1шт.

16

A62007

SPACER - brake, lower

2шт.

17

A62008

SPACER

- brake, upper

2шт.

18

A62462

SHIM,.005" Thk

Parking brake .005" Thk

1шт.

18

A62463

SHIM,.010" Thk

Parking brake .010" Thk

1шт.

18

A62464

SHIM - parking brake (.0179")

1шт.

19

168-66

DRIVE SCREW,Type U, Rnd Hd, #6 x 1/4"

- shim to spacer (#6 x 1/4" rd. hd. drive)

2шт.

20

166-92

SCREW,1/2" - 13 x 2 3/4"

- 1/2 x 2-3/4" N.C. Ferry cap

8шт.

21

A37029

WASHER

- 33/64 x 7/8 x 1/8"

8шт.

22

A61304

BRAKE ASSY. - parking, right hand (See Figure 113A)

1шт.

22

A61305

BRAKE ASSY. - parking, left hand (See Figure 113A)

1шт.

23

A61306

PIN

- brake

6шт.

24

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

12шт.

25

A62063

SPACER

- brake spring

2шт.

26

A62062

RETAINER - spring

2шт.

27

113-458

X

BOLT - 1/2 x 4" N.C. hex

2шт.

28

A36607

SPRING

- parking brake

2шт.

Two of the brake pads in the kit have a rubber backing that goes on the piston side of the brake assembly. This rubber backing is for heat dissipation from when the brakes are applied.

1шт.

From Hayes, Inc. 414-238-4300.

1шт.
