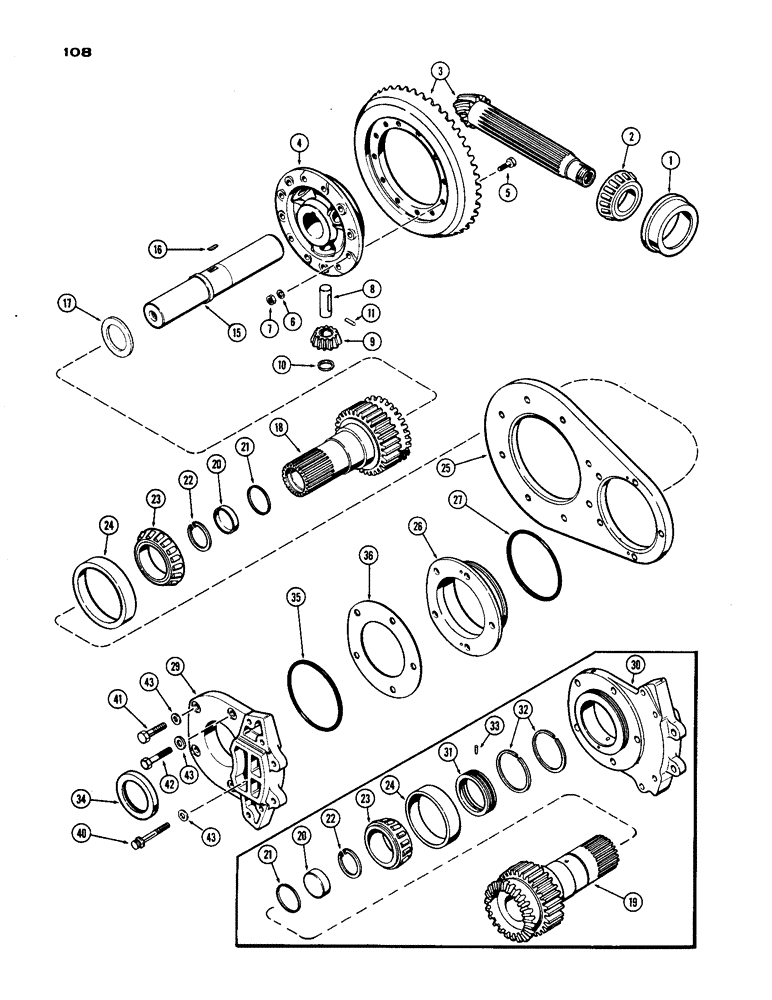

Запчасти Case IH 1170 (108) - DIFFERENTIAL (06) - POWER TRAIN

1

A32750

FLANGED BEARING,2.375" ID x 6.002" OD x 1.8125"

CUP - bearing, countershaft

1шт.

2

A32758

ROLLER BEARING,2.375" ID x 1.8125"

CONE - bearing, countershaft

1шт.

3

A62005

GEAR SET - countershaft & ring gear

1шт.

4

A61591

WHEEL - differential center

1шт.

5

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- 1/2 X 2-1/4" N.C. hex., drilled

12шт.

6

A37029

WASHER

- 33/64 x 7/8 x 1/8"

12шт.

7

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex.

12шт.

8

A64747

PIN

- differential pinion gear (Replaces A62214)

4шт.

9

A64746

GEAR

- differential pinion (Replaces A62988)

4шт.

10

A33539

WASHER

- thrust, differential pinion

4шт.

11

138-2019

PIN,5/16" x 7/8", Coiled

4шт.

15

A64461

SHAFT

- differential (Replaces A62744)

1шт.

16

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - Woodruff, 3/8 x 2-3/4"

1шт.

17

A62407

WASHER

- thrust, differential gear

2шт.

18

A64750

GEAR

ASSY. - differential side, R.H. (Incl. Items 20, 21 & 22) (Replaces A62408)

1шт.

19

A64751

SHAFT ASSY.

GEAR ASSY. - differential side, L.H. (Replaces A62409), Includes: Ref. 20 - 22

1шт.

20

41-1040

PLUG,Cup, 2 1/2"

- 2-1/2" cup

1шт.

21

A61310

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

"O" RING - 2-3/64 x 2-1/16 x 1/16"

1шт.

22

70742

WASHER

2.50", Int, #250

1шт.

23

A28185

ROLLER BEARING,3.375" ID x 1.43"

CONE - bearing, differential gear

2шт.

24

A28184

BEARING CUP

CUP - bearing, differential gear

2шт.

25

A61598

PLATE - housing support

2шт.

26

A61594

SLEEVE - differential gear

2шт.

27

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - 6-1/4 x 6-1/2 x 1/8"

2шт.

29

A61311

ADAPTER - brake, R.H.

1шт.

30

A62455

ADAPTER - brake, L.H.

1шт.

31

A62362

ADAPTER - piston ring, L.H.

1шт.

32

A62361

RING

- seal, adapter

2шт.

33

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

34

A57658

OIL SEAL

- brake

2шт.

35

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING - 5-5/8 x 5-7/8 x 1/8"

2шт.

36

A60490

SHIM,.003" Thk

Brake housing .003" Thk

1шт.

36

A60491

SHIM,.005" Thk

Brake housing .005" Thk

1шт.

36

A60492

SHIM,.010" Thk

Brake housing .010" Thk

1шт.

40

166-120

SPECIAL BOLT,Flg, 5/8" - 11 x 3 1/4"

SCREW - 5/8 x 3-1/4" N.C. ferry cap

2шт.

41

A61300

BOLT - 5/8 X 3-1/4" N.C. hex. (Jay-Loc)

4шт.

42

113-651

BOLT

- 5/8 x 3-1/4" N.C. hex.

4шт.

43

A64303

WASHER

- brake housing (41/64 x 1-1/16 x 1/16")

10шт.
