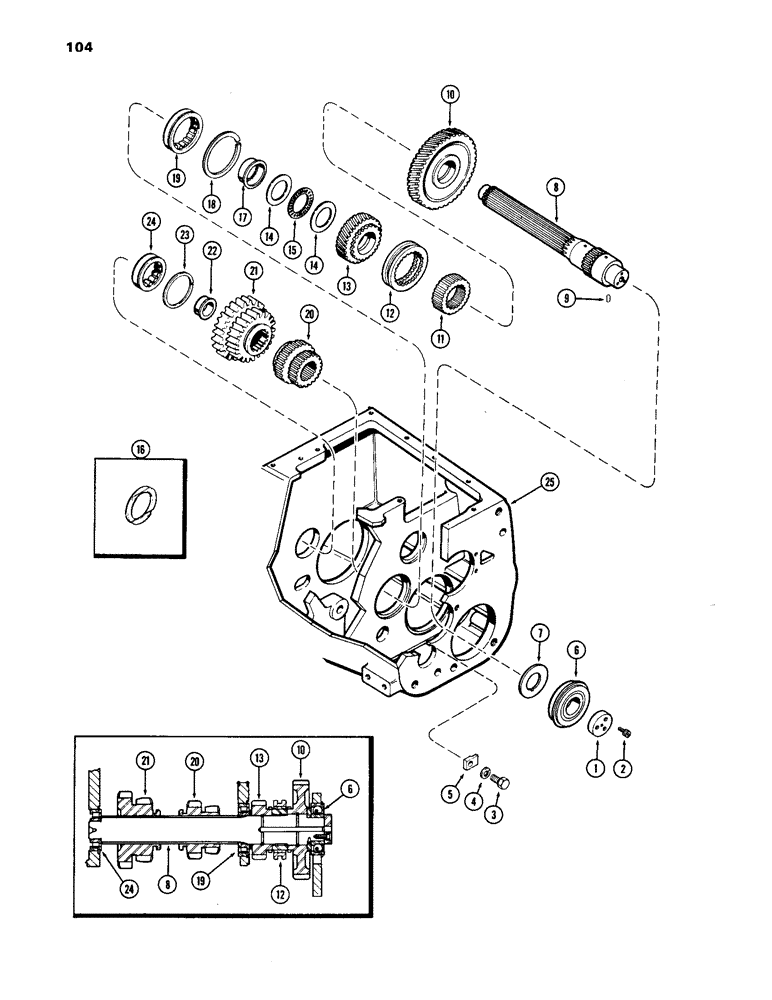

Запчасти Case IH 1170 (104) - SLIDING GEAR SHAFT (06) - POWER TRAIN

1

A32019

PLATE

- lock, front bearing

1шт.

2

165-118

HEX SOC SCREW,Prev Torque, 5/16" - 18 x 3/4"

BOLT - 5/16 x 3/4" N.C. hex. sckt. hd.

3шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

5

A32788

CLAMP

- retaining, bearing plate

2шт.

6

A32018

BALL BEARING,44.99mm ID x 100mm OD x 25mm W

BEARING - ball, front

1шт.

7

A60040

WASHER

- thrust, low range gear

1шт.

8

A34905

SHAFT

- sliding gear

1шт.

9

138-215

LOCK PIN,3/16" x 3/8", Slotted

Pin, 3/16" x 3/8", Slotted

1шт.

10

A61595

GEAR - driven, low range, 20 and 44 teeth

1шт.

11

A32024

COLLAR

- range clutch, 20 ext. & int. teeth

1шт.

12

A62977

SLEEVE

- range clutch, 27 int. teth (Replaces A32025)

1шт.

13

A61600

GEAR

- driven, high range, 20 and 29 teeth

1шт.

14

A32784

WASHER

RACE - thrust, bearing (1st used trans. ser. no. 2342754)

2шт.

15

A32785

THRUST BEARING,2.125" ID x 2.875" OD x 0.0781"

BEARING - thrust (1st used trans. ser. no. 2362754)

1шт.

16

A57970

WASHER

- thrust (Order 2-A32784 & 1-A32785) (used prior to trans. ser. no. 2362754)

1шт.

17

A34772

BEARING, CONE,32T

RACE - center roller bearing, inner

1шт.

18

A32005

RING

SNAP RING - bearing, retaining

1шт.

19

A32004

BEARING ASSY,55mm ID x 100mm OD x 21mm W

BEARING - roller, center

1шт.

20

A33564

GEAR

- cluster, 1st-2nd & 5th-6th, 15 & 19 teeth

1шт.

21

A58417

GEAR

- cluster, 3rd-4th & 7th-8th , 23 & 26 teeth

1шт.

22

A33043

ROLLER BEARING,34.99mm ID x 20.87mm W

RACE - rear roller bearing, inner

1шт.

23

A33041

RING, SNAP

SNAP RING - bearing

1шт.

24

A33042

BEARING ASSY

BEARING - roller, rear

1шт.

25

A58971

HOUSING - transmission

1шт.
