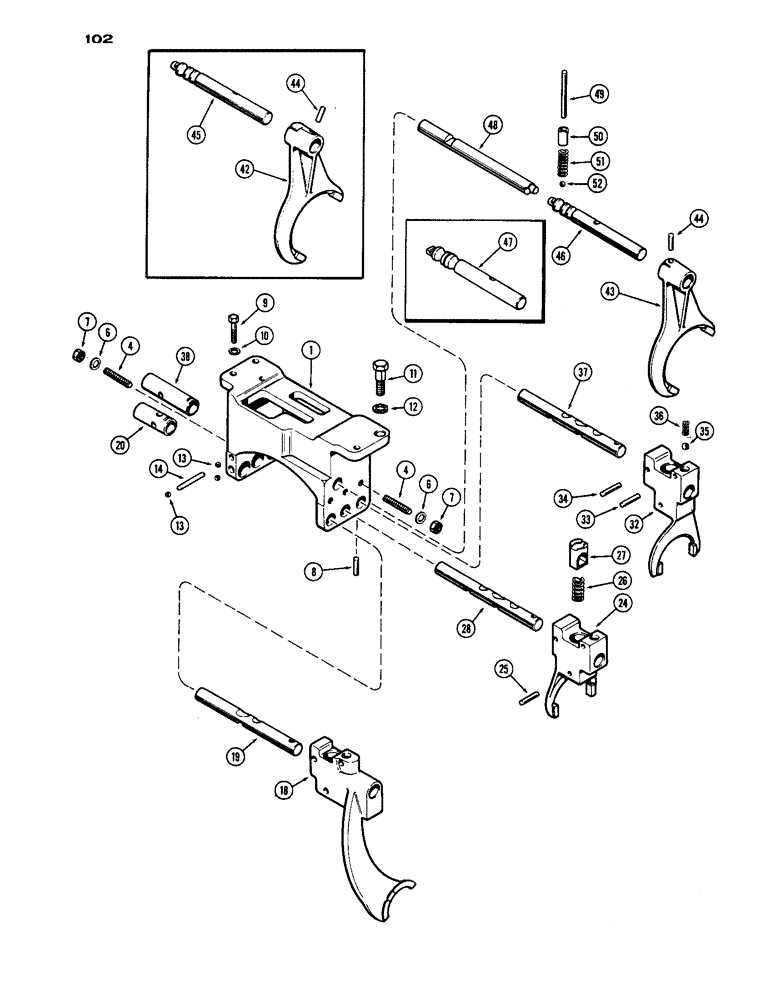

Запчасти Case IH 1170 (102) - GEAR SHIFT MECHANISM, SHAFTS AND FORKS (06) - POWER TRAIN

1

A62810

BRACKET

ASSY. - gear shift control (Replaces A60712)

1шт.

4

83-628

SET SCREW,Hex Soc, 3/8"-16 x 1 3/4"

SCREW - 3/8 x 1-3/4" N.C. hex. sckt. hdless.

3шт.

4

83-632

SET SCREW,Hex Soc, 3/8"-16 x 2"

SCREW - 3/8 x 2" N.C. hex. sckt. hdless.

3шт.

6

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

7

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

6шт.

8

138-2048

PIN,5/16" x 5/8", Coiled

3шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 3/8 x 1-1/2" N.C. hex.

2шт.

10

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER - Shakeproof, 1/2" ext.

2шт.

11

A32042

STEP BOLT

BOLT - 7/16 x 1-15/16" N.C. hex.

1шт.

12

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

13

211-28

BALL,13/32" Dia

- steel, 13/32"

4шт.

14

A59120

ROD

- gear shift interlock

1шт.

18

A59104

FORK

-reverse gear shift

1шт.

19

A59136

SHAFT

- reverse fork

1шт.

20

A59119

TUBE

- reverse interlock

1шт.

24

A59106

FORK

- shift, 3rd & 4th

1шт.

25

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

3шт.

26

A58492

SPRING

- fork detent

3шт.

27

A58491

CLIP

- locking, detent

1шт.

28

A59138

SHAFT

- fork, 3rd & 4th

1шт.

32

A59105

FORK

- shift, 1st & 2nd

1шт.

33

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

3шт.

34

138-2002

PIN,3/16" x 1 1/4", Coiled

3шт.

35

211-14

BALL,9/16" Dia

- detent, 9/16"

3шт.

36

A59588

SPRING

- ball

3шт.

37

A59137

SHAFT

- fork, 1st & 2nd

1шт.

38

A59118

TUBE

- gear shift interlock

2шт.

42

A62249

FORK

- range shift (1st used trans. SN2363550)

1шт.

43

A58937

FORK

- range shift (Used prior to trans. SN2363550)

1шт.

44

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

45

A62248

SHAFT

- range fork (Used trans. SN2363550 thru 2374490)

1шт.

46

A58936

SHAFT

- range fork (Used prior to trans, SN2363550)

1шт.

47

A62842

SHAFT

- range fork (1st used trans. SN2374490)

1шт.

48

A59117

TUBE

SHAFT - range

1шт.

49

A59116

ROD

- neutral switch (3-3/8" lg. Used, Serial Range: prior-trac.SN2374490)

1шт.

49

A62843

ROD - neutral switch (3-5/16"lg. 1st used trans.SN2374490)

1шт.

50

A59113

SPACER

- detent spring

1шт.

51

A33749

SPRING

- detent

1шт.

52

211-13

BALL,1/2" Dia

- detent 1/2" Dia

1шт.
