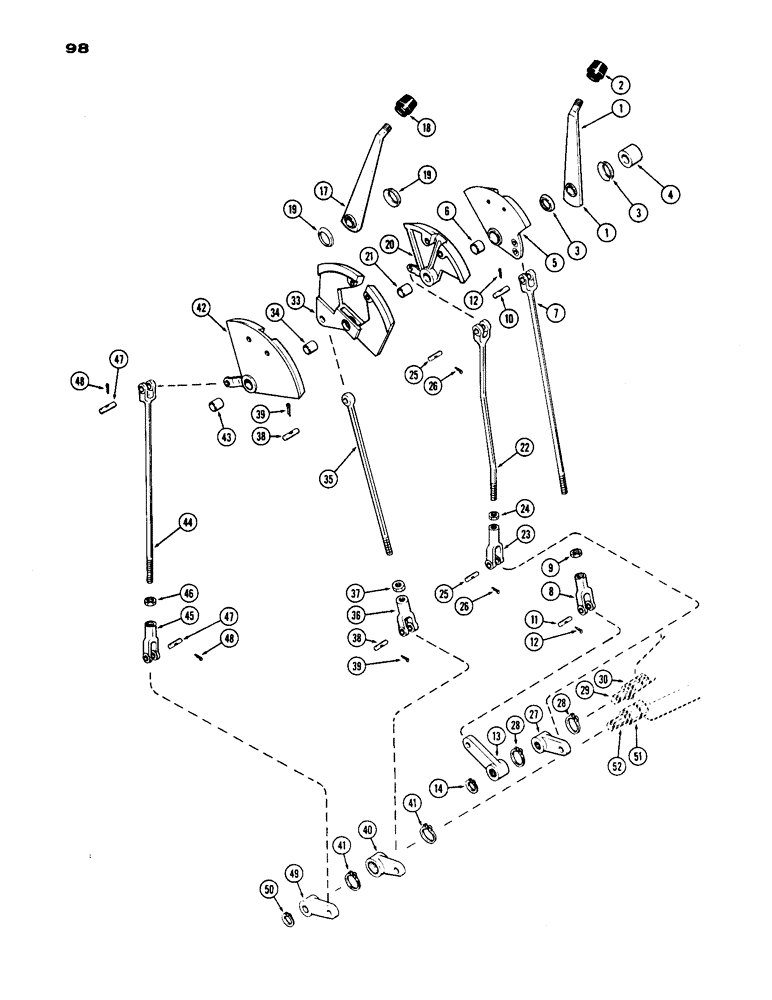

Запчасти Case IH 1170 (098) - GEAR AND RANGE SHIFT LINKAGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A59661
LEVER
- hand, range shift
1шт.
2
A62078
KNOB
- range shift lever
1шт.
3
A59662
WASHER
- range shift lever
2шт.
4
A59664
SPACER
- range shift lever shaft
1шт.
5
A61862
QUADRANT
- range shift lever, Includes: Ref. 6
1шт.
6
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- quadrant
1шт.
7
A59775
ROD
- range shift
1шт.
8
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - range shift rod
1шт.
9
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.
1шт.
10
A59258
PIN
- range shift linkage
1шт.
11
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
1шт.
12
132-30
COTTER PIN,3/32" x 1 1/4"
Pin, Split (Cotter), 3/32" x 1 1/4"
2шт.
13
A59666
LEVER
- range shift
1шт.
14
A59594
RING
SNAP RING - range shift lever
1шт.
17
A60360
LEVER
- hand, gear shift
1шт.
18
A62078
KNOB
- gear shift lever
2шт.
19
A59662
WASHER
- gear shift lever
2шт.
20
A61874
QUADRANT
- reverse gear shift, Includes: Ref. 21
1шт.
21
A61866
BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L
- quadrant
1шт.
22
A60358
ROD
- reverse shift
1шт.
23
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - gear shift rod
1шт.
24
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.
1шт.
25
A59258
PIN
- gear shift linkage
2шт.
26
132-30
COTTER PIN,3/32" x 1 1/4"
Pin, Split (Cotter), 3/32" x 1 1/4"
2шт.
27
A60369
LEVER
- reverse shift
1шт.
28
B18208
SNAP RING,#100, Ext
reverse lever #100, Ext
1шт.
29
A59592
SHAFT
- internal range shift
1шт.
30
A59032
SHAFT
ASSY. - external gear shift, w/bushing
1шт.
33
A61869
QUADRANT
- gear shift, 1st & 2nd, Includes: Ref. 34
1шт.
34
A61871
BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L
- quadrant
1шт.
35
A60389
ROD
- gear shift, 1st & 2nd
1шт.
36
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - gear shift
1шт.
37
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.
1шт.
38
A59258
PIN
- gear shift linkage
2шт.
39
132-30
COTTER PIN,3/32" x 1 1/4"
Pin, Split (Cotter), 3/32" x 1 1/4"
2шт.
40
A60369
LEVER
- shift, 1st & 2nd
1шт.
41
B18208
SNAP RING,#100, Ext
lever #100, Ext
2шт.
42
A61864
QUADRANT
- gear shift, 3rd & 4th, Includes: Ref. 43
1шт.
43
A61866
BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L
- quadrant
1шт.
44
A59775
ROD
- gear shift, 3rd & 4th
1шт.
45
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - gear shift
1шт.
46
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.
1шт.
47
A59258
PIN
- gear shift linkage
2шт.
48
132-30
COTTER PIN,3/32" x 1 1/4"
Pin, Split (Cotter), 3/32" x 1 1/4"
2шт.
49
A60363
LEVER
- gear shift, 3rd & 4th
1шт.
50
A59594
RING
- shift lever
1шт.
51
A58245
SHAFT
ASSY. - external gear shift lever, w/bushing
1шт.
52
A59590
LEVER
SHAFT - internal gear shift lever
1шт.
Выбрано товаров: 48
