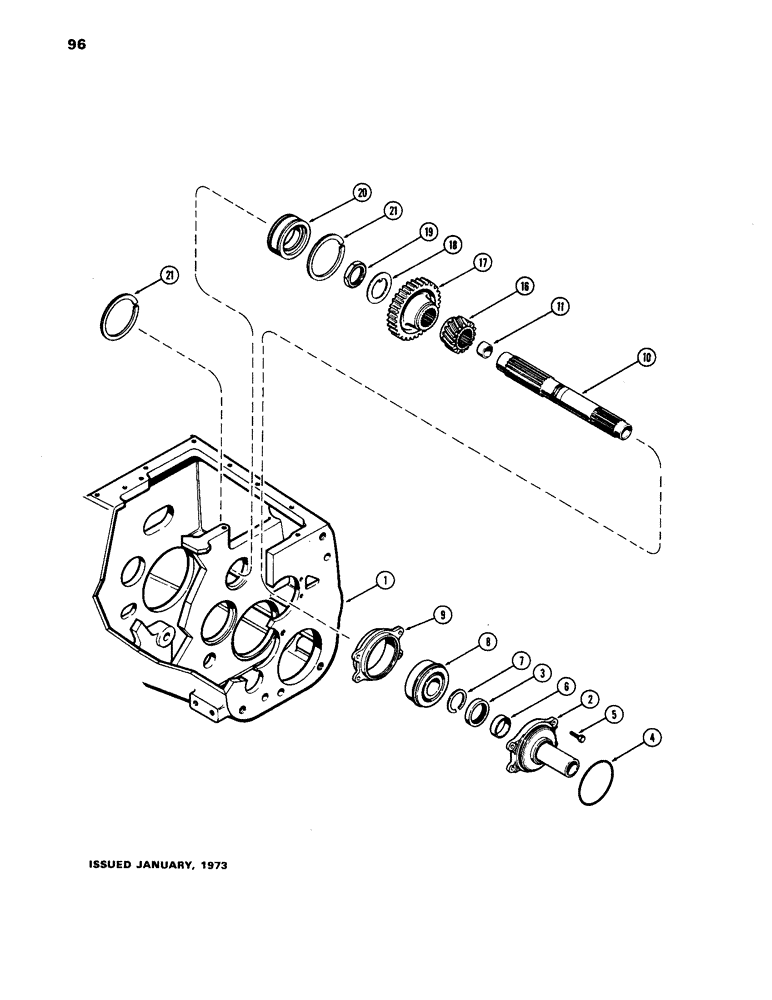

Запчасти Case IH 1170 (096) - RANGE SHAFT AND GEARS (06) - POWER TRAIN

1

A58971

HOUSING - transmission

1шт.

2

A57698

CARRIER

ASSY. - range drive shaft bearing, Includes: Ref. 3

1шт.

3

A60076

OIL SEAL

oil

1шт.

4

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - 4-1/4 x 4-1/2 x 1/8"

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

4шт.

6

A57697

SLEEVE

wear, oil seal

1шт.

7

A27085

RING

range shaft bearing

1шт.

8

39320

BALL BEARING,45mm ID x 106.38mm OD x 39.69mm W

ball, front

1шт.

9

A32791

CARRIER

bearing, front

1шт.

10

A61603

SHAFT

range drive, Includes: Ref. 110

1шт.

11

A28235

BUSHING

1-1/8 x 1-1/4 x 3/4"

1шт.

16

A61605

drive, low-range (21 teeth)

1шт.

17

A61606

drive, high-range (41 teeth)

1шт.

18

A32035

LOCK WASHER

seat high-range shaft

1шт.

19

A32034

NUT

lock, shaft

1шт.

20

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

roller, rear

1шт.

21

A28153

RING

bearing retaining

2шт.
