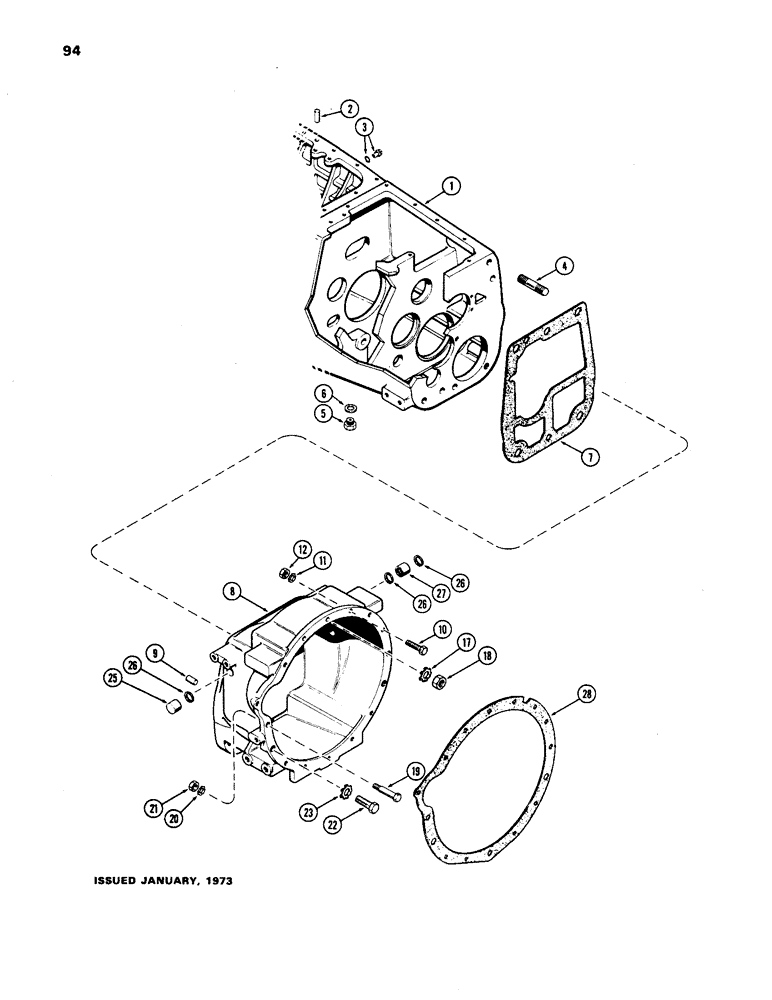

Запчасти Case IH 1170 (094) - CLUTCH AND TRANSMISSION HOUSING (06) - POWER TRAIN

1

A58971

HOUSING - transmission

1шт.

2

A7077

DOWEL

PIN - dowel, 1/2 x 1-3/8"

2шт.

3

A58420

GAUGE

ASSY. - oil sight, w/"O" ring (Glass)

2шт.

4

A7073

STUD

- 7/8" N.F. x 4"

4шт.

5

A14280

PLUG

- drain, 3/4"

3шт.

6

A58608

GASKET

- drain plug

3шт.

7

A58973

GASKET

- clutch housing to transmission housing

1шт.

8

A62385

HOUSING - clutch (Replaces A58169)

1шт.

9

A28269

PIN

- dowel, 3/4 x 1-1/4"

2шт.

10

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

8шт.

10

113-465

BOLT

- 1/2 x 2" N.C. hex.

2шт.

10

113-466

BOLT

- 1/2 x 2-1/4" N.C. hex.

1шт.

11

A34650

LOCK WASHER

- shakeproof, 1/2" ext.

1шт.

12

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex.

1шт.

17

A57961

LOCK WASHER

- Shakeproof, 7/8" ext.

4шт.

18

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex.

4шт.

19

A61040

STEP BOLT

BOLT - 1/2 x 3" N.C. hex., shoulder

1шт.

19

A61041

STEP BOLT

BOLT - 1/2 x 2-3/16" N.C. hex., shoulder

1шт.

20

A34650

LOCK WASHER

- Shakeproof, 1/2" ext.

2шт.

21

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" N.C. hex.

2шт.

22

113-753

BOLT - 3/4 x 2-1/4" N.C. hex.

2шт.

23

A34651

LOCK WASHER

- Shakeproof, 3/4" ext.

2шт.

25

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle, clutch throwout shaft (closed end)

1шт.

26

A28211

OIL SEAL

- oil, throwout shaft, 1 x 1-1/4 x 1/8"

3шт.

27

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle, clutch throwout shaft (opened end)

1шт.

28

A58139

GASKET

- clutch, Serial Range: housing-engine

1шт.

A58620

PLUG,Cup, 3/4", Stainless

- trans. case, 3/4" cup plug (Not Illust.) (lower front face dowel hole)(8 speed mech. shift)

1шт.
