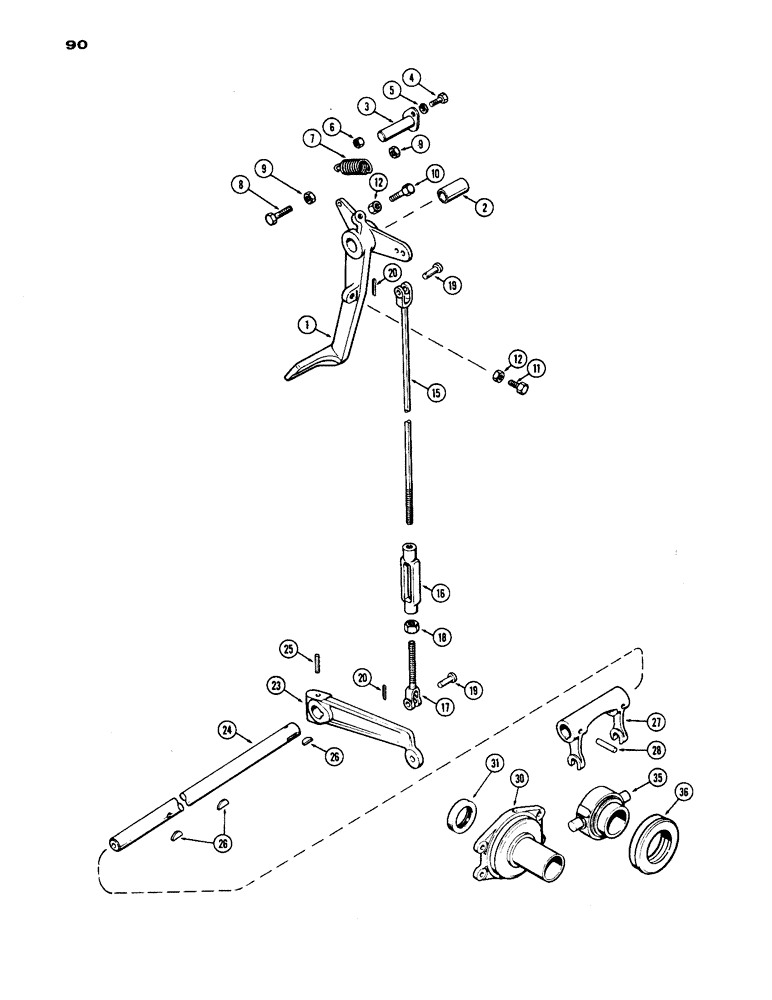

Запчасти Case IH 1170 (090) - CLUTCH RELEASE MECHANISM (06) - POWER TRAIN

1

A60300

PEDAL

ASSY. - foot clutch, Includes: Ref. 2

1шт.

2

A59475

BUSHING

- clutch pedal

1шт.

3

A60305

SHAFT

- pivot, clutch pedal

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

5

92-5

LOCK WASHER,5/16"

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

7

A59470

SPRING

- tension, clutch return

1шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Spring anchor Hex, 3/8"-16 x 1 3/4", G5

1шт.

9

25-145

JAM NUT,Jam, 5/16"-18, G5

- 3/8" N.C. hex., jam

2шт.

10

A59472

BOLT

- stop, clutch pedal

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

2шт.

15

A60312

LINK

- upper, clutch adjusting

1шт.

16

A60303

TURNBUCKLE

- clutch adjusting links

1шт.

17

A60313

LINK

- lower, clutch adjusting

1шт.

18

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

19

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

23

A59191

LEVER

- foot clutch release

1шт.

24

A58979

SHAFT - clutch release (19-5/16" long. Use w/A58169 hsg.)

1шт.

24

A62484

SHAFT

- clutch release (18-13/16"long. Use w/A62485 hsg.)

1шт.

25

138-160

LOCK PIN,5/16" x 2", Slotted

Pin, 5/16" x 2", Slotted

1шт.

26

126-24

WOODRUFF KEY,#15, 1/4" x 1"

3шт.

27

A58980

YOKE

- clutch release shaft

1шт.

28

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, 5/16" x 1 5/8", Slotted

1шт.

30

A57698

CARRIER

ASSY. - range drive shaft bearing, Includes: Ref. 31

1шт.

31

A60076

OIL SEAL

- oil, range drive shaft

1шт.

35

A57997

CARRIER

SLEEVE ASSY. - clutch release, Includes: Ref. 36

1шт.

36

A58982

BALL BEARING,2.5" ID x 4.062" OD x 0.885"

BEARING - clutch release

1шт.
