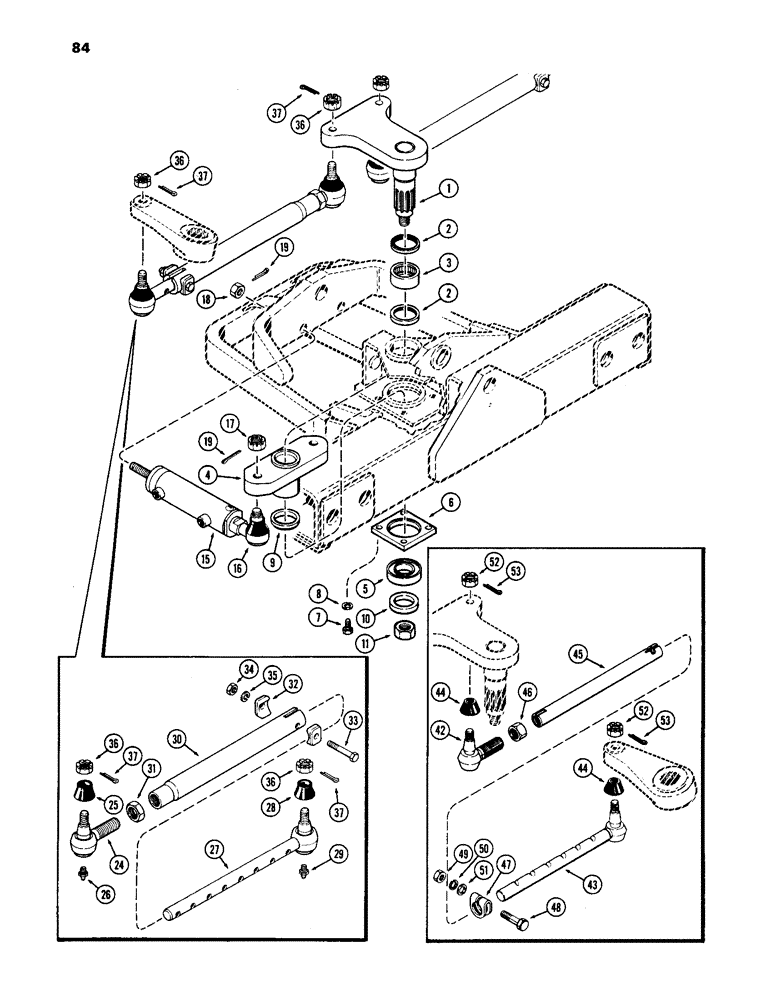

Запчасти Case IH 1170 (084) - CENTER STEERING ARMS AND CYLINDER (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A63985
STEERING ARM
ARM - center steering, upper (Replaces A61977)
1шт.
2
A61414
OIL SEAL
- oil (2-1/8 x 2-1/2 x 3/16")
2шт.
3
A61415
NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W
BEARING - needle
1шт.
4
A62231
ARM
- center steering, lower
1шт.
5
A61888
BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"
BEARING - ball
1шт.
6
A62212
PLATE
- bearing end cap
1шт.
7
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
8
92-6
LOCK WASHER,3/8"
4шт.
9
A62233
WASHER
- center steering shaft
1шт.
10
195-2098
WASHER,15/16" x 2" x .238"
- 15/16 x 2 x 3/16"
1шт.
11
A59649
FASTENER
NUT - 7/8" N.C. hex., two way lock
1шт.
15
A62067
CYLINDER
ASSY. - steering (See Figure 80)
2шт.
16
A31186
BOOT
SEAL - weather
2шт.
17
25-1310
SLOTTED NUT,5/8"-18, G5
NUT - 5-8" N.F. hex., sltd.
2шт.
18
25-1112
NUT,3/4"-16, G5
- 3/4" N.F. hex.
2шт.
19
132-49
COTTER PIN,1/8" x 1 1/8"
Pin, Split (Cotter), 1/8" x 1 1/8"
4шт.
24
A43376
JOINT
END ASSY. - tie rod, inner, w/ lubrication joints, 1st used tractor s/n 8678074, Includes: Ref. 25 and 26
2шт.
25
A31186
BOOT
- dust, tie rod end (rubber), w/ lubrication joints, 1st used tractor s/n 8678074, Includes: Ref. 26
1шт.
26
219-86
LUBE NIPPLE,1/8" NPTF
FITTING - grease, 1/8" P.T., str., tie rods w/ lubrication joints, 1st used tractor s/n 8678074
1шт.
27
A43374
BALL JOINT
END ASSY. - tie rod, outer, w/ lubrication joints, 1st used tractor s/n 8678074, Includes: Ref. 28 and 29
2шт.
28
A31186
BOOT
- dust, tie rod end (rubber), w/ lubrication joints, 1st used tractor s/n 8678074
1шт.
29
219-86
LUBE NIPPLE,1/8" NPTF
FITTING - grease, 1/8" P.T., str., tie rods w/ lubrication joints, 1st used tractor s/n 8678074
1шт.
30
A137101
TUBE
- tie rod, w/ lubrication joints, 1st used tractor s/n 8678074
2шт.
31
A43379
JAM NUT
- lock, tie rod end, w/ lubrication joints, 1st used tractor s/n 8678074
2шт.
32
A43369
CLAMP
- tube, tie rods w/ lubrication joints, 1st used tractor s/n 8678074
4шт.
33
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
Tube clamp, tie rods w/ lubrication joints, 1st used tractor S/N 8678074 Hex, 3/8"-16 x 2 1/2", G5
2шт.
34
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , Tie rods w/ lubrication joints, 1st used tractor S/N 8678074 3/8"-16, G5
2шт.
35
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Tie rods w/ lubrication joints, 1st used tractor S/N 8678074 3/8"
2шт.
36
25-1310
SLOTTED NUT,5/8"-18, G5
NUT - tie rod ends, 5/8" N.F. hex., sltd., w/ lubrication joints, 1st used tractor s/n 8678074
4шт.
37
132-49
COTTER PIN,1/8" x 1 1/8"
Pin, Split (Cotter), , Tie rods w/ lubrication joints, 1st used tractor s/n 8678074 1/8" x 1 1/8"
4шт.
42
A41512
ROD
END - tie rod, w/o lubrication joints, used prior to tractor s/n 8678074
2шт.
43
A59658
STEERING TIE-ROD
ROD - tie, w/o lubrication joints, used prior to tractor s/n 8678074
2шт.
44
A41515
SEAL
- end, dust (rubber), w/o lubrication joints, used prior to tractor s/n 8678074
4шт.
45
A59659
TUBE
- tie rod, w/o lubrication joints, used prior to tractor s/n 8678074
2шт.
46
A41511
NUT
- 1-1/16" N.C. hex. jam, w/o lubrication joints, used prior to tractor s/n 8678074
2шт.
47
A41561
CLAMP
- tie rod, w/o lubrication joints, used prior to tractor s/n 8678074
2шт.
48
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- 1/2 x 2-1/2" N.C. hex., w/o lubrication joints, used prior to tractor s/n 8678074
2шт.
49
25-108
NUT,1/2"-13, G5
- 1/2" N.C. hex., w/o lubrication joints, used prior to tractor s/n 8678074
2шт.
50
92-8
LOCK WASHER,1/2"
w/o lubrication joints, used prior to tractor s/n 8678074 1/2"
2шт.
51
95-8
WASHER,1/2"
(9/16 x 1-3/8 x 7/64"), w/o lubrication joints, used prior to tractor s/n 8678074 1/2"
2шт.
52
25-1310
SLOTTED NUT,5/8"-18, G5
NUT - 5/8" N.F. hex., sltd., w/o lubrication joints, used prior to tractor s/n 8678074
4шт.
53
132-49
COTTER PIN,1/8" x 1 1/8"
Pin, Split (Cotter), , w/o lubrication joints, used prior to tractor s/n 8678074 1/8" x 1 1/8"
4шт.
Выбрано товаров: 42
