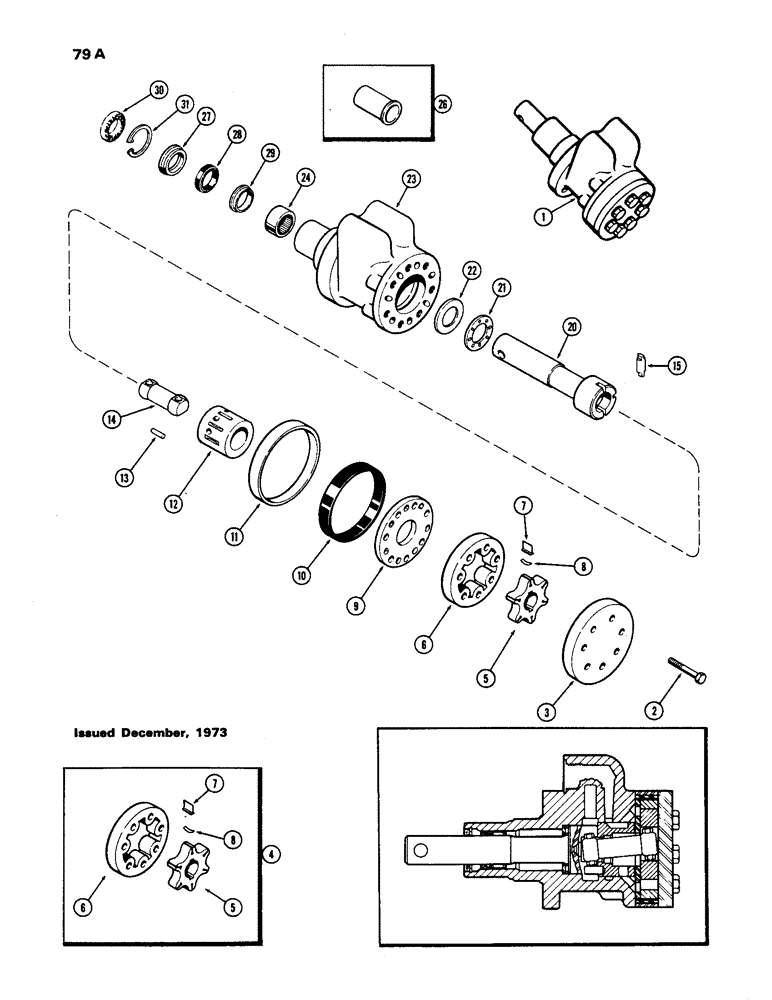

Запчасти Case IH 1170 (079A) - A60202 STEERING HAND PUMP, WITH 18 TO 1 RATIO (05) - STEERING

1

A60202

PUMP ASSY. - steering (Ross Gear #P-08005), Includes: Ref. 2 - 8

1шт.

2

F19642

BOLT - pump end cover

7шт.

3

F19641

COVER - plump end

1шт.

4

A43545

ROTOR

SET - (spring loaded)(Replaces A42214), Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

6

NSS

NOT SOLD SEPARAT

STATOR - pump

1шт.

7

NSS

NOT SOLD SEPARAT

VANE - pump rotor

6шт.

8

A42219

SPRING

- pump vane sealing

6шт.

9

A42206

SPACER

- pump rotor

1шт.

10

F19640

SEAL

- pump rotor (3-1/4" O.D. x 43/64")

1шт.

11

F19639

RETAINER

- seal - seal, pump rotor (3-1/2" O.D. x 43/64")

1шт.

12

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump body

1шт.

13

F19631

PIN

- pump commutator

1шт.

14

F19635

LINK

- pump drive

1шт.

15

F19636

PIN

- pump link

2шт.

20

F12500

SHAFT - pump drive

1шт.

21

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle, thrust, pump shaft

1шт.

22

F19634

BEARING WASHER

RACE - bearing thrust, pump shaft

1шт.

23

A42213

BODY - pump w/needle bearing

1шт.

24

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle, pump shaft to body

1шт.

A44582

REPAIR KIT

KIT - seal, steering hand pump (Replaces A43747), Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

27

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

28

NSS

NOT SOLD SEPARAT

RING - shaft seal

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

31

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, spacer washer

1шт.
