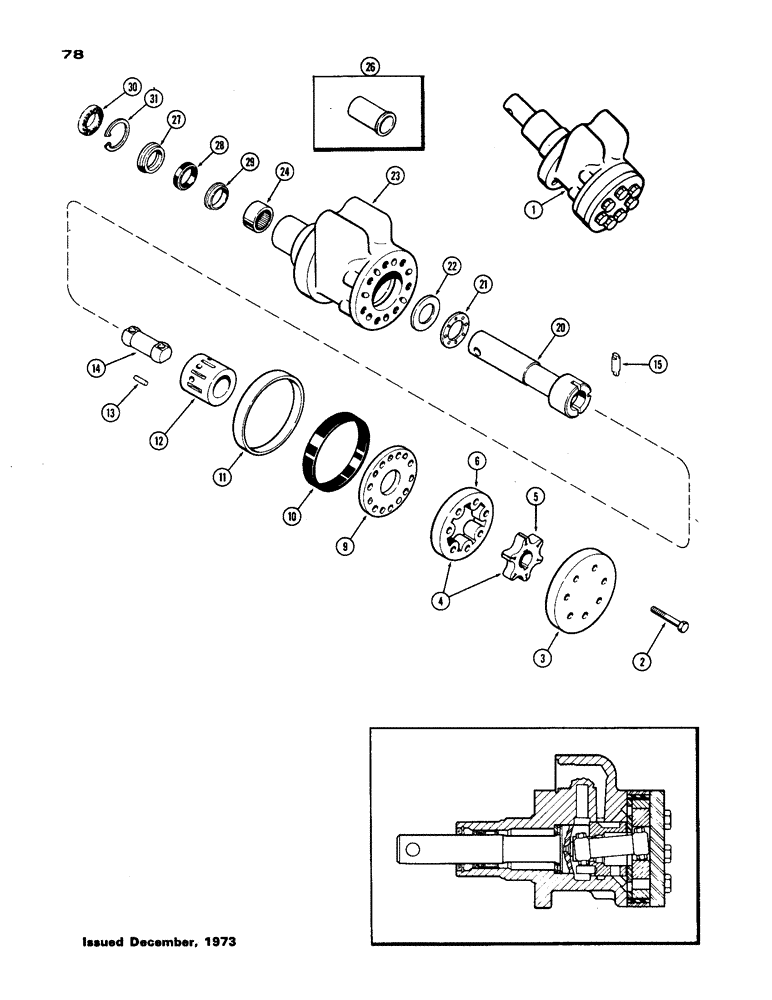

Запчасти Case IH 1170 (078) - A62319 STEERING HAND PUMP, WITH 12 TO 1 RATIO (05) - STEERING

1

A62319

PUMP ASSY. - steering (Ross Gear #P12001), Includes: Ref. 2 - 30

1шт.

2

A43272

BOLT - pump end cover (5/16 x 2" N.C. hex.)

7шт.

3

F19641

COVER - pump end

1шт.

4

A43270

ROTOR KIT, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - (Order A43270)

1шт.

6

NSS

NOT SOLD SEPARAT

STATOR - (Order A43270)

1шт.

9

A42206

SPACER

- pump rotor

1шт.

10

A43271

SEAL

- pump rotor (3-1/4" O.D. x 1")

1шт.

11

A43269

RETAINER

- seal, pump rotor (3-1/2" O.D. x 29/32")

1шт.

12

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump body

1шт.

13

F19631

PIN

- pump commutator

1шт.

14

F19635

LINK

- pump drive

1шт.

15

F19636

PIN

- pump link

2шт.

20

F12500

SHAFT - pump drive

1шт.

21

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle thrust

1шт.

22

F19634

BEARING WASHER

RACE - bearing, thrust.

1шт.

23

A42213

BODY - pump with needle bearing

1шт.

24

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle

1шт.

A44582

REPAIR KIT

KIT - seal, steering hand pump (Replaces A43747), Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

27

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

28

NSS

NOT SOLD SEPARAT

RING - shaft seal

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

30

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, spacer washer

1шт.
