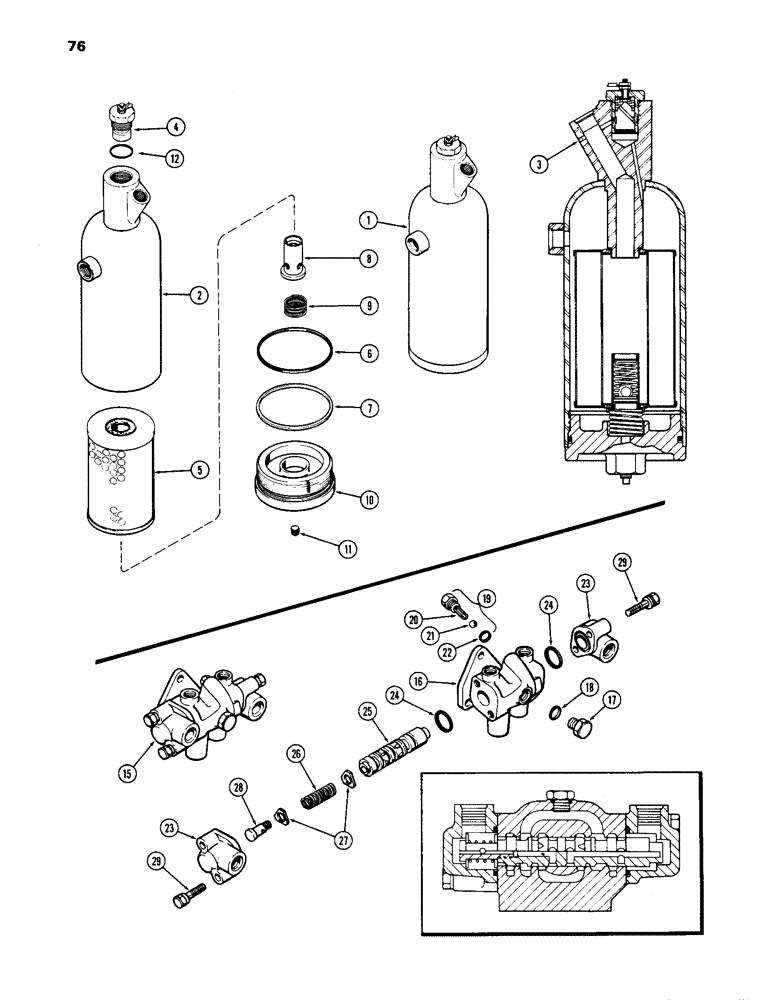

Запчасти Case IH 1170 (076) - A61459 OIL FILTER (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A61459
FILTER ASSY. - (10 micron), Includes: Ref. 2 - 12
1шт.
2
A61460
HOUSING ASSY.
TUBE ASSY. - filter, Includes: Ref. 3
1шт.
3
211-4
BALL
- 5/32" dia
1шт.
4
A61463
SWITCH
- differential pressure
1шт.
5
A62871
ELEMENT
KIT - (Replaces A61235), Includes: Ref. 6 and 7
1шт.
6
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - 4 x 4-1/4 x 1/8"
1шт.
7
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
4 x 4-1/4 x 1/16" leather
1шт.
8
D37207
VALVE
ASSY. - relief
1шт.
9
D31212
SPRING
- retaining
1шт.
10
A60765
CAP
- end
1шт.
11
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, 1/8" sq. hd..
1шт.
12
A58602
O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro
"O" RING - 15/16 X 1-1/16 X 1/16"
1шт.
15
A60207
VALVE
ASSY. - steering, A60207, Includes: Ref. 16 - 29
1шт.
16
NSS
NOT SOLD SEPARAT
BODY - valve (Order A60207), A60207 steering
1шт.
17
F83122
PLUG
ASSY. - bleed, A60207 steering valve, Includes: Ref. 18
1шт.
18
F19628
O-RING
"O" RING - 9/32 x 11/32 x 1/16", A60207 steering valve
1шт.
19
F82943
VALVE
KIT - plug, ball & roll pin, A60207 steering valve, Includes: Ref. 20 - 22
1шт.
20
138-60
LOCK PIN,1/8" x 15/16", Slotted
PIN, , A60207 steering valve 1/8" x 15/16", Slotted
1шт.
21
211-7
BALL,1/4" Dia
A60207 steering valve 1/4" Dia
1шт.
22
F19630
O-RING
"O" RING - 9/32 x 11/32 x 1/16", A60207 steering valve
1шт.
23
F19624
CAP
- valve end, A60207 steering
2шт.
24
F21003
O-RING,1.237" ID x 1.443" OD
"O" RING - 1-15/64 x 1-21/64 x 7/64", A60207 steering valve
2шт.
25
NSS
NOT SOLD SEPARAT
SPOOL - valve (Order A60207), A60207 steering
1шт.
26
A42201
SPRING
- centering, A60207 steering valve
1шт.
27
F19619
WASHER
- centering, A60207 steering valve
2шт.
28
F19623
SCREW,3/8" - 24 x 15/16"
- centering, A60207 steering valve
1шт.
29
L30404
CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"
BOLT ASSY. - w/washer, 3/8 N.C. Special, A60207 steering valve
4шт.
Выбрано товаров: 27
