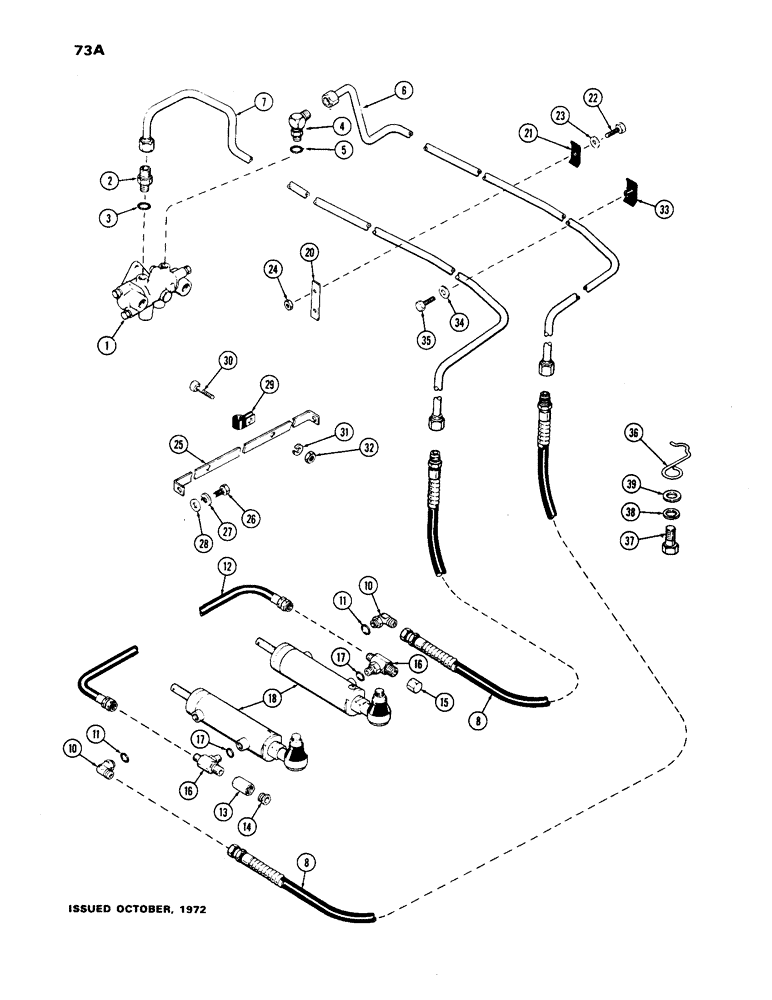

Запчасти Case IH 1170 (073A) - SINGLE ACTING STEERING CYLINDER KIT (05) - STEERING

1

A60207

VALVE

ASSY. - steering (See Figure 76)

1шт.

2

A60705

CONNECTOR - valve to tube (9/16" N.F. x 7/8" N.F.)

1шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

4

A61975

ELBOW ASSY. - valve to tube (9/16" N.F. x 7/16" N.F.)

1шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

A62017

HOSE - steering valve to cylinder hose, upper

1шт.

7

A62018

TUBE - steering valve to cylinder hose, lower

1шт.

8

A62913

HOSE

-, Serial Range: tube-cylinder

2шт.

A65807

KIT

- conversion, steering cylinder, Includes: Ref. 10 - 15

1шт.

10

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- hose to cyl., 9/16 " - 18 x 3/4"-16

2шт.

12

A65808

HOSE - crossover (20" lg.)(Replaces A62360)

1шт.

13

A65810

ADAPTER - breather (R.H. tee fitting)

1шт.

14

A65811

BREATHER - cylinder (R.H. tee fitting)

1шт.

15

218-755

CAP,37 Degree, 3/4"-16

(LH Tee fitting) 37º, 3/4"-16

1шт.

16

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

- 9/16 c 9/16 x 3/4", Includes: Ref. 17

2шт.

18

A62067

CYLINDER

- steering (See Figure 80)

2шт.

20

A60223

PLATE - tube mounting clip

1шт.

21

A60224

CLAMP

CLIP - tube mounting

1шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

23

195-18

WASHER,1/4"

- plain, 9/32 x 5/8 x 1/16"

1шт.

24

25-104

NUT,1/4"-20, G5

1шт.

25

A60242

SUPPORT -, Serial Range: tube-grille

1шт.

26

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- plain, 3/8 x 7/8 x 5/64"

2шт.

29

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- steering tube to support

2шт.

30

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

32

25-104

NUT,1/4"-20, G5

2шт.

33

A60225

CLAMP - tube mounting

1шт.

34

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

35

195-18

WASHER,1/4"

- plain, 9/32 x 5/8 x 1/16"

1шт.

36

A61453

GUIDE - steering hoses

2шт.

37

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

38

A34651

LOCK WASHER

- lock (3/4 " ext. Shakeproof)

2шт.

39

195-45

WASHER,3/4"

2шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 13/16 x 5/64"

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 31/64 x 13/16 x 5/64"

2шт.
