Запчасти Case IH 1170 (066) - RIGID STEERING (05) - STEERING

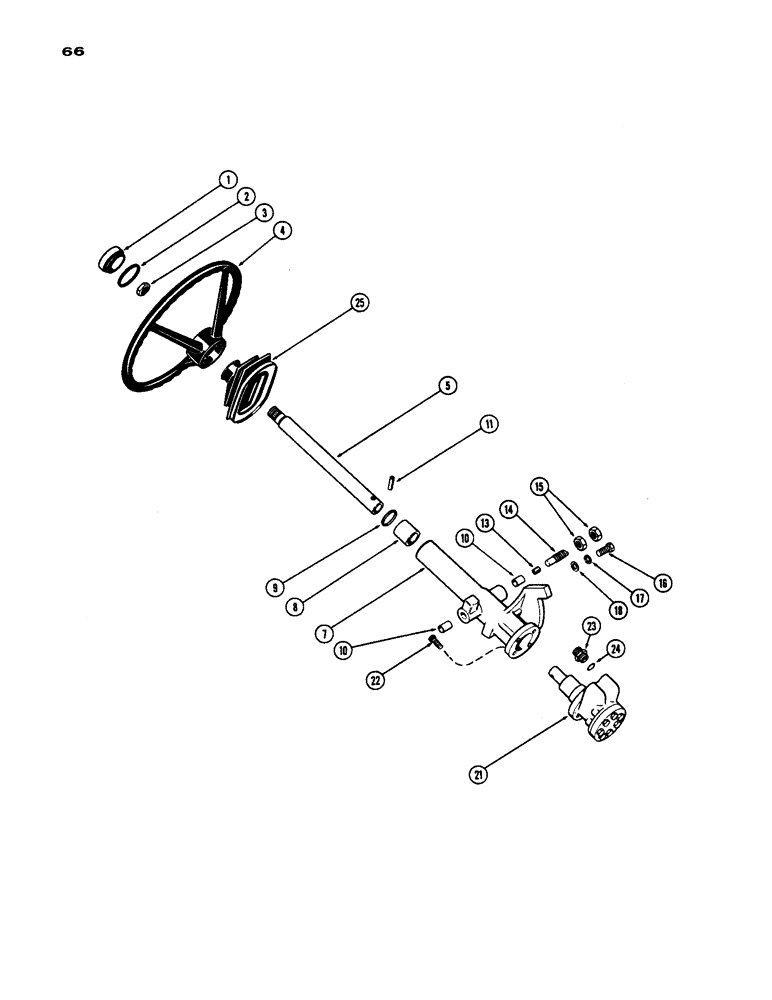

Схема запчастей Case IH 1170 - (066) - RIGID STEERING (05) - STEERING
1
4
5
7
16
17
22
23
8
9
11
10
15
3
14
18
2
25
10
24
13
21

Артикул

Название

Примечание

Количество

1

A62210

PLUG

MEDALLION - steering wheel

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

RING - retaining, medallion

1шт.

3

A14567

JAM NUT

- steering, Serial Range: wheel-shaft

1шт.

4

A61007

RIM

WHEEL - steering

1шт.

5

A59810

SHAFT - steering column

1шт.

A61734

STEERING COLUMN

COLUMN ASSY. - steering, Includes: Ref. 7 - 10

1шт.

7

NSS

NOT SOLD SEPARAT

COLUMN - steering (Order A61734)

1шт.

8

A59808

BEARING

- steering column

1шт.

9

A61736

WIPER SEAL

- steering column

1шт.

10

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- steering column stud

2шт.

11

138-173

LOCK PIN,3/8" x 1 3/8", Slotted

PIN, 3/8" x 1 3/8", Slotted

1шт.

13

A59842

BUMPER

SNUBBER - mounting stud

2шт.

14

A59163

STUD

- steering column mounting

2шт.

15

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex., jam

4шт.

16

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

1шт.

21

A62319

PUMP ASSY. - steering hand (See Figure 78)(12:1 ratio)

1шт.

21

A60202

PUMP ASSY. - steering hand (See Figure 79A)(18:1 ratio)

1шт.

22

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

SCREW - 5/16 x 1" cap

4шт.

23

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - hose, Incl. Ref 24

2шт.

25

A61910

BOOT

- steering column (Rubber)

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

Выбрано товаров: 23
