Запчасти Case IH 1170 (064) - LIGHTING EQUIPMENT, (451B) DIESEL ENGINE, TAIL AND WARNING LAMP (04) - ELECTRICAL SYSTEMS

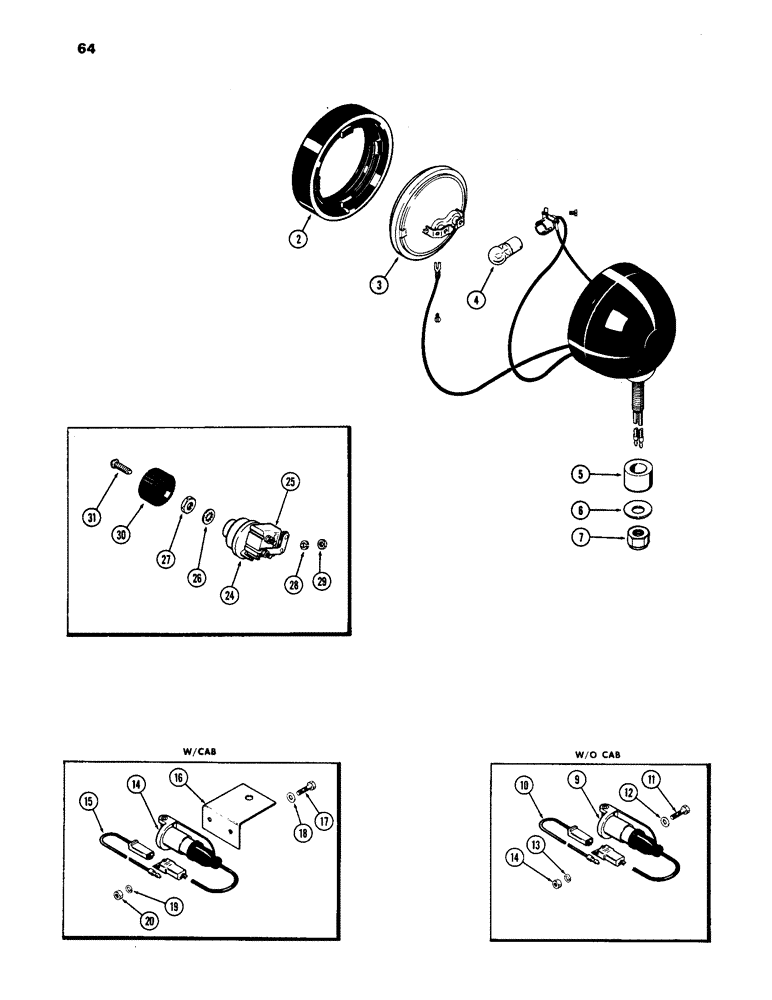

Схема запчастей Case IH 1170 - (064) - LIGHTING EQUIPMENT, (451B) DIESEL ENGINE, TAIL AND WARNING LAMP (04) - ELECTRICAL SYSTEMS
14
9
26
25
18
31
13
10
12
6
16
9
19
5
11
20
24
30
14
29
15
28
17
7
4
2
27

Артикул

Название

Примечание

Количество

A59703

LAMP

- rear flood & tail, Includes: Ref. 2 - 5

1шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A42295

BULB

- sealed beam

1шт.

4

B50223

BULB

- lamp, tail

1шт.

5

D37048

BUSHING

- pivot, lamp mounting

1шт.

6

D37049

WASHER

- wave, tail lamp mtg.

1шт.

7

129-125

NUT,1/2"-20, G5

1шт.

A60512

SOCKET/RECEPTACLE

ATTACHMENT - socket, rear auxiliary outlet w/o cab, Includes: Ref. 9 - 14

1шт.

9

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet w/o cab

1шт.

10

A65060

ELECTRICAL WIRE

WIRE - lead, rear auxiliary outlet w/o cab

1шт.

11

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- socket, #10-24 x 3/4" hex., mach., rear auxiliary outlet w/o cab

2шт.

12

195-512

WASHER,#10

- 7/32 x 1/2 x 1/16", rear auxiliary outlet w/o cab

2шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Rear auxiliary outlet w/o cab #10

2шт.

14

129-17

NUT,Hex, #10 - 24

NUT - hex., rear auxiliary outlet w/o cab #10-24

2шт.

A61680

SCREW

ATTACHMENT - socket, w/ cab, Includes: Ref. 14 - 20

1шт.

14

A65059

SOCKET/RECEPTACLE

SOCKET - rear auxiliary outlet, w/ cab

1шт.

15

A65060

ELECTRICAL WIRE

WIRE - lead, w/ cab

1шт.

16

A61679

BRACKET - socket mounting, w/ cab

1шт.

17

163-4

SCREW,Hex, #10 - 32 x 5/8"

- #10 x 5/8" N.F. hex., mach., w/ cab

2шт.

18

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", w/ cab

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , w/Cab #10

2шт.

20

129-37

NUT,#10-32

w/cab #10-32

2шт.

24

A59694

SWITCH

ASSY. - light, Includes: Ref. 25

1шт.

25

A43658

BREAKER

- circuit (30 amp.), light switch

1шт.

26

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - Shakeproof, 5/8" int., light switch

1шт.

27

A20467

NUT

- light switch lock

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Light switch #10

2шт.

29

129-37

NUT,#10-32

Light switch #10-32

2шт.

30

A59695

KNOB

- light switch

1шт.

31

A59696

SCREW,#8 - 32 x 5/8"

- light switch knob

1шт.

Выбрано товаров: 30
