Запчасти Case IH 1170 (063A) - LIGHTING EQUIPMENT, CULTIVATING LAMPS, W/12" FENDERS (04) - ELECTRICAL SYSTEMS

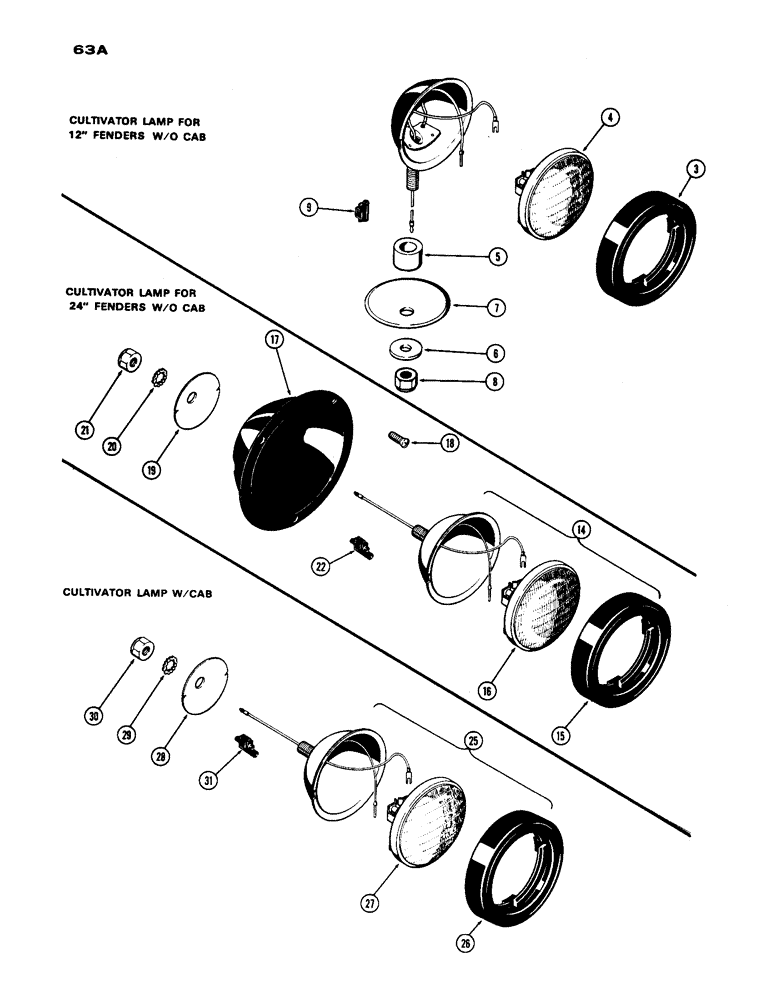

Схема запчастей Case IH 1170 - (063A) - LIGHTING EQUIPMENT, CULTIVATING LAMPS, W/12" FENDERS (04) - ELECTRICAL SYSTEMS
21
7
14
31
6
29
30
17
3
28
8
19
27
22
15
4
20
16
5
18
26
25
9

Артикул

Название

Примечание

Количество

A60510

LAMP

ATTACHMENT - lamp, without cab, Includes: Ref. 3 - 9

1шт.

A59724

HEADLAMP

LAMP - front cultivator, without cab, Includes: Ref. 3 - 5

2шт.

3

A25213

RETAINER

- sealed beam, without cab

1шт.

4

A42294

SEALED BEAM UNIT

BULB - sealed beam, without cab

1шт.

5

D37048

BUSHING

- lamp pivot, without cab

1шт.

6

D37049

WASHER

- front cultivator mounting, without cab

2шт.

7

A59725

SPACER

BRACE - front cultivator, without cab

2шт.

8

129-125

NUT,1/2"-20, G5

w/o Cab 1/2"-20, G5

2шт.

9

A62556

CONNECTOR, ELEC

CONNECTOR - Not used w/single beam head lamp, without cab

2шт.

A60511

LAMP

ATTACHMENT - lamp, w/ 24" fenders, w/o cab, Includes: Ref. 14 - 22

1шт.

14

A59723

LAMP

- front cultivator, w/ 24" fenders, w/o cab, Includes: Ref. 15 and 16

2шт.

15

A25213

RETAINER

- sealed beam, w/ 24" fenders, w/o cab

1шт.

16

A42294

SEALED BEAM UNIT

BULB - sealed beam, w/ 24" fenders, w/o cab

1шт.

17

A59698

BEZEL

- cultivator lamp mtg., R.H., w/ 24" fenders, w/o cab

1шт.

18

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

BEZEL - cultivator lamp mtg., L.H., w/ 24" fenders, w/o cab

1шт.

19

A59702

RETAINER

- front cultivator lamp, w/ 24" fenders, w/o cab

2шт.

20

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , for 24" fenders, w/o Cab Ext-Int Tooth, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/ 24" fenders, w/o Cab 1/2"-13, G5

2шт.

22

A62556

CONNECTOR, ELEC

CONNECTOR - (Not used w/single beam head lamp), w/ 24" fenders, w/o cab

2шт.

A61753

ATTACHMENT

- lamp, w/ cab, Includes: Ref. 25 - 31

1шт.

25

A59723

LAMP

- front cultivator, w/ cab, Includes: Ref. 26 and 27

2шт.

26

A25213

RETAINER

- sealed beam, w/ cab

1шт.

27

A42294

SEALED BEAM UNIT

BULB - sealed beam, w/ cab

1шт.

28

A59702

RETAINER

- front cultivator lamp, w/ cab

2шт.

29

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

2шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.

31

A62556

CONNECTOR, ELEC

CONNECTOR - (Not used w/single beam head lamp), w/ cab

2шт.

Выбрано товаров: 27
