Запчасти Case IH 1170 (062) - LIGHTING EQUIPMENT, (451B) DIESEL ENGINE, HEAD LAMPS (04) - ELECTRICAL SYSTEMS

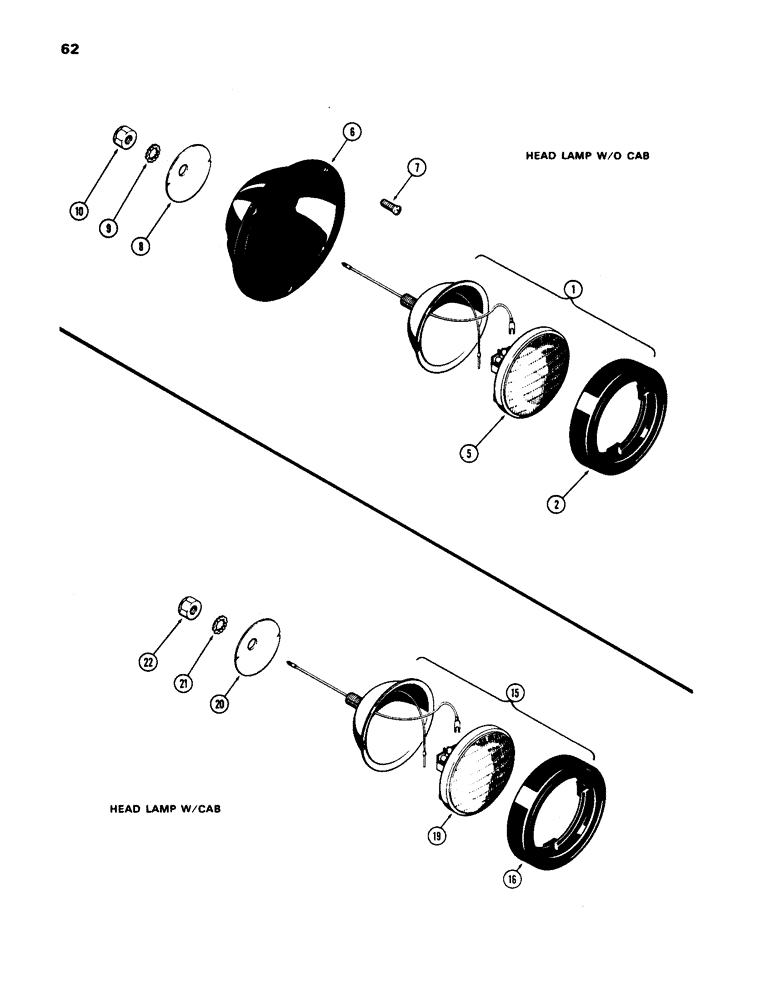

Схема запчастей Case IH 1170 - (062) - LIGHTING EQUIPMENT, (451B) DIESEL ENGINE, HEAD LAMPS (04) - ELECTRICAL SYSTEMS
1
16
6
7
9
20
15
22
8
21
10
2
19
5

Артикул

Название

Примечание

Количество

1

A59701

LAMP

- front head driving, without cab, Includes: Ref. 2 - 5

2шт.

2

A25213

RETAINER

- sealed beam, without cab

1шт.

5

A24572

LAMP

KIT - head lamp (seal beam unit), without cab

1шт.

6

A59698

BEZEL

- front head lamp mtg., right hand, without cab

1шт.

6

A59699

BEZEL

- front head lamp mtg., left hand, without cab

1шт.

7

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - bezel, #10-24 x 1/2" self-tapping, without cab

6шт.

8

A59702

RETAINER

- front head lamp, without cab

2шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - Shakeproof, 1/2" N.C. hex., without cab

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/o Cab 1/2"-13, G5

2шт.

15

A59701

LAMP

- front head driving, w/cab, Includes: Ref. 16 - 19

2шт.

16

A25213

RETAINER

- sealed beam, w/ cab

1шт.

19

A24572

LAMP

KIT - head lamp (Seal beam unit), w/ cab

1шт.

20

A59702

RETAINER

- front head lamp, w/ cab

2шт.

21

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"

2шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.

Выбрано товаров: 15
