Запчасти Case IH 1170 (060) - FLASHER LAMP, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

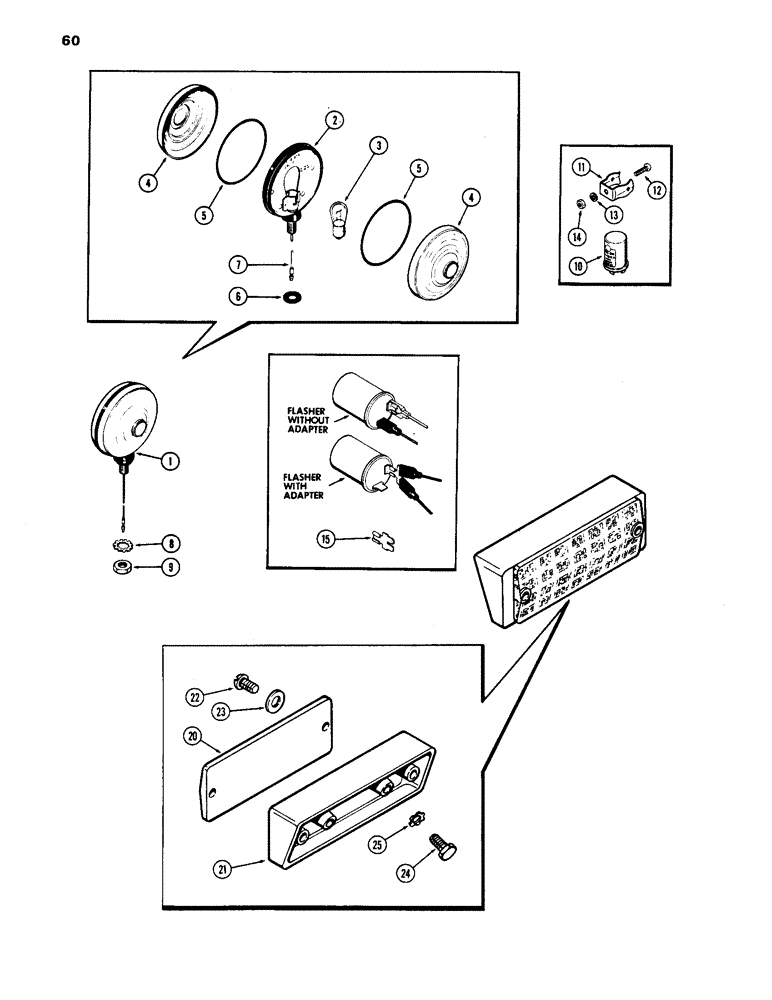

Схема запчастей Case IH 1170 - (060) - FLASHER LAMP, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
1
5
8
3
20
11
6
4
13
24
21
2
23
5
25
4
10
15
14
12
9
22
7

Артикул

Название

Примечание

Количество

1

A34853

LAMP

ASSY. - flasher, Includes: Ref. 2 - 7

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A34853)

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

A41261

LENS

- lamp

2шт.

5

NLS

NO LONGER SERVICED

"O" RING - lamp

2шт.

6

A41263

GASKET - lamp

1шт.

7

A41260

WIRE - lamp

1шт.

8

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - Shakeproof, 1/2" N.C. hex.

2шт.

9

129-125

NUT,1/2"-20, G5

2шт.

10

A34867

FLASHER UNIT

FLASHER - element

1шт.

11

A34869

BRACKET

- flasher element mounting

1шт.

12

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. re. hd. mach.

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

1шт.

15

A34862

KIT

ADAPTER KIT - flasher by-pass (required for steady light)(see inset)

1шт.

20

A62415

REFLECTOR

- red

2шт.

21

A62416

BRACKET

- reflector

2шт.

22

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - reflector to brkt. (#10 x 5/8" rd. hd., self tapping)

4шт.

23

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", reflector

4шт.

24

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - brkt. to fender (1/4 x 1/2" hex. hd. self tapping), reflector

4шт.

25

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext., reflector

4шт.

Выбрано товаров: 21
