Запчасти Case IH 1170 (055A) - A64907 STARTER, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

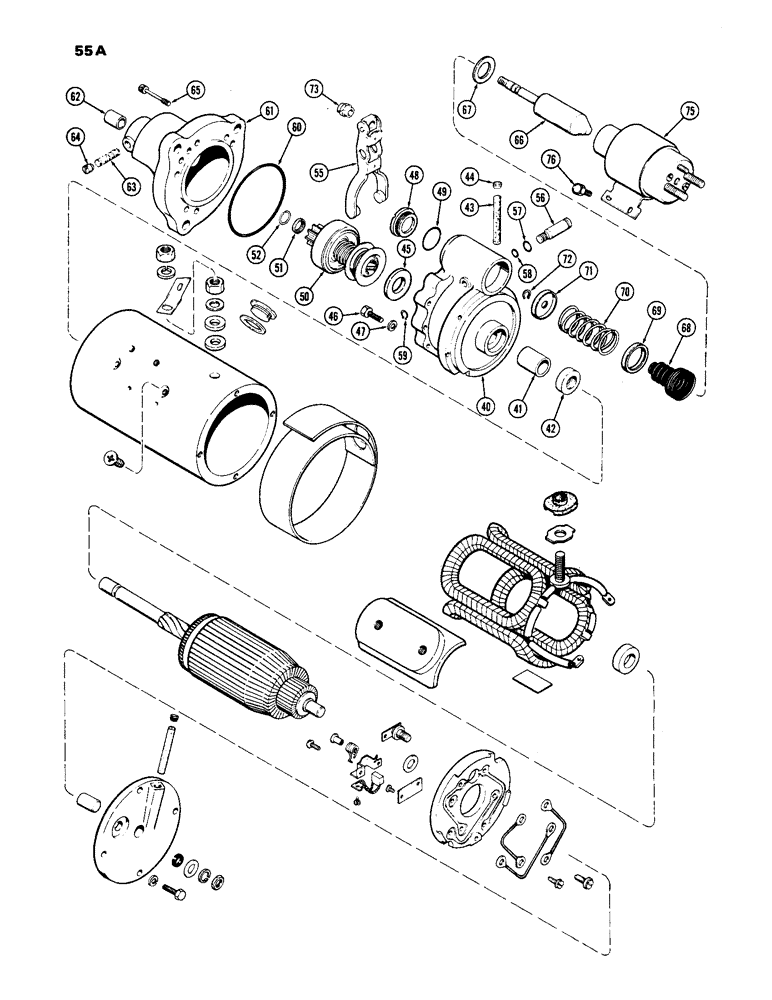

Схема запчастей Case IH 1170 - (055A) - A64907 STARTER, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
52
76
44
73
66
62
55
70
60
69
58
46
57
41
65
67
40
75
42
48
72
68
71
61
47
45
43
59
49
63
50
64
51
56

Артикул

Название

Примечание

Количество

A64907

ELECTRIC MOTOR

STARTER ASSY. - (Continued from Figure 54)

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

40

A43859

HOUSING

HOUSING ASSY. - shift lever, Includes: Ref. 41 - 45

1шт.

41

A40944

BUSHING

BUSHING - 3/4 x 7/8 x 3/4

1шт.

42

A25407

OIL SEAL

SEAL - oil (3/4 x 1-3/8 x 13/32")

1шт.

43

A41417

WICK

WICK - oil

1шт.

44

221-1849

PLUG

PLUG - 1/8" hex. sckt. hd., pipe

1шт.

45

R15043

WASHER

WASHER - brake, 25/32 x 2 x 3/32"

1шт.

46

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, , Lever housing attaching Hex, 1/4"-28 x 1", G5

5шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

48

R21587

PLUG

PLUG - inspection, lever housing

1шт.

49

A41924

GASKET

GASKET - plug, 1-23/64 x 1-9/16 x 3/32"

1шт.

50

A42331

DRIVE

DRIVE ASSY. - clutch

1шт.

51

R15049

COLLAR

COLLAR - pinion stop

1шт.

52

R15048

RING

RING - retainer, pinion stop

1шт.

55

A43852

LEVER

SHIFT LEVER ASSY.

1шт.

56

A43851

SHAFT

SHAFT - shift lever

1шт.

57

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - 23/64 x 33/64 x 1/16"

1шт.

58

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - 15/64 x 25/64 x 1/16"

1шт.

59

G46146

SNAP RING,#37, Ext

Ring, Snap, , shift lever attaching pin #37, Ext

1шт.

60

A43854

O-RING,3.237" ID x 0.106" THK

"O" RING - lever housing to drive housing

1шт.

61

A43858

HOUSING

HOUSING ASSY. - drive, Includes: Ref. 62 - 64

1шт.

62

A40868

BUSHING

BUSHING - armature (9/16 x 3/4 x 3/4")

1шт.

63

R15023

WICK

WICK - oil

1шт.

64

221-1849

PLUG

PLUG - 1/8: hex. sckt. hd., pipe

1шт.

65

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW - drive hsg., 1/4 x 7/8" N.F. sckt. hd. cap

6шт.

66

A43857

PLUNGER

PLUNGER ASSY.

1шт.

67

A41922

WASHER

WASHER - retainer (53/64 x 1-3/8 x 1/32")

1шт.

68

A42308

BOOT

BOOT - plunger

1шт.

69

A43380

BACK-UP RING

RETAINER - spring (w/1-13/64" hole)

1шт.

70

A41242

SPRING

SPRING - shift lever (1-3/8" O.D. x 2-25/32" long)

1шт.

71

A43419

SEAT

RETAINER - spring (w/13/32" hole)

1шт.

72

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger spring retainer #37, Ext

1шт.

73

A43856

NUT

NUT - plunger rod guide adjusting

1шт.

75

A43846

SOLENOID

SOLENOID ASSY. - (See Page 69)

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - solenoid mounting (1/4 x 23/ 64" N.C. hex.)

4шт.

Выбрано товаров: 37
