Запчасти Case IH 1170 (054) - A64907 STARTER, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

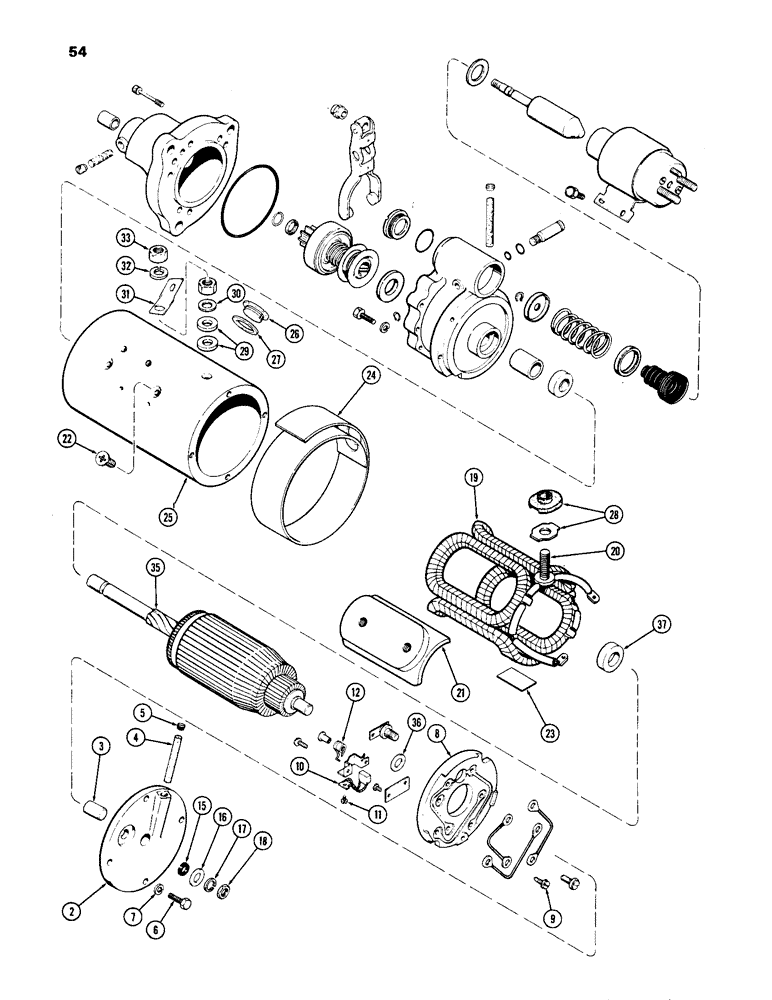

Схема запчастей Case IH 1170 - (054) - A64907 STARTER, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
27
29
6
23
17
24
36
20
31
35
30
4
21
18
22
7
3
33
9
26
25
32
2
8
37
11
12
5
19
10
15
28
16

Артикул

Название

Примечание

Количество

A64907

ELECTRIC MOTOR

STARTER ASSY. - (Delco #1113399), Includes: Ref. 2 - 76

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

2

A43849

FRAME

FRAME ASSY. - commutator end, Includes: Ref. 3 - 5

1шт.

3

A42323

BUSHING

BUSHING - frame, 35/64 x 11/16 x 57/64"

1шт.

4

R15023

WICK

WICK - oil

1шт.

5

221-1849

PLUG

PLUG - 1/8" hex. sckt. hd., pipe

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

A43850

PLATE

BRUSH PLATE ASSY.

1шт.

9

A43847

SCREW,3/8" - 32 x 1/2"

SCREW - brush plate attaching, w/washer

1шт.

10

A40891

BRUSH, COMMUTATOR

BRUSH BRUSH ASSY.

4шт.

11

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - brush plate attaching, #8 x 5/16" rd. hd., mach., Includes: Ref. 12

4шт.

12

A42333

SPRING

SPRING - brush

4шт.

15

A42085

BUSHING

BUSHING- commutator end terminal

1шт.

16

R15013

WASHER

WASHER - 3/8 x 11/16 x 1/16"

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

19

A42332

COIL

FIELD COIL ASSY. - (4 coils), Includes: Ref. 20

1шт.

20

A40896

STUD

STUD - terminal, 1/2" N.C. x 2-1/8" special

1шт.

21

R15115

SHOE

SHOE - pole

4шт.

22

A42127

SCREW,3/8" - 24 x 0.20"

SCREW - pole shoe, 3/8 x 3/16" N.F. pan hd., phillips

8шт.

23

A42327

INSULATOR

INSULATION - field coil, 1-13/16 x 2 x 1/64"

2шт.

24

A43848

INSULATOR

INSULATOR - field coil

1шт.

25

NSS

NOT SOLD SEPARAT

FRAME - field

1шт.

26

R21587

PLUG

PLUG - inspection, commutator end

1шт.

27

A41924

GASKET

GASKET - plug, 1-23/64 x 1-9/16 x 3/32"

1шт.

28

A41925

BUSHING

BUSHING PACKAGE - field terminal stud

1шт.

29

D30005

INSULATOR

WASHER - insulator, terminal stud, 33/64 x 1 x 3/32

2шт.

30

A42404

X

WASHER - 33/64 x 7/8 x 1/32

1шт.

31

A42343

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.

32

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

1шт.

33

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

2шт.

35

A43855

ARMATURE

ARMATURE

1шт.

36

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - armature spacer, commutator end

1шт.

37

A43853

BUSHING

SPACER - armature, drive end

1шт.

Выбрано товаров: 36
