Запчасти Case IH 1170 (053A) - A59217 STARTER, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

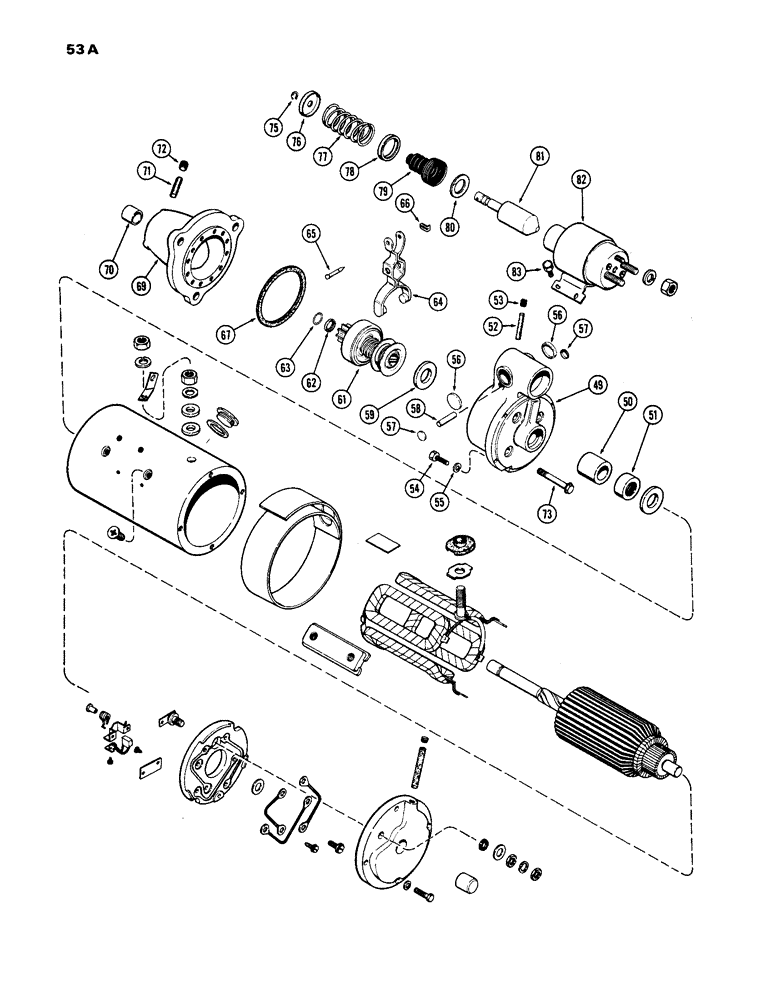

Схема запчастей Case IH 1170 - (053A) - A59217 STARTER, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
56
57
54
75
58
76
57
78
63
73
72
56
71
50
65
66
83
79
61
82
59
62
55
49
67
80
77
53
52
69
70
81
64
51

Артикул

Название

Примечание

Количество

A59217

STARTER MOTOR

STARTER ASSY. - (Continued from Figure 52)

1шт.

49

A42325

HOUSING ASSY. - shift lever, Includes: Ref. 50 - 53

1шт.

50

A40944

BUSHING

- lever housing

1шт.

51

A25407

OIL SEAL

OIL SEAL - lever housing

1шт.

52

A41417

WICK

- oil

1шт.

53

221-1849

PLUG

- oil wick hold

1шт.

54

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

55

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

56

A42013

PLUG

- 1-3/16" expansion

2шт.

57

A42064

PLUG

- 5/8" expansion

2шт.

58

A25402

STUD

SHAFT - shift lever

1шт.

59

R15043

WASHER

- brake, lever housing, 25/32 x 2 x 3/32"

1шт.

61

A42331

DRIVE

ASSY. - starter

1шт.

62

R15049

COLLAR

- pinion stop

1шт.

63

R15048

RING

- pinion stop retainer

1шт.

64

A25398

LEVER

- shift

1шт.

65

A25400

PIN

- shift lever to solenoid plunger

1шт.

66

A25406

OIL SEAL

RETAINER - shift lever pin

1шт.

67

A41508

GASKET

- lever housing to drive housing

1шт.

69

A25347

HOUSING ASSY. - drive end, Includes: Ref. 70 - 72

1шт.

70

A40868

BUSHING

- drive housing

1шт.

71

R15023

WICK

- oil

1шт.

72

221-1041

PLUG

- oil wick hole

1шт.

73

A42012

BOLT (SPREADER),5/16" x 2 13/32"

SCREW ASSY. - lever housing to drive housing

4шт.

75

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

76

R21571

RETAINER

- spring, w/13/32" hole

1шт.

77

A41242

SPRING

- plunger return

1шт.

78

R21572

RETAINER

- spring, w/1-13/64" hole

1шт.

79

A42308

BOOT

- solenoid

1шт.

80

A42008

WASHER

- retainer, 31/32 x 1-7/16 x 1/32"

1шт.

81

A25394

PLUNGER

- solenoid

1шт.

82

A42326

SOLENOID

SOLENIOD ASSY. - (See Figure 56)

1шт.

83

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid attaching

4шт.

Выбрано товаров: 33
