Запчасти Case IH 1170 (051A) - PYROMETER ATTACHMENT (04) - ELECTRICAL SYSTEMS

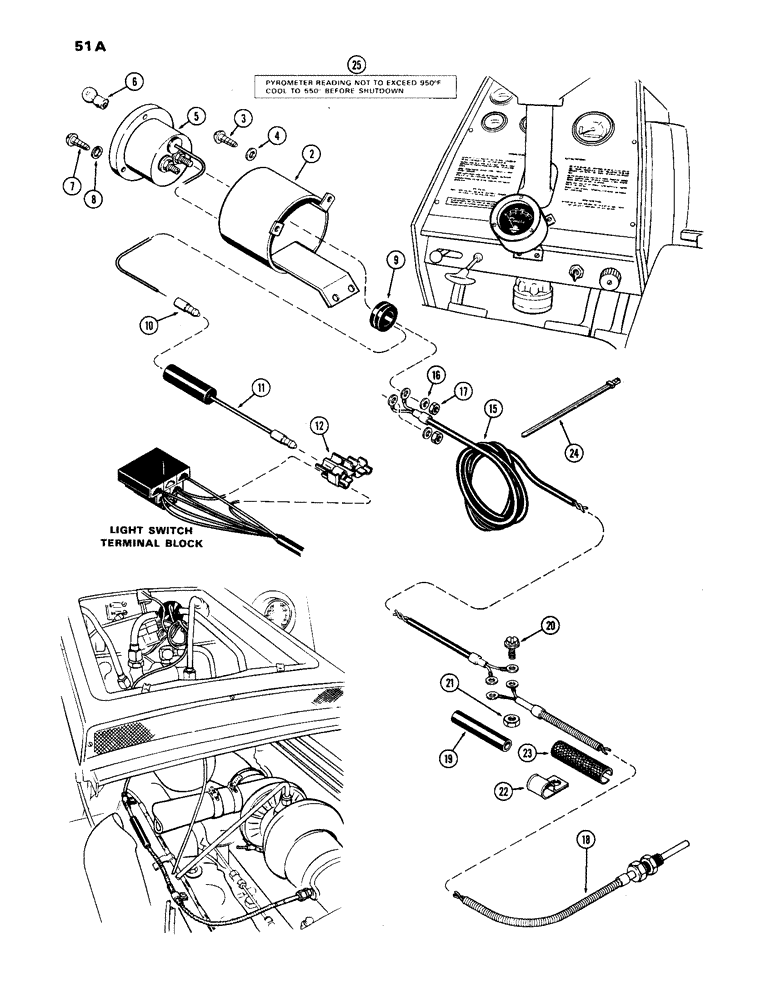

Схема запчастей Case IH 1170 - (051A) - PYROMETER ATTACHMENT (04) - ELECTRICAL SYSTEMS
6
5
7
20
4
18
24
9
25
22
17
16
21
12
11
19
3
2
15
23
8
10

Артикул

Название

Примечание

Количество

A62554

ELECTRICAL GAUGE

ATTACHMENT - pyrometer, Includes: Ref. 2 - 25

1шт.

2

A62558

TUBE

- pyrometer mounting

1шт.

3

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - #8-32 x 1/2" self tapping

4шт.

4

195-510

WASHER,#8

- 3/16 x 7/16 x 1/16"

4шт.

5

A76278

ELECTRICAL GAUGE

PYROMETER - engine exhaust

1шт.

173-249

SCREW

- #6-32 x 3/4" rd. hd. mach.

3шт.

6

T29381

BULB

- pyrometer, 12 volt

1шт.

7

187-1104

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - #6-32 x 3/4" self tapping

3шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

3шт.

9

A27338

GROMMET

- wire harness

1шт.

10

L10051

TERMINAL CONNECTOR,Male

TERMINAL - light wire

1шт.

11

A62555

ELECTRICAL WIRE

WIRE - pyrometer light

1шт.

12

A62556

CONNECTOR, ELEC

CONNECTOR - light wire bullet

1шт.

15

T39218

HARNESS

- wire

1шт.

16

195-15

WASHER,#12

- 1/4 x 1/2 x 1/16"

2шт.

17

129-502

NUT,1/4"-28, Brass

2шт.

18

T39217

ELECTRICAL WIRE

THERMOCOUPLE - pyrometer

1шт.

19

T39219

BOOT

- thermocouple connector

1шт.

20

175-57

SCREW,Sl Truss Hd, #6 - 32 x 1/4"

- #6-32 x 1/4" Truss head

2шт.

21

86625057

NUT,#10-24, GB

NUT - #6 N.C. self locking

2шт.

22

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- lead wire

2шт.

23

A12458

SLEEVE

- wire harness

2шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - wire harness

1шт.

25

321-1778

DECAL

- pyrometer temperatures

1шт.

Выбрано товаров: 24
