Запчасти Case IH 1170 (046) - ELECTRICAL EQUIPMENT AND WIRING, (451B) DIESEL ENGINE, TRANS. HARNESS (04) - ELECTRICAL SYSTEMS

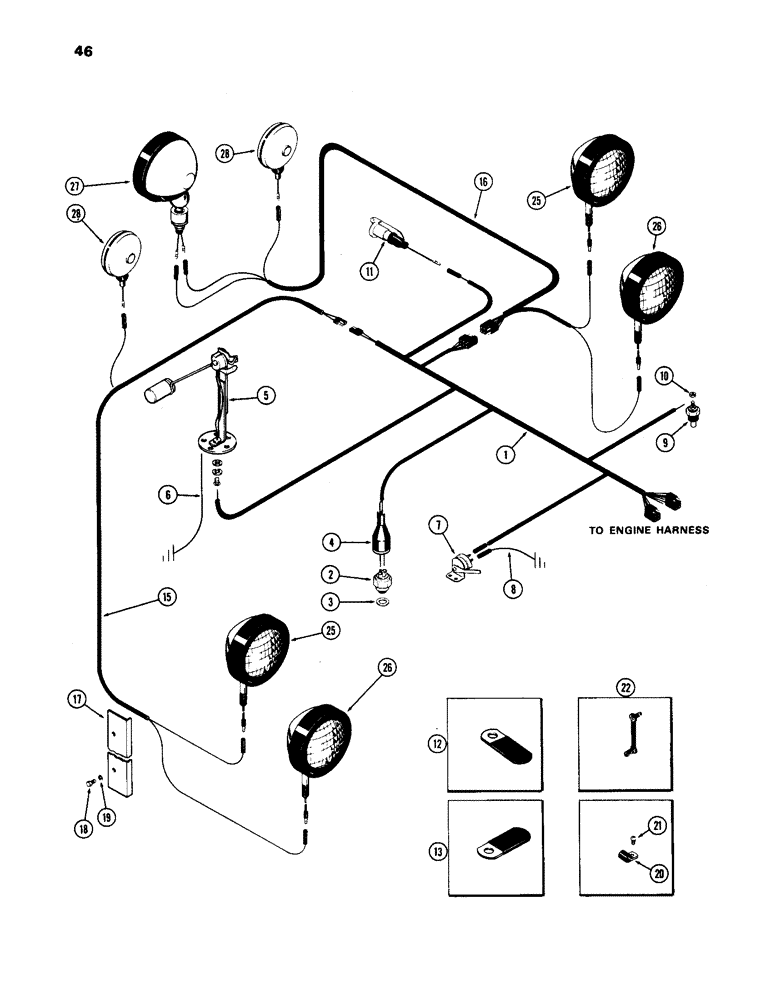

Схема запчастей Case IH 1170 - (046) - ELECTRICAL EQUIPMENT AND WIRING, (451B) DIESEL ENGINE, TRANS. HARNESS (04) - ELECTRICAL SYSTEMS
8
22
19
10
9
15
16
5
1
21
18
3
12
11
26
28
26
25
6
17
13
2
7
25
27
20
4
28

Артикул

Название

Примечание

Количество

1

A62413

HARNESS

- trans. wire (1st used trac. ser. no. 8675001)

1шт.

1

A61132

HARNESS - trans. wire (used prior to trac. ser. no. 8675001)

1шт.

2

A20990

SWITCH

- safety, neutral start

1шт.

3

G49401

SHIM,.005" Thk

Neutral start switch .005" Thk

1шт.

3

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

4

A61028

BOOT

- neutral start switch

1шт.

5

A62092

UNIT

- fuel sending

1шт.

6

A59710

ELECTRICAL WIRE

WIRE - fuel guage sender ground

1шт.

7

A33977

SWITCH

- hand brake warning

1шт.

8

A59711

ELECTRICAL WIRE

WIRE - hand brake switch ground

1шт.

9

A21462

SENDER UNIT

UNIT - transmission temperature sending

1шт.

10

129-661

NUT

- #10 N.F. hex., brass

1шт.

11

A8170

SOCKET

- auxiliary outlet (See Page 55)

1шт.

12

A37179

CLIP

- transmission sending wire

1шт.

13

A22880

CLIP

- trans. wire harness & fuel sending unit

1шт.

15

A62412

HARNESS

- fender wire, R.H. (used w/out cab) (1st used trac. ser. no. 8675001)

1шт.

15

A62414

HARNESS

- fender wire, R.H. (used w/cab) (1st used trac. ser. no. 8675001)

1шт.

15

A59708

HARNESS

- fender wire, R.H. (used w/ or w/out cab) (used prior to trac. ser. no. 8675001)

1шт.

16

A59709

HARNESS

- fender wire, L.H. (used w/o cab)

1шт.

16

A61146

HARNESS

- fender wire, L.H. (used w/cab)

1шт.

17

A59720

SHIELD - fender wire harness, L.H. (w/12"fender)

1шт.

17

A59721

SHIELD - fender wire harness, R.H. (w/12" fender)

1шт.

17

A60893

GUARD

SHIELD - fender wire harness, R.H. & L.H. (w/24" fender)

1шт.

18

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- fender wires to fender

1шт.

21

187-1009

BOLT

SCREW - 1/4 x 3/8" hex. hd., self tapping

1шт.

22

A62547

CLAMP

- fender wires

1шт.

25

A59701

LAMP

- front head driving (See Figure 62)

2шт.

26

A59724

HEADLAMP

LAMP - front cultivator (See Figure 63A)(For 12" fender)

2шт.

26

A59723

LAMP

- front cultivator (See Figure 63A)(for 24" fender)

2шт.

27

A59703

LAMP

- rear flood & tail (See Figure 64)

1шт.

28

A34853

LAMP

- flasher (See Figure 60)

2шт.

Выбрано товаров: 33
